CS-W124C-R10

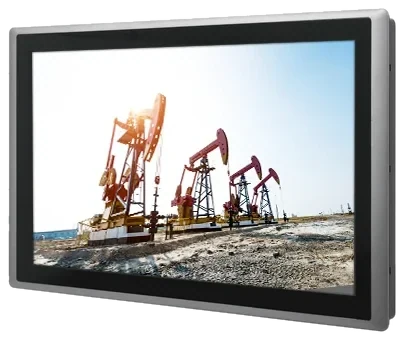

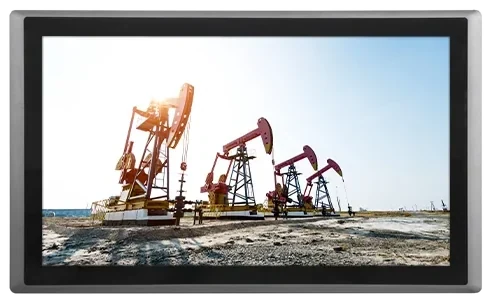

24-inch 1500 nits ultra-high brightness industrial display module, wide operating temperature range -20°C to 70°C, IP65 front panel dust and water resistance with ultra-durable die-cast aluminum bezel design, supports CDS technology for easy maintenance and upgrades.
- Ultra-high brightness of 1,500 nits, clearly readable under direct sunlight.
- IP65 compliant front panel design for dust and water protection, rugged one-piece die-cast aluminum bezel.
- Durable operation across a wide temperature range from -20°C to 70°C.
- Integrated CDS (Convertible Display System) technology allows easy configuration, upgrades, and maintenance.
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 605 x 373 x 63.2 |
| Weight (kg) | 6.64 |
| IP protection rating | IP65 (Front Panel) |
| Certifications | UL, cUL, CB, IEC, EN 62368-1, CE, UKCA, FCC Class A, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN 61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 24" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 1500 |
| Touch | Projected Capacitive |
| Frame type | 16:9 |
| Front IP rating | IP65 |
