CS-W115FHC-R20

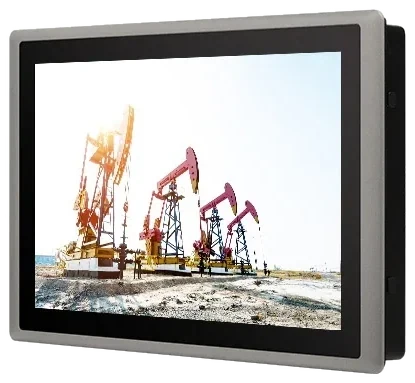

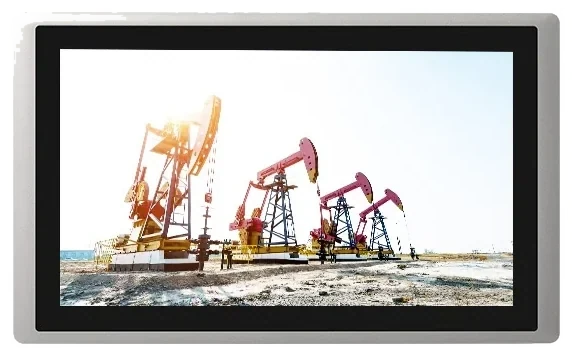

15.6-inch 1200 nits ultra-bright industrial display module, IP65 dustproof and waterproof front panel, heavy-duty die-cast aluminum enclosure, supports wide operating temperature range -20°C to 70°C and CDS technology for easy maintenance and upgrades.
- IP65 dustproof and waterproof front panel, flat ultra-durable die-cast aluminum bezel for industrial environments
- Wide operating temperature range from -20°C to 70°C
- 15.6-inch Full HD (1920x1080) display with ultra-high brightness of 1,200 nits for clear outdoor sunlight readability
- Supports Projected Capacitive Touch and Wet Touch Tracking features
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 420 x 254 x 66.2 |
| Weight (kg) | 3.58 |
| IP protection rating | IP65 (Front Panel) |
| Certifications | UL, cUL, CB, IEC 62368-1, EN 62368-1, CE, UKCA, FCC, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 15.6" |
|---|---|
| Resolution | 1920x1080 |
| Brightness (nit) | 1200 |
| Touch | Projected Capacitive |
| Frame type | 16:9 |
| Front IP rating | IP65 |
