CS-115C-R11

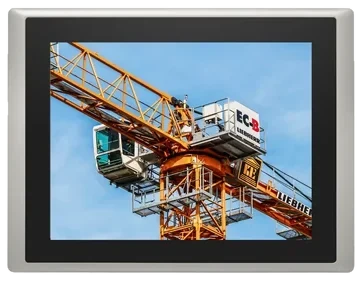

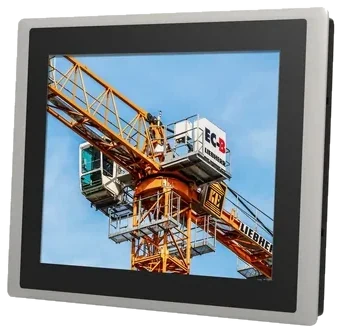

15-inch industrial display module featuring IP65 front panel protection, rugged die-cast aluminum unibody bezel design, stable operation in a wide temperature range of -20°C to 70°C. Delivers ultra-high brightness of 1,800 nits dedicated to outdoor or high ambient light environments, supporting Convertible Display System (CDS) technology for flexible pairing and upgrades.
- 15” TFT-LCD display with ultra-high brightness of 1,800 nits, XGA resolution 1024 x 768
- Projected Capacitive multi-touch supporting Wet Touch Tracking
- IP65 flat front panel for water and dust protection, high-strength die-cast aluminum bezel
- Wide operating temperature range from -20°C to 70°C
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 408 x 312.4 x 59.2 |
| Weight (kg) | 4.36 |
| IP protection rating | IP65 (Front Panel) |
| Certifications | UL, cUL, CB, IEC, EN 62368-1, CE, UKCA, FCC Class A, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024 x 768 |
| Brightness (nit) | 1800 |
| Touch | Projected Capacitive |
| Frame type | Flat Rugged Aluminum Die-casting Bezel |
| Front IP rating | IP65 |
