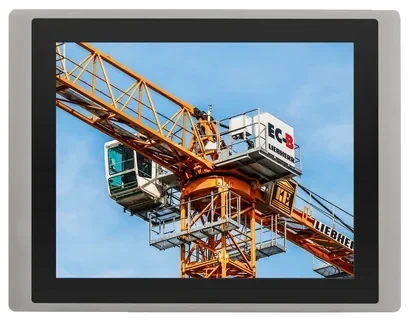

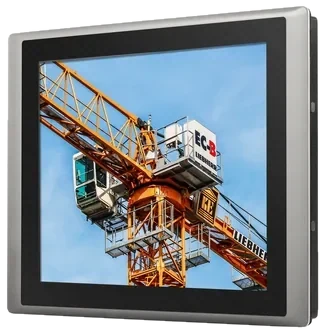

CS-119C-R11
19-inch sunlight readable ultra-high brightness 1,600 nits industrial display module, IP65 front water/dust protection rating, wide operating temperature range from -20°C to 70°C. Ultra-durable flat bezel die-cast aluminum frame design, supporting Convertible Display System (CDS) technology for flexible upgrades and maintenance.
- Ultra-high brightness 1,600 nits for clear display under direct outdoor sunlight
- Wide operating temperature range from -20°C to 70°C to withstand harsh environments
- Flat front panel meeting IP65 dust and water protection standard
- Durable high-pressure aluminum die-casting bezel frame
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 510 x 389.3 x 63.2 |
| Weight (kg) | 6.96 |
| IP protection rating | IP65 |
| Certifications | UL, cUL, CB, IEC, EN 62368-1, CE, UKCA, FCC Class A, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 19" |
|---|---|
| Resolution | 1280 x 1024 |
| Brightness (nit) | 1600 |
| Touch | Projected Capacitive |
| Frame type | 5:4 |
| Front IP rating | IP65 |
