CS-110HC-R12

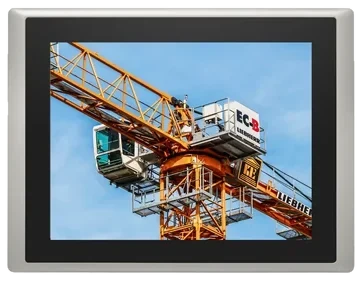

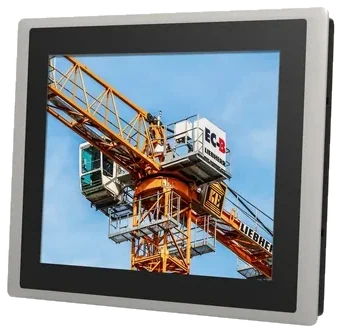

10.4-inch ultra-bright 1500 nits industrial display module, IP65 front panel protection against water and dust, wide operating temperature range -30°C to 70°C, ultra-durable extruded aluminum bezel, supporting CDS technology for easy configuration and upgrades.
- Ultra-wide operating temperature range from -30°C to 70°C suitable for harsh environments
- IP65 front panel protection against dust and water
- Solid flat die-cast aluminum bezel with high impact resistance
- Supports CDS (Convertible Display System) technology for easy configuration, upgrades, and maintenance
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -30 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 295 x 227.3 x 56.2 |
| Weight (kg) | 2.24 |
| IP protection rating | IP 65 (Front Panel) |
| Certifications | UL, cUL, CB, IEC, EN 62368-1, CE, UKCA, FCC Class A, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 10.4" |
|---|---|
| Resolution | 1024 x 768 |
| Brightness (nit) | 1500 |
| Touch | Projected Capacitive |
| Frame type | Flat Rugged Aluminum Die-casting Bezel |
| Front IP rating | IP 65 |
