CS-117C-R11

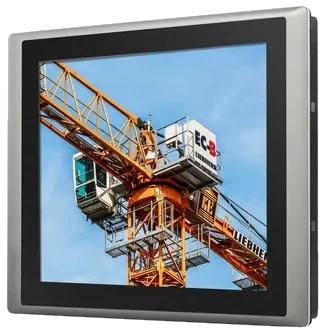

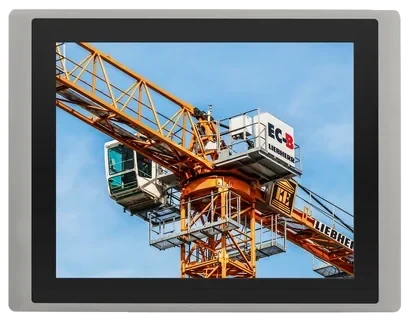

17-inch industrial display module with ultra-high brightness of 1500 nits, IP65 dust and waterproof front panel rating, durable operation within a temperature range of -20°C to 70°C, die-cast aluminum unibody enclosure, and supporting flexible CDS convertible technology.
- Wide operating temperature range from -20°C to 70°C, suitable for harsh environments
- Flat die-cast aluminum unibody front bezel, IP65 dust and water resistance standard
- Ultra-high brightness of 1500 nits for clear display under direct sunlight
- Supports CDS (Convertible Display System) technology for easy configuration and upgrades
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (With Industrial Grade Peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 450 x 350 x 63.2 |
| Weight (kg) | 5.64 |
| IP protection rating | IP65 Front Panel |
| Certifications | UL, cUL, CB, IEC, EN 62368-1, CE, UKCA, FCC Class A, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 17" |
|---|---|
| Resolution | 1280 x 1024 |
| Brightness (nit) | 1500 |
| Touch | Projected Capacitive |
| Frame type | Flat Rugged Aluminum Die-casting Bezel |
| Front IP rating | IP65 |
