CV-W124R/M1001

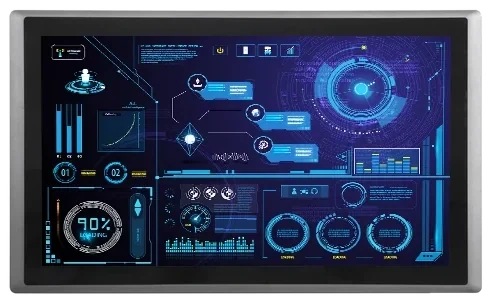

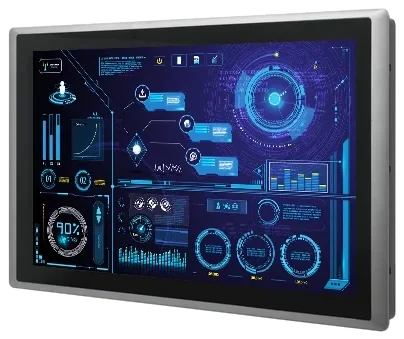

24-inch Full HD industrial touch display with a wide 9~48VDC power input, -5°C to 60°C operating temperature range, and an IP65-rated water/dust-resistant front panel. Sturdy die-cast aluminum frame supporting Convertible Display System (CDS) technology and Panel, VESA, and Rack mounting.
- Wide 9~48VDC power input range
- IP65-rated dust and water resistant front panel
- Aluminum die-casting front frame for durability
- Supports Convertible Display System (CDS) technology for easy maintenance and upgrade
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -5 ~ 60 °C (Ambient with air flow (with Industrial Grade Peripherals)) |
|---|---|
| Power input | 9~48VDC |
| Power connector | 3-pin Terminal Block Connector |
| Mounting | Panel Mount, VESA Mount, Rack Mount |
| Dimensions (mm) | 605 x 373 x 73 |
| Weight (kg) | 8.04 |
| IP protection rating | IP65 Front Panel |
| Certifications | CE, FCC Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| COM | 1× |
|---|---|
| USB | 1× USB USB 2.0 |
| Display outputs | 1× VGA · 1× DVI-D · 1× DisplayPort |
Display
| Screen size | 24" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 300 |
| Touch | Resistive 5-wire Touch |
| Frame type | Aluminum Die-Casting Front Frame |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
|---|---|
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
