- 0~60°COperating temp
- IP65Ingress rating
- Fan-cooledCooling
- 9–48 VDCPower input
- 1COM ports

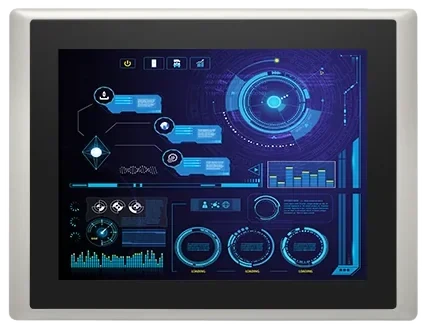

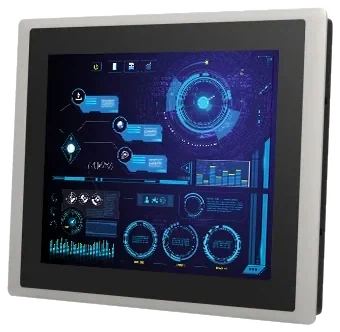

CV-115R/M1001
15-inch 4:3 industrial touch monitor with 5-wire resistive touch technology, supporting an operating temperature range from 0°C to 60°C, 9-48V DC power, and an IP65-rated front panel against dust and water. Sturdy aluminum die-cast frame, compatible with flexible Convertible Display System (CDS) technology for industrial applications.
- IP65-rated front panel for effective dust and water protection
- Wide 9V to 48V DC power input range via a 3-pin terminal block
- Flexible installation via Panel Mount, VESA Mount, or Rack Mount
- Sturdy, durable aluminum die-cast front frame
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (Ambient with air flow, with Industrial Grade Peripherals) |
|---|---|
| Power input | 9~48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Panel Mount, VESA Mount, Rack Mount |
| Dimensions (mm) | 408 x 312.4 x 69 |
| Weight (kg) | 5.48 |
| IP protection rating | IP65 (Front Panel) |
| Certifications | CE, FCC Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| COM | 1× |
|---|---|
| USB | 1× USB 2.0 |
| Display outputs | 1× VGA · 1× DVI-D · 1× DisplayPort |
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024 x 768 |
| Brightness (nit) | 350 |
| Touch | Resistive 5-wire |
| Frame type | Aluminum Die-Casting |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
|---|---|
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
