CV-108R/M1001

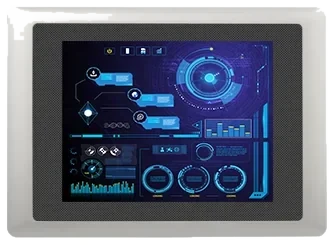

Màn hình công nghiệp 8.4 inch SVGA chuẩn IP65 mặt trước, dải nhiệt hoạt động -5°C đến 60°C, hỗ trợ nguồn DC 9~48V rộng rãi và công nghệ Convertible Display System (CDS) linh hoạt.
- Mặt trước đạt chuẩn chống bụi nước IP65 với khung nhôm đúc chịu lực chắc chắn
- Dải nhiệt độ hoạt động rộng -5°C đến 60°C cho môi trường công nghiệp
- Nguồn điện đầu vào rộng từ 9 đến 48 VDC
- Hỗ trợ công nghệ CDS (Convertible Display System) dễ dàng cấu hình và nâng cấp
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model CV-108R/M1001 within 4 working hours.
Industrial factors
| Operating temperature range | -5 ~ 60 °C (Ambient with air flow, with Industrial Grade Peripherals) |
|---|---|
| Power input | 9~48VDC |
| Power connector | 3-pin Terminal Block Connector |
| Mounting | Panel Mount, VESA Mount, Rack Mount |
| Dimensions (mm) | 262 x 186 x 66 |
| Weight (kg) | 2.74 |
| IP protection rating | IP65 Front Panel |
| Certifications | CE, FCC Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| COM | 1× Reserved for Resistive Touch |
|---|---|
| USB | 1× USB 2.0 |
| Display outputs | 1× VGA · 1× DVI-D · 1× DisplayPort |
Display
| Screen size | 8.4" |
|---|---|
| Resolution | 800 x 600 |
| Brightness (nit) | 400 |
| Touch | Resistive 5-wire Touch |
| Frame type | Die-Casting Flat Surface |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, wide temp(-30°C ~ +70°C) |
|---|---|
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
Other configurations in the CV-100/M1001 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
CV-108C/M1001 8.4″ CV-112HC/M1001 12.1″ CV-112HR/M1001 12.1″ CV-115C/M1001 15″ CV-115R/M1001 15″ CV-W115C/M1001 15.6″ CV-W115R/M1001 15.6″ CV-W124C/M1001 24″
