FPM-7151T-R3AE

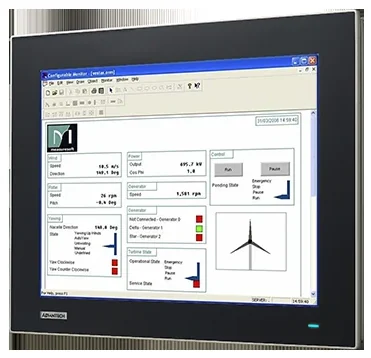

The Advantech FPM-7151T 15 inch XGA industrial touch display is designed for harsh environments with a wide -20 ~ 60 °C operating temperature range, an IP66-rated aluminum alloy front panel, 1 Grms vibration resistance, and diverse mounting methods. The device integrates a 400 cd/m² TFT LED display, an anti-glare 5-wire resistive touchscreen, and supports VGA, DisplayPort connectivity along with USB/RS-232 touch interfaces.
- Wide operating temperature range from -20 to 60 °C
- Die-cast aluminum alloy front panel rated IP66 for dust and water protection
- 1 Grms vibration resistance (5 ~ 500 Hz)
- Diverse mounting options: Stand, Wall, Panel, VESA 75x75 & 100x100 mm
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 60 °C |
|---|---|
| Power input | 24 VDC |
| Power connector | Phoenix Jack |
| Mounting | Stand, Wall, Panel, VESA 75 x 75mm, VESA 100 x 100mm |
| Dimensions (mm) | 383.2 x 307.3 x 48.2 |
| Weight (kg) | 4.2 |
| Vibration resistance | 5 ~ 500 Hz, 1 Grms — Operating, Random |
| IP protection rating | IP66 (Front panel) |
| Certifications | BSMI, CCC, CE, FCC Class A, UL |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| COM | 1× RS-232 |
|---|---|
| USB | 1× USB |
| Display outputs | 1× VGA · 1× DP |
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024 x 768 |
| Brightness (nit) | 400 |
| Touch | 5-wire analog resistive |
| Frame type | 4:3 |
| Front IP rating | IP66 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (11 items)
| 1702002600 | Power Cable US Plug 1.8 M |
|---|---|
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801-11 | Power Cable UK Plug 1.8 M |
| 1700000596-11 | Power Cable China/Australia Plug 1.8 M |
| PWR-247-DE | Adapter 100-240V 60W 24V 2.5A |
| FPM-200W-ADKE | Adapter bracket for FPM-200W |
| FPM-1000T-SMKE | Desktop Mounting kit for FPM series |
| PPC-174T-WL-MTE | Wall mount kit |
| PPC-ARM-A03 | A800B ARM VESA Standard (A-CLEVER) |
| PPC-STAND-A1E | Stand mounting kit |
| FPM-715-RMKE | FPM-715 Rack-Mount Kit |
