iTC-1121R

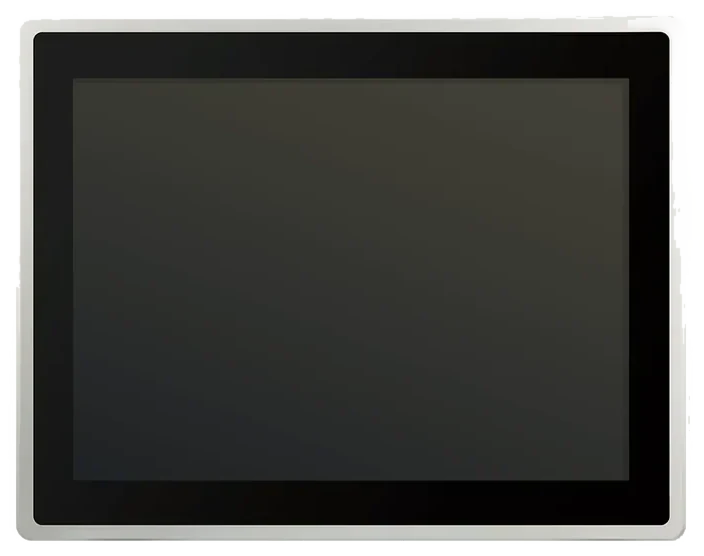

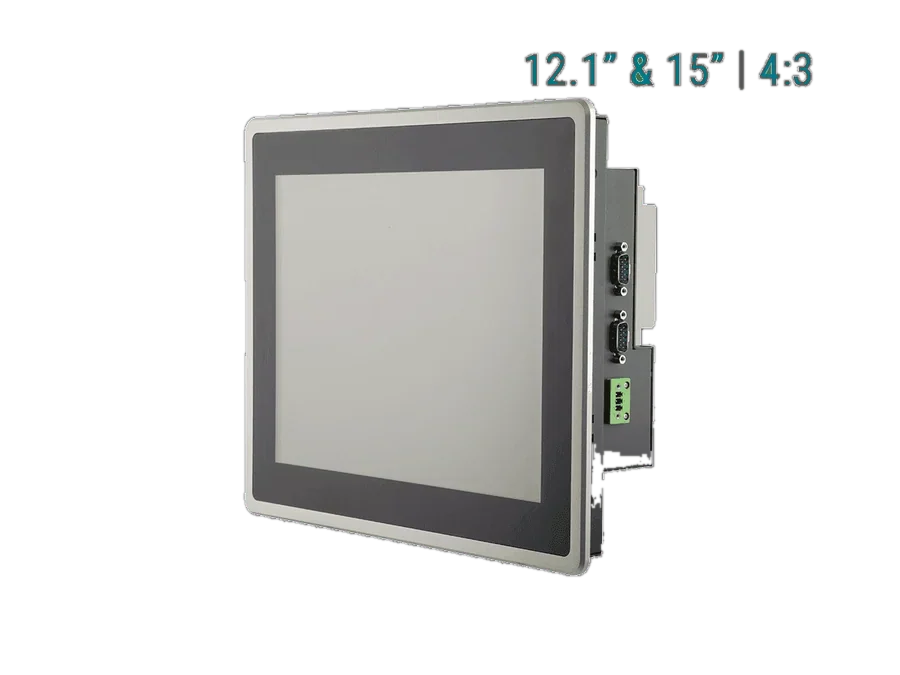

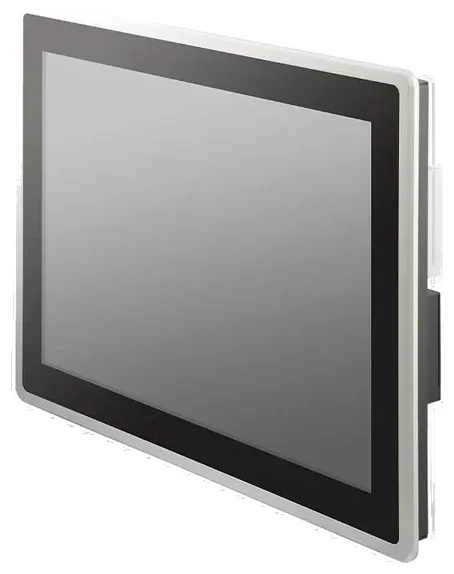

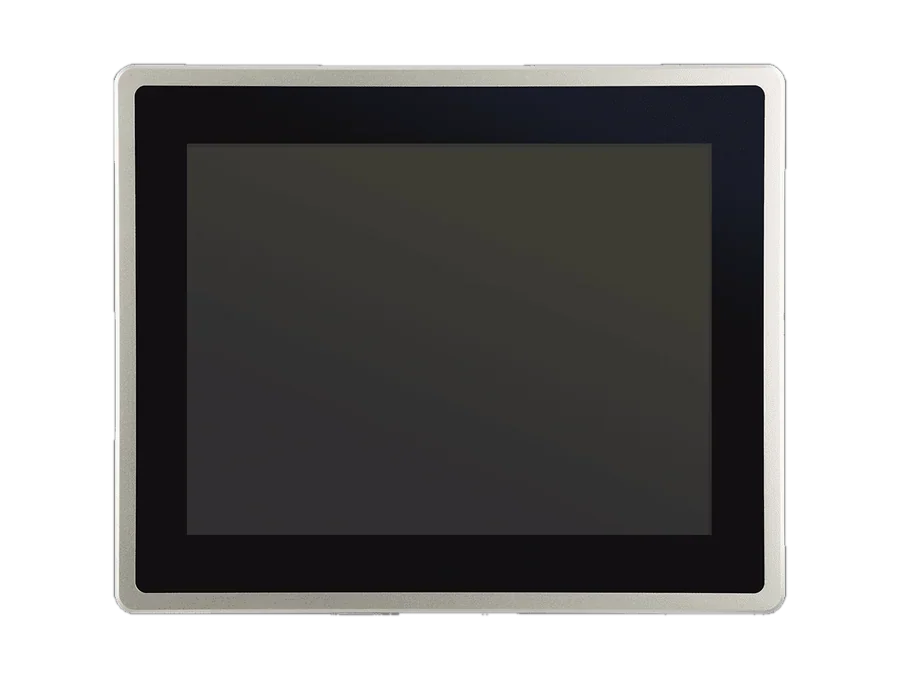

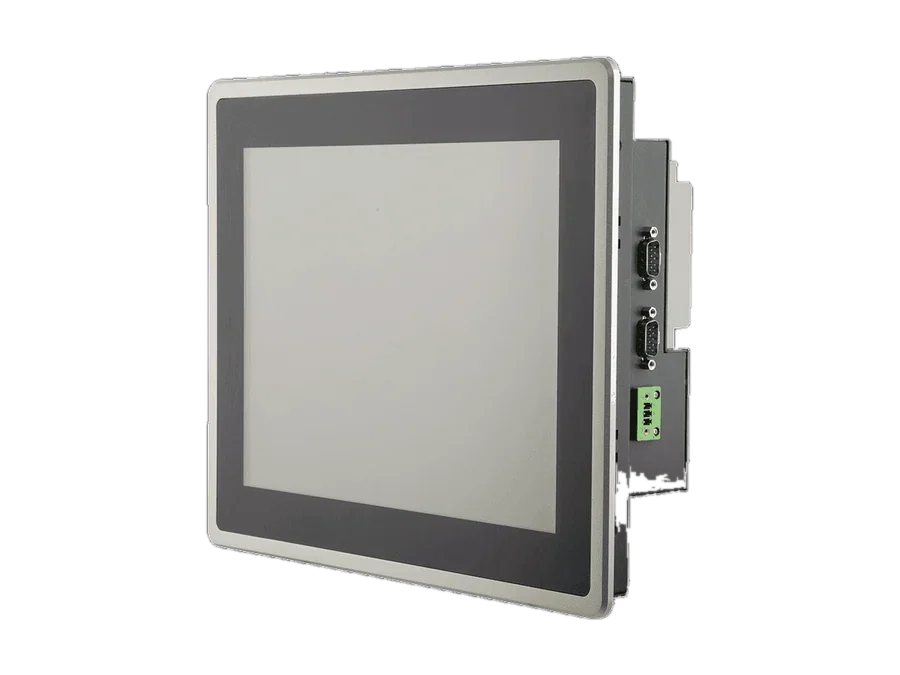

Fanless industrial panel PC, flat front panel rated IP65 water-resistant, aluminum bezel, wide-range 9~36V DC power input with reverse-polarity protection, operating temperature range -10~55°C. Equipped with an Intel® Celeron® J6413 quad-core CPU, DDR4 SO-DIMM RAM up to 32GB, a 12.1" XGA display at 500cd/m² brightness, supports 2.5GbE LAN and USB 3.2 Gen1.
- Fanless design, aluminum bezel, flat front panel rated IP65 water-resistant
- Wide-range 9~36V DC power input with reverse-polarity protection
- Stable operation across -10~55°C, industrial-grade shock and vibration resistance

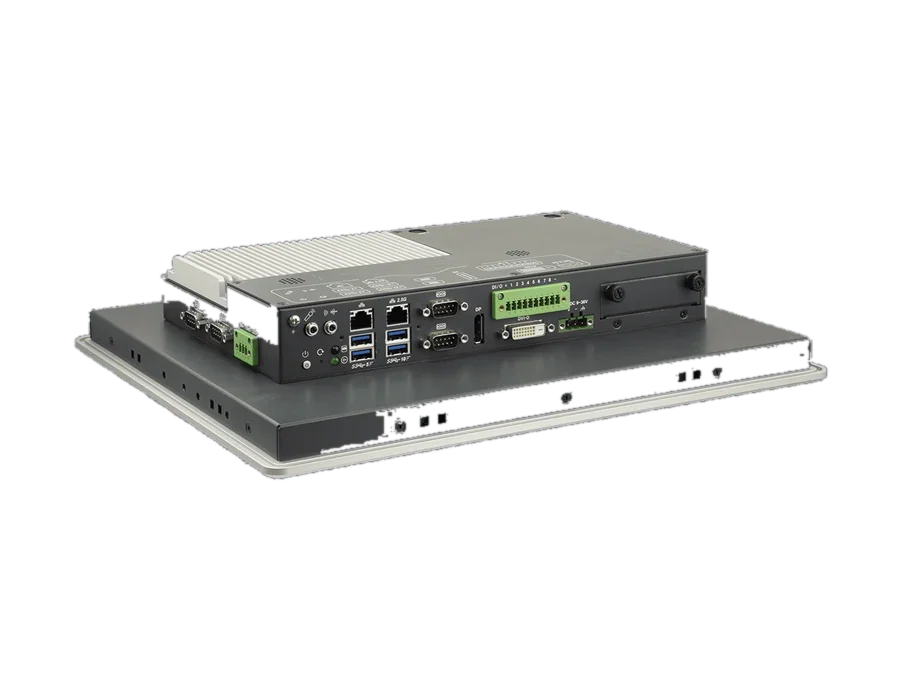

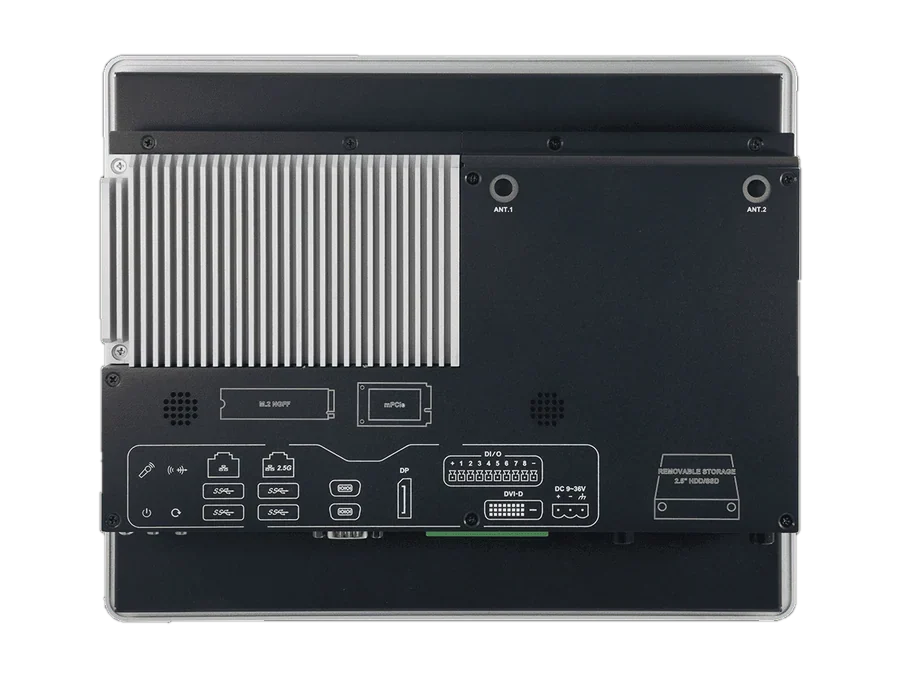

- Rich I/O: 4x COM, 2x LAN (including 2.5GbE), 4x USB 3.2 Gen1 (5Gbps), 8-bit digital I/O, dual display output via DisplayPort and DVI-D
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 55 °C |
|---|---|
| Power input | 9~36V |
| Power connector | 1 x 3-pin terminal block for remote control and PWR LED output |
| Mounting | Panel mount (clamps are provided), VESA-75/100 mount (optional) |
| Dimensions (mm) | 315 x 260 x 68.8 |
| Weight (kg) | 3.6 |
| Vibration resistance | 5~500Hz, 1Grms X,Y,Z axis — with SSD |
| IP protection rating | IP65 (flush front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel® Celeron® J6413 Quad-Core™ Processor 1.80GHz |
|---|---|
| RAM | DDR4 SO-DIMM, 3200MHz, 260-pin (4GB pre-installed) · 1 slots · up to 32GB |
| Storage | M.2 M-key 2242/2280 (SATA III only) · 2.5" SSD/HDD tray |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS232/422/485 (DB-9) · 2× RS232 (DB-9) |
|---|---|
| LAN | 1× GbE Intel® i210 / i211AT controller · 1× 2.5GbE Intel® 225LM controller |
| USB | 4× USB USB 3.2 Gen1 (5Gbps) Type-A |
| Display outputs | 1× DVI-D · 1× DisplayPort 1.4 |
| Expansion | 1× Mini PCIe · 8× Digital I/O |
Display
| Screen size | 12.1" |
|---|---|
| Resolution | 1024 x 768 XGA |
| Brightness (nit) | 500 |
| Touch | Flat 5-wire Analog Resistive |
| Frame type | Aluminum front bezel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| PAC-60W6A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| VMB-1121 | iTC-1121R VESA-mount bracket kit, w/ 75x75mm & 100x100mm VESA supports |
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB |
| 64GB M.2 SSD | M.2 M-key 2242/2280, 64GB, SATA3.0 |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| ADK-11X | iTC-11xx series audio kit |
| SCK-722C | Assembly kit for SiP-41B/42B (installable only with VMB-1121 Mounting Bracket) |
