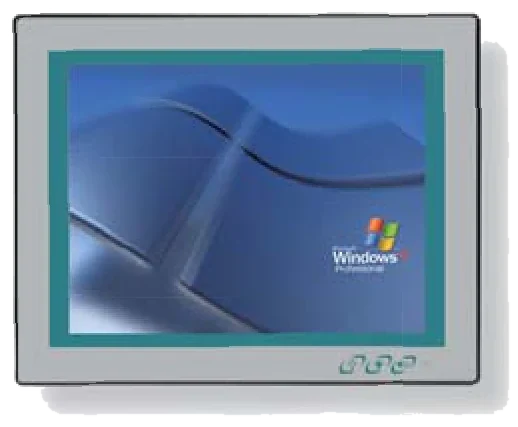

TOKIN-6123-827E
12.1-inch fanless industrial Panel PC, flat front IP65-rated, withstands -20~60°C, 2Grms vibration resistance, wide DC 9~36V power input, modular low-cable design; uses an Intel Celeron 827E CPU.
- Modular design, low cable count, fanless
- 12.1-inch XGA 1024x768 LCD screen, LED backlight
- Flat front, IP65-rated
- Brightness adjustment button
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 60 °C |
|---|---|
| Mounting | Panel Mounting, VESA-75/100 |
| Dimensions (mm) | 325.86 x 77.0 x 258.86 |
| Weight (kg) | 5.9 |
| Vibration resistance | 5~500Hz, 2Grms Random (with CF/SSD) |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Celeron 827E |
|---|---|
| Chipset | Intel HM65 |
| RAM | DDR3 · 2 slots · up to 8GB |
| Storage | CFast (external access) · CFast (default) or 2.5" drive bay |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 2× RS-232 (DB9) · 2× RS-232/485 (DB9) (isolated) |
|---|---|
| LAN | 2× GbE (RJ-45) Intel 82583V, Intel 82579LM |
| USB | 4× USB USB 2.0 Type-A |
| Display outputs | 1× DVI-I |
| Expansion | 2× Mini-card · 1× PCI/PCIe |
Display
| Screen size | 12.1" |
|---|---|
| Resolution | 1024 x 768 (XGA) |
| Brightness (nit) | 500 |
| Touch | 5-wire Analog Resistive |
| Frame type | Panel-mounting chassis, aluminum bezel and SECC steel frame |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (5 items)
| 150GB SSD | Intel 2.5" 150GB SATAIII SSD kit |
|---|---|
| MM-3C-2G | 2GB DDR3-1333 SDRAM |
| MM-3C-4G | 4GB DDR3-1333 SDRAM |
| WiFi-AT2350 | Atheros AR9462 WiFi Module w/ 20cm & 30cm internal wiring |
| ANT-D11 | 2.4G/5G Dual-band WiFi Antenna |
Other configurations in the TOKIN-6100 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
See the whole TOKIN-6100 series and compare configurations →
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
