iTC-1101C

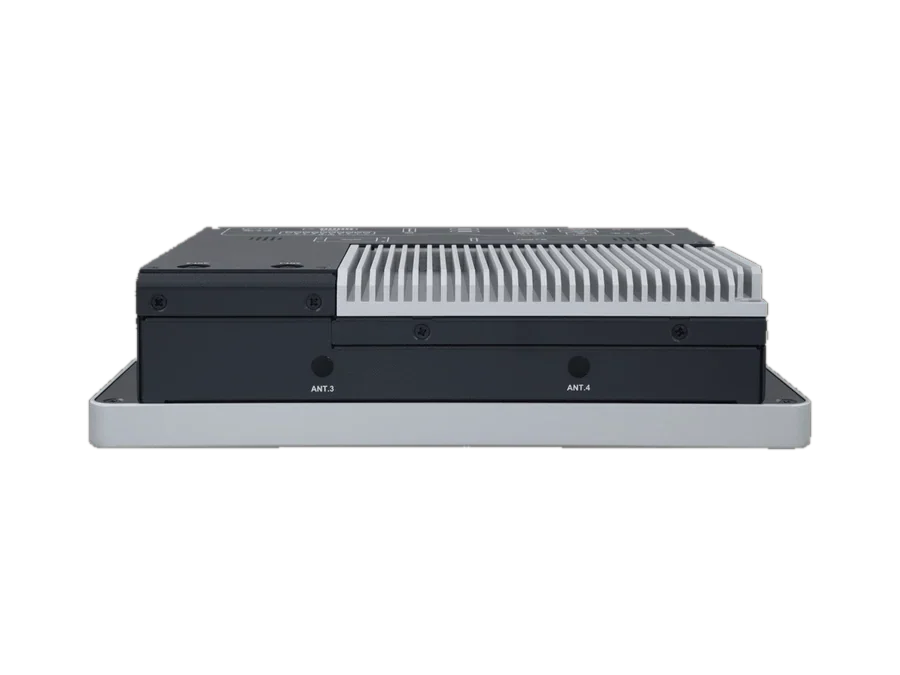

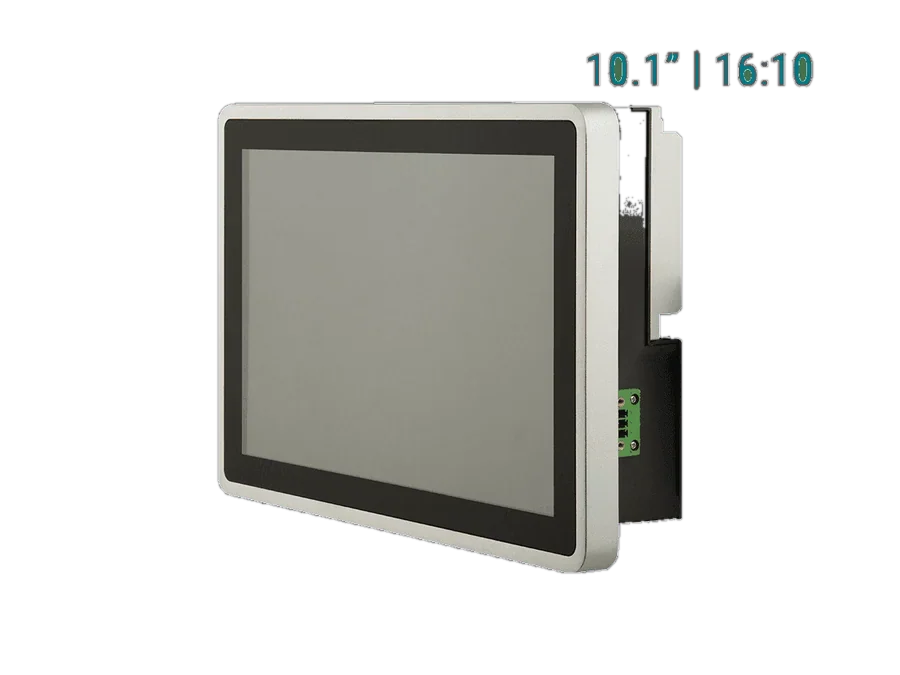

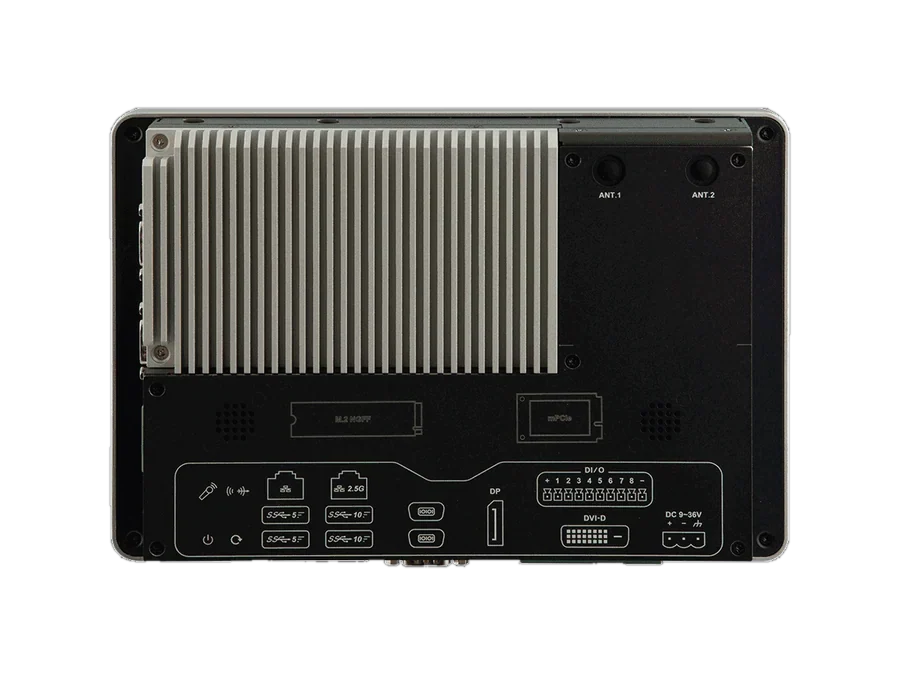

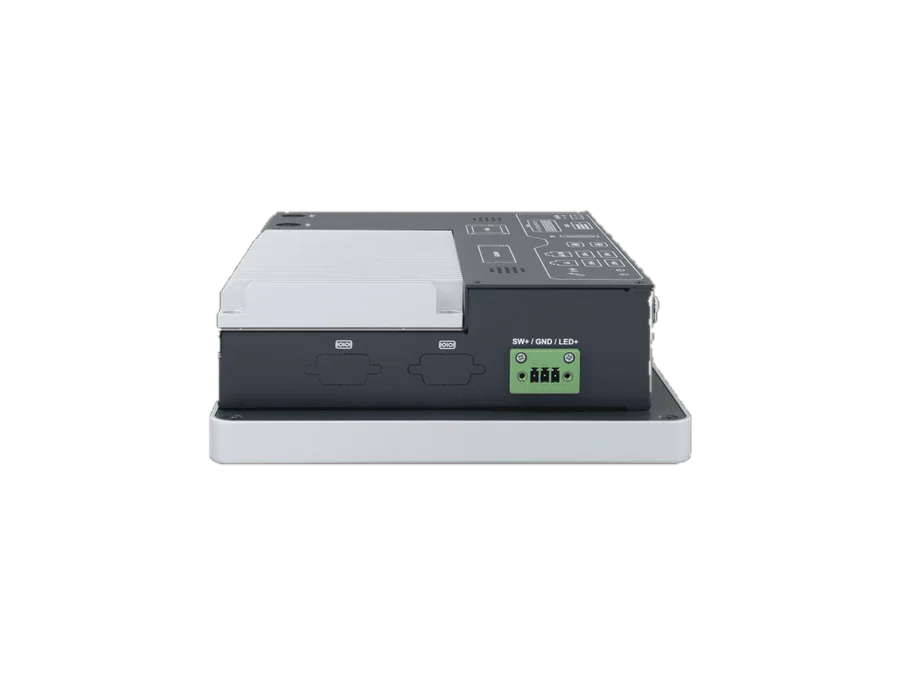

10.1-inch fanless industrial Panel PC, flat front panel rated IP65 waterproof, operating temperature -10~55°C, wide-range DC 9~36V power input with reverse polarity protection. Equipped with Intel Celeron J6413 CPU (Elkhart Lake), DDR4 RAM up to 32GB, supports 2.5GbE LAN and USB 3.2 Gen1 (5Gbps).
- Intel Celeron J6413 CPU (1.5M Cache, up to 3.00GHz)
- 10.1" display, 1280x800 WXGA resolution
- Fanless design, aluminum front bezel
- Flat front panel, IP65 waterproof rated
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 55 °C |
|---|---|
| Power input | 9~36V |
| Mounting | Panel mount (with clamps & brackets), VESA-75/100 (optional) |
| Dimensions (mm) | 255 x 175 x 62.8 |
| Weight (kg) | 2.35 |
| Vibration resistance | 5~500Hz, 1Grms X,Y,Z axis |
| IP protection rating | IP65 (flush front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Celeron J6413 Quad-Core |
|---|---|
| Socket | Soldered |
| RAM | DDR4 · 1 x 260-pin SO-DIMM, 3200MHz slots · up to 32GB |
| Storage | M.2 M-key 2242/2280 (SATA III only) |
| PCI/PCIe expansion slots | 0 |

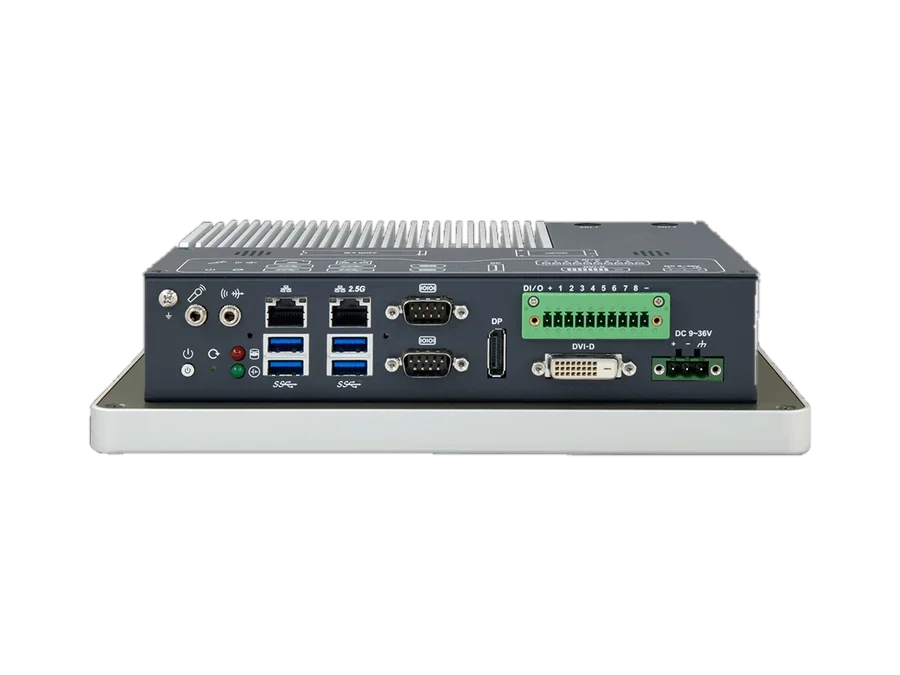

Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9), default; optional RS-232 via cable |
|---|---|
| LAN | 1× GbE Intel i211AT · 1× 2.5GbE Intel i225LM |
| USB | 4× USB USB-A 3.2 Gen1 (5Gbps) |
| Display outputs | 1× DVI-D · 1× DisplayPort 1.4 |
| Expansion | 1× Mini PCIe |

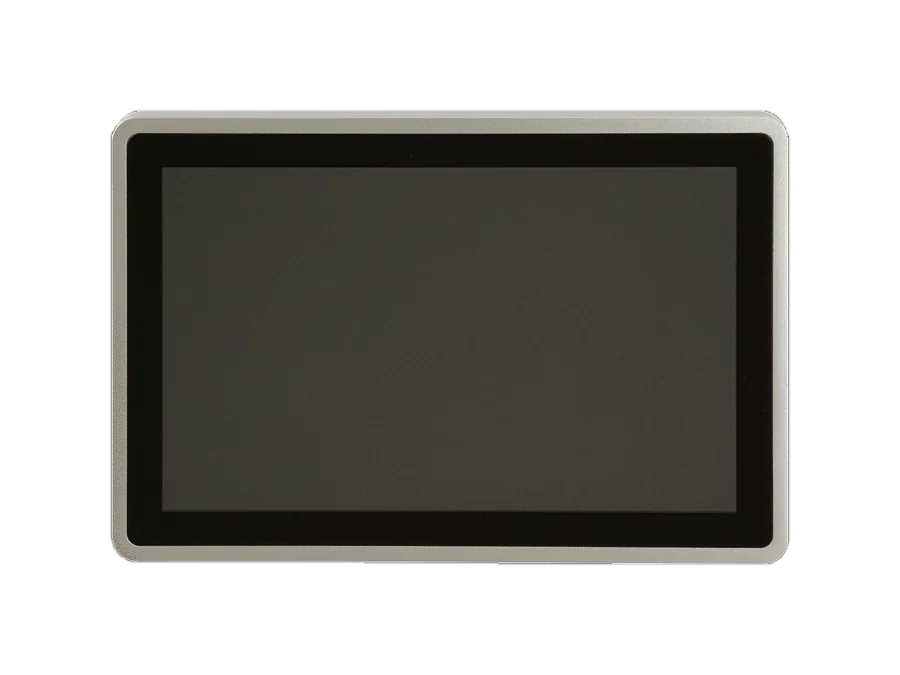

Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280 x 800 WXGA |
| Brightness (nit) | 350 |
| Touch | Projected Capacitive touch |
| Frame type | Aluminum front bezel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| PAC-60W6A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| VMB-1101 | iTC-1101C VESA-mount bracket kit, supports VESA 75x75mm & 100x100mm |
| 64GB M.2 SSD | M.2 M-key 2242/2280, 64GB, SATA3.0 |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| ADK-11X | iTC-11xx series audio kit |
| SCK-722C | Assembly kit for SiP-41B/42B (installs only with VMB-1101) |
