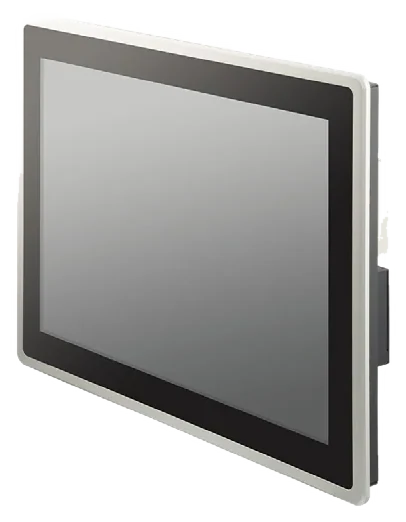

MaytinhcongnghiepiTC-1150R
Fanless industrial Panel PC, flat front panel rated IP65 waterproof, aluminum frame and steel housing, operating temperature -10~55°C, storage -20~70°C, wide-range DC 9~36V power input with reverse polarity protection, panel mount or optional VESA 75/100 mounting. 15-inch resistive touchscreen, Intel Celeron J6413 CPU, 2.5GbE + GbE LAN, rich I/O ports (4x COM/2x LAN/4x USB3.2).
- Flat front panel rated IP65 waterproof, sturdy aluminum frame + steel housing
- Operating temperature range -10~55°C, wide-range DC 9~36V power input with reverse polarity protection
- 15-inch 5-wire resistive touchscreen, 350cd/m² brightness, wide 88° viewing angle
- Intel Celeron J6413 Quad-Core CPU, dual GbE + 2.5GbE LAN, USB 3.2 Gen1 (5Gbps)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 55 °C |
|---|---|
| Power input | 9~36V |
| Mounting | Panel mount, VESA-75/100 (optional) |
| Dimensions (mm) | 367 x 299 x 68.8 |
| Weight (kg) | 4.5 |
| Vibration resistance | 5~500Hz, 1 Grms, X/Y/Z axis, with SSD |
| IP protection rating | IP65 (front, flush front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Celeron J6413 Quad-Core |
|---|---|
| Chipset | SoC Integrated |
| Socket | Soldered onboard |
| RAM | DDR4 SO-DIMM 3200MHz (4GB pre-installed) · 1 slots · up to 32GB |
| Storage | M.2 M-key 2242/2280 (SATA III only) · 2.5 inch SSD/HDD tray |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS232/422/485 · 2× RS232 |
|---|---|
| LAN | 1× 2.5GbE Intel i225LM · 1× 1GbE Intel i210/i211AT |
| USB | 4× USB USB 3.2 Gen1 (5Gbps) Type-A |
| Display outputs | 1× DVI-D · 1× DisplayPort 1.4 |
| Expansion | 1× Mini PCIe |
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness (nit) | 350 |
| Touch | true |
| Frame type | Aluminum front (aluminum front bezel) |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| PAC-60W6A-FSP-ES | AC/DC power adapter kit 12V/5A 60W |
|---|---|
| VMB-1150 | iTC-1150R VESA-mount bracket kit, supports VESA 75x75mm & 100x100mm |
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB |
| 64GB M.2 SSD | M.2 M-key 2242/2280, 64GB, SATA3.0 |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module, with 2 x 30cm cables |
| ANT-D11 | 1 x Antenna Wi-Fi Dual-band 2.4G/5G |
| ADK-11X | iTC-11xx series audio kit |
| SCK-722C | Assembly kit for SiP-41B/42B (installs only with VMB-1150 bracket) |
