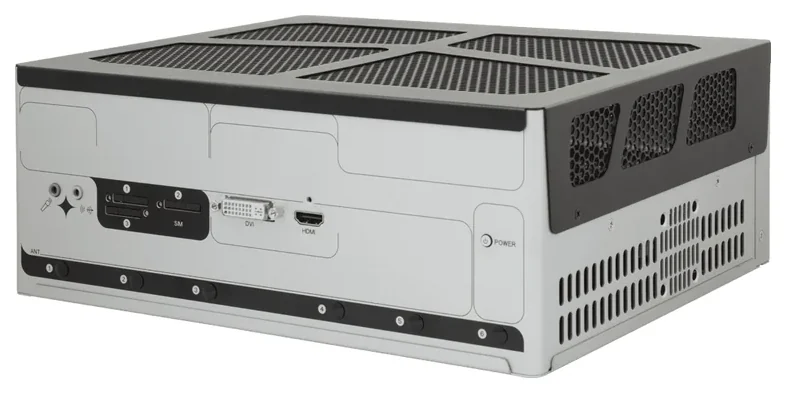

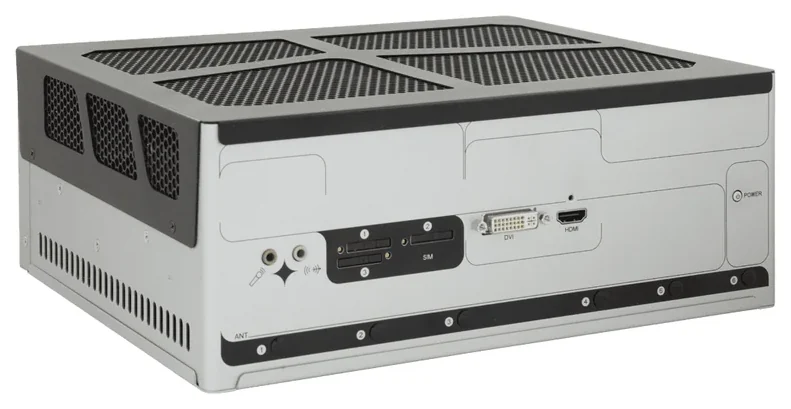

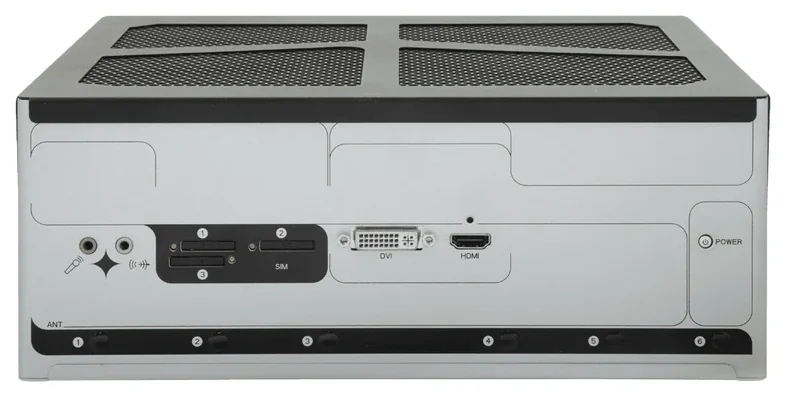

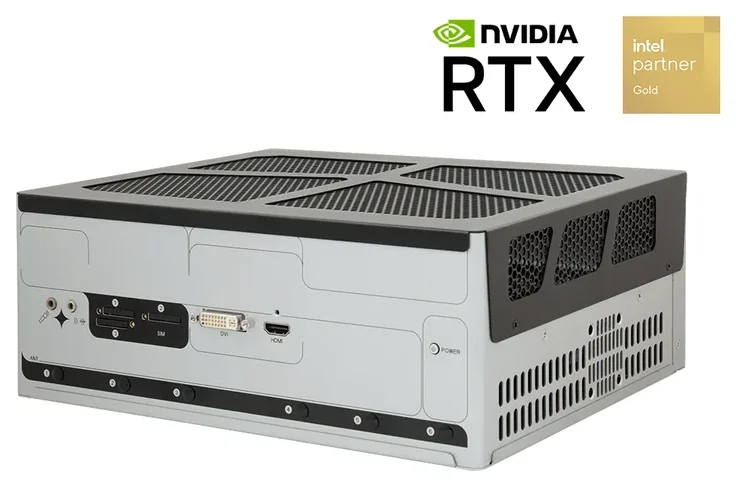

FPC-5210-M4
Industrial-grade embedded computer with discrete GPU support, -20~55°C operating temperature range, wide-range 9~36V DC input with delayed ignition on/off control, and a wall-mount metal chassis. Supports 12th-14th Gen Intel Core processors, discrete GPU expansion via MXM slot up to 120W, and integrates 4 PoE Gigabit ports for cameras and field devices.
- -20~55°C operating temperature range, wide-range 9~36V DC input with ignition control
- MXM 3.1 expansion slot for NVIDIA Quadro Embedded A4500 discrete GPU up to 120W
- 4x M12 Gigabit ports with integrated 802.3af PoE (15.4W) support
- Supports TPM 2.0 and Time-Sensitive Networking (TSN), simultaneous 4-display output
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 55 °C (ambient w/ air flow (w/65W TDP CPU, 115W GPU)) |
|---|---|
| Power input | 9~36V |
| Power connector | 4-pin DC input terminal block (V+, V+, V-, V-) |
| Mounting | Wall-mount |
| Dimensions (mm) | 285 x 230 x 110 (W x D x H) |
| Weight (kg) | 4.68 |
| Vibration resistance | 5~500Hz 2G rms X,Y,Z axis w/SSD — IEC 60068-2-64 |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel® 14th/13th/12th Generation Core™ i9/i7/i5/i3 processor in LGA1700 socket (Max 65W CPU) |
|---|---|
| Chipset | Intel® R680E |
| Socket | LGA1700 |
| RAM | 2 x 262-pin DDR5 SO-DIMM, 4800MHz (ECC/Non-ECC) · 2 slots · up to 64GB |
| Storage | 2× 2.5" outside accessible drive bay (SATA, 600MB/s) · M.2 B key (2242/2280) w/ PCIex2+USB+SATA, for storage or LTE (choose one) · M.2 2280 M key NVMe (PCIex4+SATA, supports boot up) |
| GPU | Integrated Intel® HD Graphics 770; optional MXM NVIDIA® Quadro® Embedded A4500 (8GB/16GB GDDR6, 115W) |
| PCI/PCIe expansion slots | 0 |

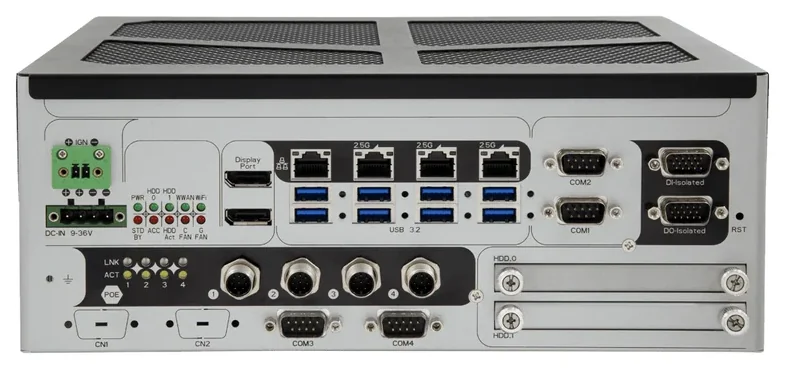

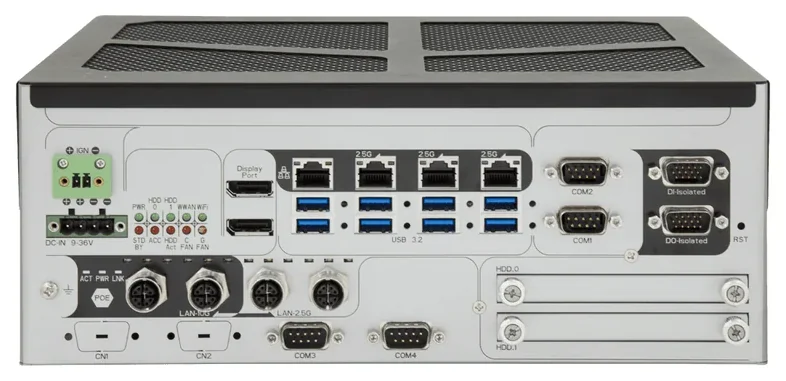

Connectivity & I/O
| COM | 2× RS-232/422/485 configurable via DB-9 connectors (Default RS-232, switch via BIOS) · 2× RS-232 via DB-9 connectors |
|---|---|
| LAN | 4× GbE (RJ-45) 1 x Intel® I219LM (iAMT 16.0); 3 x Intel® I226 2.5GbE · 4× M12 X-coded (2 x GbE + 2 x 2.5GbE) 2 x Intel® I210 (GbE) + 2 x Intel® I226 (2.5GbE) PoE |
| USB | 8× USB 3.2 Gen2 (10Gbps) / 2.0 |
| DIO | 8 in / 8 out (optically isolated) |
| Display outputs | 2× DP 1.4a (from MXM module or Intel Graphics, switchable via BIOS) · 1× HDMI 2.0b · 1× DVI-I (digital/analog) |
| Expansion | 1× MXM · 2× mini-PCIe · 1× M.2 B key · 1× M.2 E key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (10 items)
| CPF-92Q0-C1 | CPU Cooling for LGA1700 CPU |
|---|---|
| WMK-5210 | Wall-mount kit for FPC-521x Series |
| PAC-360W7C-MW | 360W AC/DC adapter kit w/ 4-pin terminal block |
| MXM-A4500-8G | MXM 3.1 Type B NVIDIA® Quadro® Embedded A4500-8GB-115W GDDR6 MXM GPU |
| MXM-A4500-16G | MXM 3.1 Type B NVIDIA® Quadro® Embedded A4500-16GB-115W GDDR6 MXM GPU |
| FAN-5210-GPU-A4500 | GPU cooling for MXM-4500-GPU |
| MM-5C-8G/16G/32G | DDR5-4800 8GB/16GB/32GB SDRAM DIMM module |
| WIFI-IN2550 | Intel AX200NGW M.2 Wi-Fi 6 module w/2x30cm internal wires |
| ANT-H11 | 1 x 2dBi HSUPA antenna |
| ANT-D11 | 1 x WiFi dual-band 2.4G/5G antenna |
