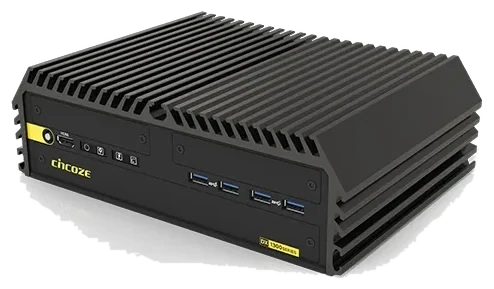

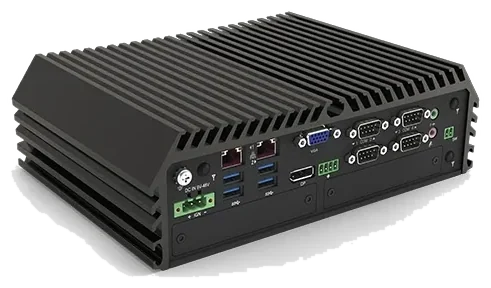

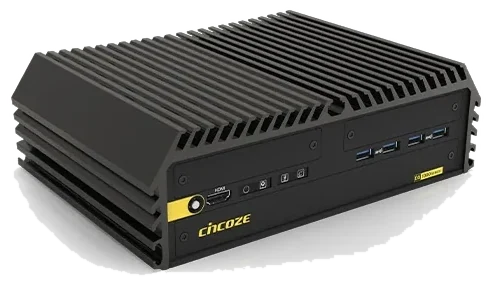

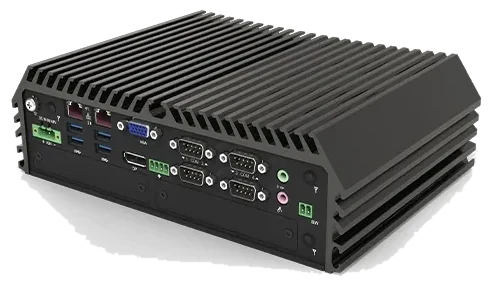

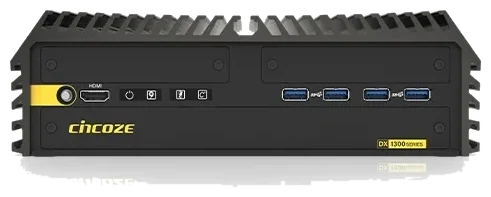

DX-1300-R10
Ultra-compact embedded industrial computer, running stably across a wide -40°C to 60°C temperature range, 9-48VDC power, meeting MIL-STD-810H military shock/vibration standards and EN 50121-3-2 / EN 45545-2 railway certification. Equipped with an Intel Arrow Lake-S Core Ultra 200S series processor and support for up to 96GB of DDR5 RAM.
- Runs reliably across a wide -40°C to 60°C temperature range
- Meets MIL-STD-810H military shock/vibration standards and EN 50121-3-2, EN 45545-2 railway certification
- Supports a wide 9-48 VDC power range with Power Ignition Sensing, OVP, and OCP
- Compact 242.2 x 173 x 75 mm design, fanless, cableless, jumper-free
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model DX-1300-R10 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 60 °C (35W TDP Processor: -40°C to 60°C; 65W TDP Processor: -40°C to 50°C With External Fan Kit) |
|---|---|
| Power input | 9-48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Wall, DIN-RAIL, VESA, Side Mount |
| Dimensions (mm) | 242.2 x 173 x 75 |
| Weight (kg) | 3.59 |
| Vibration resistance | MIL-STD-810H — MIL-STD-810H |
| Certifications | EN 50121-3-2, EN 45545-2, MIL-STD-810H, CE, UKCA, FCC, ICES-003 Class A, CISPR 32 Class A, EN 50155: 2021 Clause 4.4.6, 13.4.9, EN 50121-1: 2017, UL, cUL, CB, IEC, EN 62368-1 |
Computing
| CPU | Intel Arrow Lake-S Core Ultra 200S Series Processors |
|---|---|
| Chipset | Intel W880 |
| RAM | DDR5 SODIMM/CSODIMM · 2 slots · up to 96GB |
| Storage | 2× 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0) · M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1x1 / SATA) · M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / SATA / USB 2.0) |
| GPU | Integrated Intel Xe LPG Graphics |
| PCI/PCIe expansion slots | 0 |

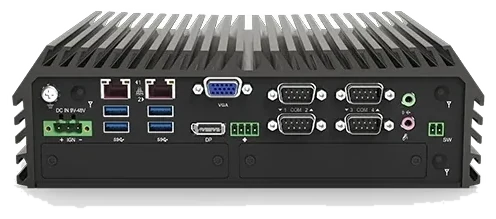

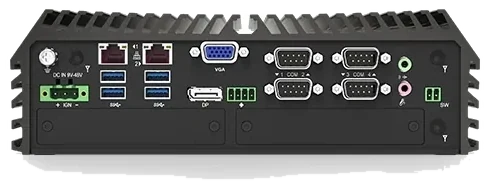

Connectivity & I/O
| COM | 4× RS-232/422/485 with Auto Flow Control (Supports 5V/12V) |
|---|---|
| LAN | 2× 2.5 GbE Intel I226 |
| USB | 4× USB 10Gbps USB 3.2 Gen2x1 Type A · 4× USB 5Gbps USB 3.2 Gen1x1 Type A |
| Display outputs | 1× VGA · 1× DP · 1× HDMI |
| Expansion | 2× M.2 Key B Socket · 1× M.2 Key E Socket · 3× CMI Socket · 2× CFM Socket · 1× SIM Socket |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (35 items)
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
|---|---|
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-TPM02-R10 | CFM Module with Hardware TPM 2.0 |
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4 x M12 Intel I210 1GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports |
| CMI-2P5GLAN01-R10 | CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port |
| CMI-10GLAN05-R10 | CMI Module with 2x Intel 10GbE LAN, RJ45 Port |
| CMI-10GXM12LAN01-R10 | CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector |
| CMI-CAN01-R10 | CMI Module with 2x CAN FD Ports |
| CMI-DIO01 | CMI Module with 16DIO (8in 8out) |
| CMI-COM01 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40°C~+85°C), 2x DB9 Connector, Cervoz |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40°C~+85°C), 4x DB9 Connector, Cervoz |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40°C~+85°C), 2x DB9 Connector, Cervoz |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector, Cervoz |
| MEC-LAN-2002i | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40°C~+85°C), 2x RJ45 Connector, Cervoz |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0°C~+70°C), 2x RJ45 Connector, Cervoz |
| UB0930-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0932-R10 | Universal Bracket with 3x Antenna Cutout |
| UB1303 | Universal Bracket with 2x DB9 Cutout |
| UB1311 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1318 | Universal Bracket with DIO Cutout |
| UB1710-R10 | Universal Bracket with 4x M12 A-Coded Cutout |
| UB1712-R10 | Universal Bracket with 4x RJ45 Cutout |
| UB1728-R10 | Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion |
| UB1737-R10 | Universal Bracket with 2x M12 X-coded Cutout |
| UB1738-R10 | Universal Bracket with 2x DB9 and 1× Switch Cutout for CMI-CAN Expansion |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| SIDE-DX | DX Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan |
