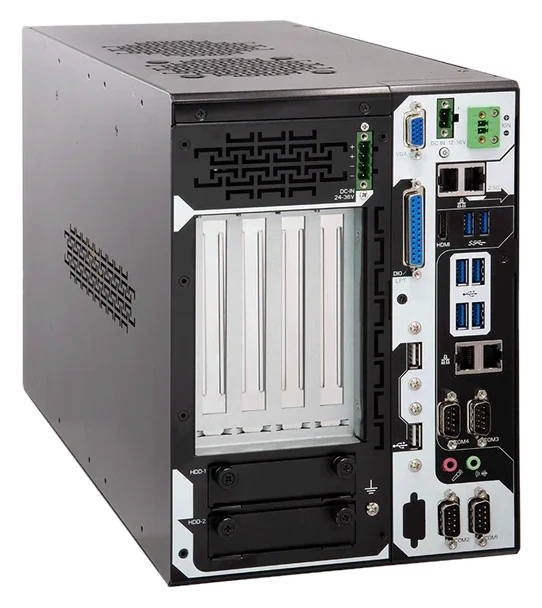

FPC-9108-L2U4-G3
Edge AI industrial computer rated to MIL-STD-810G for vibration/shock, operating temperature range depending on CPU TDP (-20~50/55/70°C, narrowing to -20~45°C with an RTX-3090 GPU installed), DC 12~36V power with an ignition port and dedicated auxiliary power for the graphics card. Uses an Intel 10th Gen CPU (Xeon/Core i9-i3) on an LGA1200 socket, DDR4 RAM up to 64GB, supports NVIDIA RTX-30 series GPUs up to 350W, multiple LAN ports and high-speed USB.
- Intel 10th Gen CPU (Comet Lake-S) with W480E chipset
- Supports NVIDIA RTX-30 series graphics cards up to 350W (up to 334.6mm long)
- Wide-range DC 24~36V power
- HDMI + VGA, 2 independent displays
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Power input | 12~36V (main power); 24~36V (auxiliary power for graphics card) |
|---|---|
| Power connector | 2-pin terminal block (main); 4-pin terminal block (secondary) |
| Mounting | Wall-mount |
| Dimensions (mm) | 181 x 380 x 250 |
| Weight (kg) | 7.4 |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel 10th Gen Xeon/Core i9/i7/i5/i3 (LGA1200 socket) |
|---|---|
| Chipset | Intel W480E |
| Socket | LGA1200 |
| RAM | DDR4 SO-DIMM 260-pin · 2 slots · up to 64GB |
| Storage | 2× SATA 2.5" drive bay (outside accessible, 600MB/s) · M.2 B-key (2242/3052/2280, PCIex2+USB3.0+SATA, shared with 5G/LTE) |
| GPU | NVIDIA RTX-30 series up to 350W (supported, not included) |
| PCI/PCIe expansion slots | 4 |

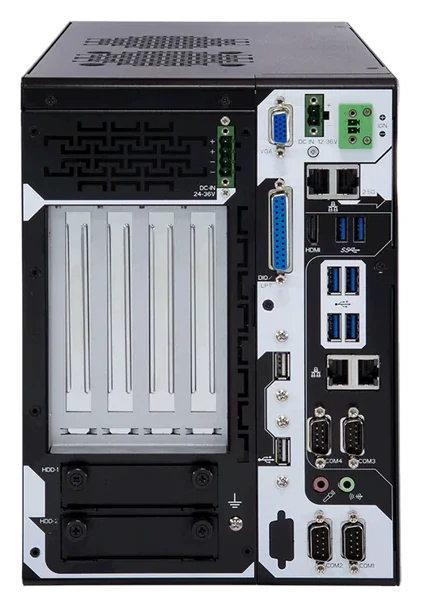

Connectivity & I/O
| COM | 2× RS-232/422/485 configurable (RS-232 default) · 2× RS-232 |
|---|---|
| LAN | 1× 2.5GbE Intel WGI225LM · 1× GbE Intel WGI219LM w/ iAMT 14.0 · 2× GbE Intel WG82583V |
| USB | 2× USB USB 3.2 Gen2 (10Gbps)/2.0 · 4× USB USB 3.2 Gen1 (5Gbps)/2.0 · 2× USB USB 2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 1× HDMI · 1× VGA (DB-15) |
| Expansion | 1× mini-PCIe (Full Size) · 1× M.2 E-key (2230) · 1× M.2 B-key (2242/3052/2280) · 1× PCIe x16 · 3× PCI |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (16 items)
| WMK-7000 | Wall-mount kit for FPC-7XXX Series |
|---|---|
| PAC-180W6C-FSP | 180W AC/DC 24V adapter kit (For System) |
| PAC-480W6C-MW | 480W AC/DC 24V DIN Rail adapter kit (For GPU Box) |
| MK-4C-4G/8G/16G/32G | DDR4-2400/2933 SDRAM DIMM kit 4/8/16/32GB |
| WIFI-IN2550 | Intel AX200NGW M.2 Wi-Fi 6 module w/ 2x30cm internal wires |
| ANT-H11 | 1x 2dBi HSUPA antenna |
| ANT-D11 | 1x WiFi dual-band 2.4G/5G antenna |
| Xeon W-1250E | Intel Xeon W-1250E processor, L2/12M, 3.5GHz |
| Core i9-10900E | Intel 10th Gen Core i9-10900E processor, L2/20M, 2.8GHz |
| Core i9-10900TE | Intel 10th Gen Core i9-10900TE processor, L2/20M, 1.8GHz |
| Core i7-10700E | Intel 10th Gen Core i7-10700E processor, L2/16M, 2.9GHz |
| Core i7-10700TE | Intel 10th Gen Core i7-10700TE processor, L2/16M, 2.0GHz |
| Core i5-10500E | Intel 10th Gen Core i5-10500E processor, L2/12M, 3.1GHz |
| Core i5-10500TE | Intel 10th Gen Core i5-10500TE processor, L2/12M, 2.3GHz |
| Core i3-10100E | Intel 10th Gen Core i3-10100E processor, L2/6M, 3.2GHz |
| Core i3-10100TE | Intel 10th Gen Core i3-10100TE processor, L2/6M, 2.3GHz |
