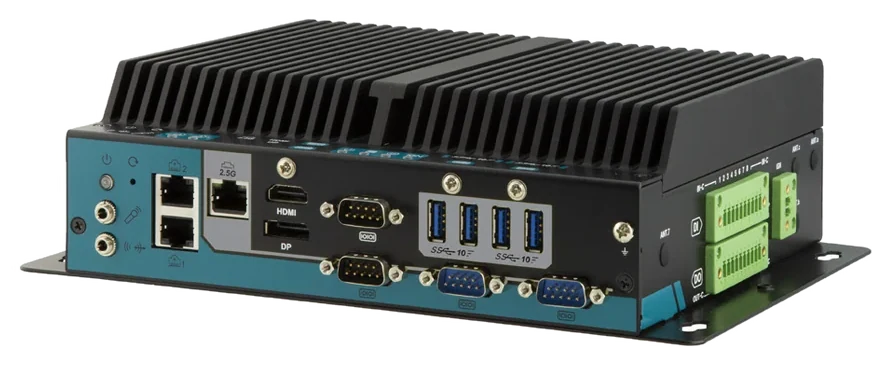

MaytinhcongnghiepARES-1980-AI
Fanless industrial controller with a built-in Hailo-8 AI module (M.2), -20~60°C operating temperature range, 9~36V DC power with delayed ignition control. Simultaneous output on 3 displays (DVI-D/HDMI/DP), supports 5G/M.2 NVMe SSD/USB 3.2 Gen2/2.5GbE LAN. Uses an 11th-gen Intel Core i7/i5/i3 (Tiger Lake-U) CPU soldered onboard, default i5 configuration, DDR4 RAM up to 64GB.
- Built-in Hailo-8 AI module, up to 26 TOPS performance, only 2.5W power consumption
- Fanless, wide-range 9~36V DC power, ignition on/off control with delay
- Simultaneous output on 3 independent displays (DVI-D/HDMI/DisplayPort)
- 8x DI & 8x DO isolated at 1.5KV, multi-protocol I2C/SPI/UART/GPIO port via DB-26
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (ambient w/ air flow) |
|---|---|
| Power input | 9~36V |
| Power connector | 3-pin terminal block (V+, V-, GND) |
| Mounting | Wall-mount (standard), DIN-rail (optional, with CTOS bracket), VESA mount (optional, with CTOS bracket) |
| Dimensions (mm) | 210 x 180 x 70 (W x D x H) |
| Weight (kg) | 3.7 |
| Vibration resistance | 5~500Hz, 3 Grms X,Y,Z axis, with SSD — IEC 60068-2-64 |
| Certifications | CE, FCC Class A |
Computing
| RAM | DDR4-3200 SO-DIMM · 2 slots · up to 64GB |
|---|---|
| Storage | M.2 M-Key 2242/2280 (PCIe Gen3 x4 + SATA III) · 2.5" HDD/SSD tray (SATA III + SATA PWR) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232, DB-9 · 2× RS-232/422/485 (RI/5V/12V), DB-9 |
|---|---|
| LAN | 2× GbE (PoE IEEE 802.3af) Intel i211AT PoE · 1× 2.5 GbE (iAMT supported on i5/i7 SKU) Intel 225LM |
| USB | 4× USB USB-A 3.2 Gen2 (2 ports, independent speed) · 1× USB USB-A 2.0 onboard (for encryption dongle) |
| DIO | 8 in / 8 out (optically isolated) |
| Display outputs | 1× HDMI 2.0b (up to 3840x2160@60Hz) · 1× DisplayPort 1.4 (up to 3840x2160@60Hz) · 1× DVI-D (up to 1920x1080@60Hz) |
| Expansion | 1× mPCIe · 1× M.2 B-Key · 1× M.2 E-Key · 10× Antenna hole |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| MM-4C-4G/8G/16G DIMM Memory | 4G/8G/16G DDR4 Memory |
|---|---|
| PAC-180W6C-FSP-ES | 24V/7.5A, 180W AC/DC adapter kit |
| WIFI-AT4550 | Atheros QCNFA324 mPCIe Wi-Fi+BT Module Kit (w/ 2x30cm RF Cable) |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G Antenna Kit |
| LTE-4450 | Quectel EG25-G mPCIe LTE Cat 4 Module Kit (Global, w/ 1x25cm RF Cable) |
| ANT-H11 | 1 x 2dBi HSUPA Antenna Kit |
| DRK-002 | DIN Rail Mounting Kit for ARES Series |
