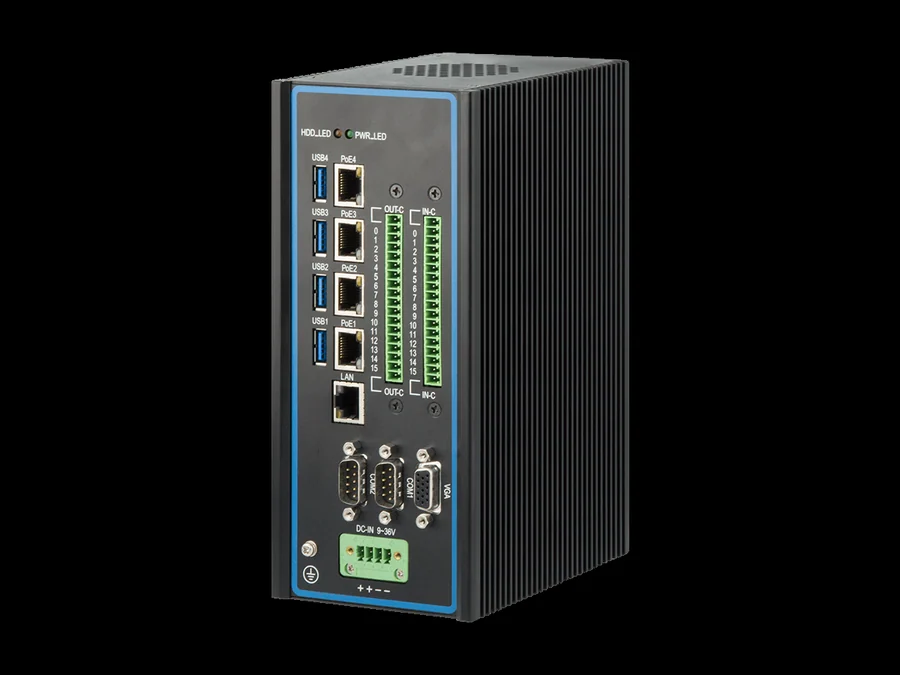

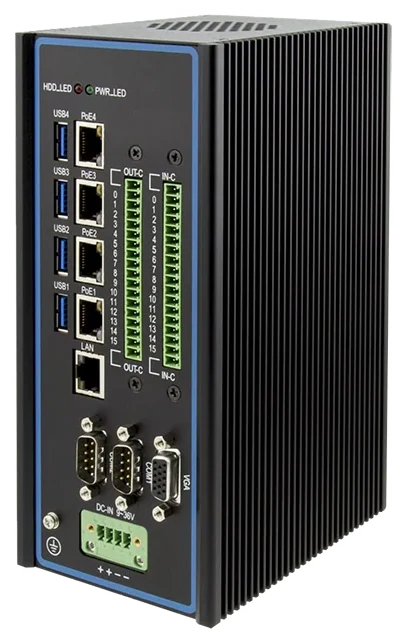

ARES-1965-3855U-2WD4
Fanless industrial machine vision controller, 0~55°C operating temperature range, 9~36V DC power. Integrated 4x GbE PoE IEEE 802.3af ports (30W total power) with ±1kV surge protection per IEC61000-4-5, 16-channel isolated DI/DO (1.5KV). Uses an Intel Celeron 3855U CPU soldered onboard, DDR4 RAM up to 16GB.
- 4x GbE PoE IEEE 802.3af ports, ±1kV surge protection per IEC61000-4-5, for GigE cameras
- 16-channel isolated DI/DO (1.5KV), DO rated 24V/200mA
- Fanless, 9~36V DC power
- Internal USB2.0 Type-A port for license dongle
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 55 °C (ambient w/ air flow) |
|---|---|
| Power input | 9~36V |
| Mounting | Wall-mount, DIN-rail |
| Dimensions (mm) | 90 x 140 x 195 (W x D x H) |
| Weight (kg) | 2.3 |
| Vibration resistance | 5~500Hz, 3 Grms X,Y,Z axis, with mSATA — IEC 60068-2-64 |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Celeron 3855U, 1.6GHz, 2M L2 Cache |
|---|---|
| Chipset | SoC Integrated |
| Socket | soldered onboard |
| RAM | DDR4-2133 SO-DIMM · 1 slots · up to 16GB |
| Storage | SATA 3.0 · mSATA |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232, DB-9 |
|---|---|
| LAN | 4× GbE PoE (IEEE 802.3af, ±1kV Surge), total power 30W Intel i211AT PoE · 1× GbE (PHY Giga) Intel i219LM |
| USB | 4× USB USB 3.0/2.0 Type-A · 1× USB USB 2.0 Type-A (vertical, internal) |
| DIO | 16 in / 16 out (optically isolated) |
| Display outputs | 1× VGA |
| Expansion | 1× mSATA · 1× Mini PCIe |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| WMK-1965 | Wall-mount kit for ARES-1965 |
|---|---|
| DRK-1965 | DIN-Rail kit for ARES-1965 |
| 64/128/256GB mSATA | mSATA MLC 64/128/256GB |
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB Kit |
| MM-4C-4G/8G/16G | DDR4-2133 4GB/8GB/16GB SDRAM |
| PAC-120W6B-FSP | 19V/6.3A 120W AC/DC adapter kit |
| WiFi-AT4550 | Atheros QCNFA324 WiFi module w/ 2x30cm internal wiring (requires 2xANT-D11) |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
