- -20~50°COperating temp
- FanlessCooling
- 9–36 VDCPower input
- 4COM ports
- 8LAN ports
- PoEPowered LAN

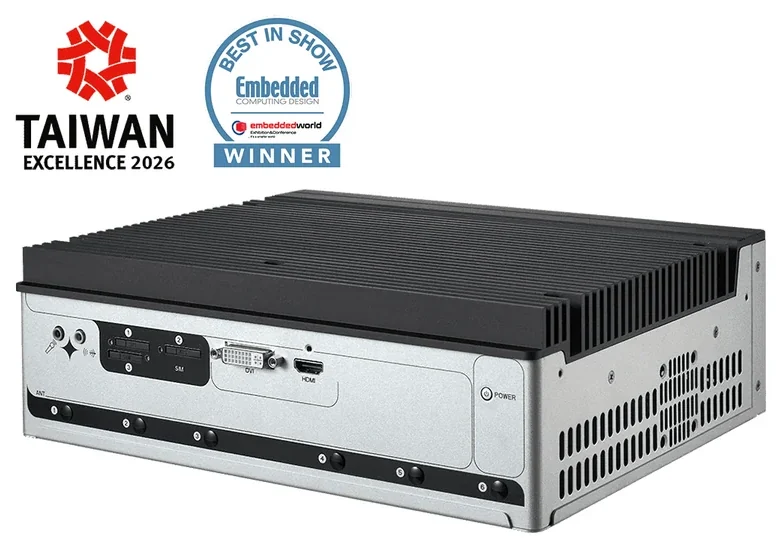

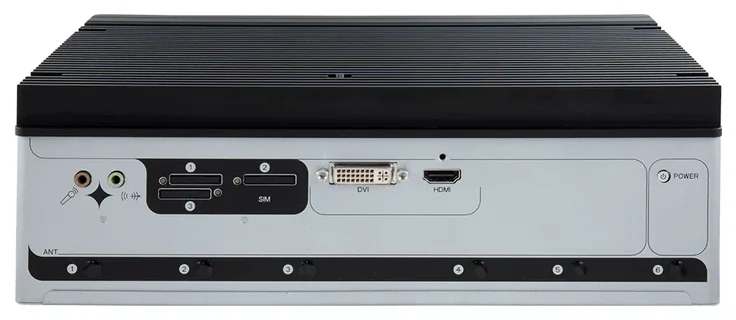

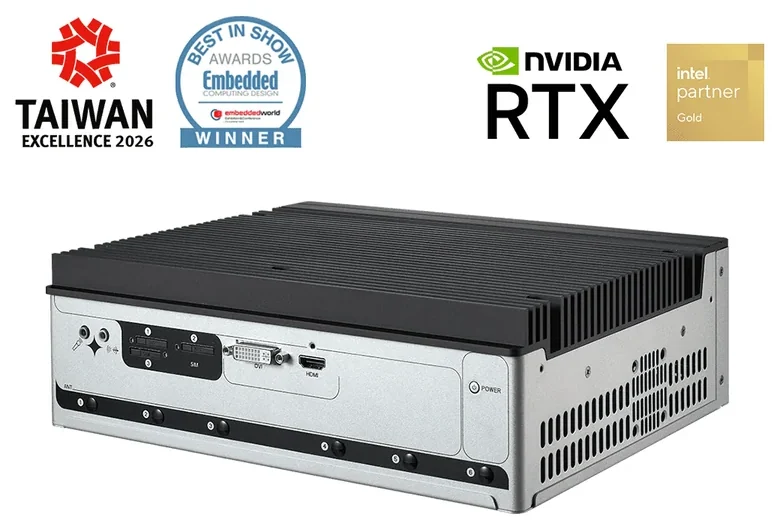

FPC-5211-M4
Bare-bone industrial Edge AI computer with fanless heat-pipe cooling, wide-range 9~36V DC input with ignition control, meeting IEC 60068-2-64 vibration and IEC 60068-2-27 shock standards, suitable for in-vehicle or field installation with PoE cameras.
- Fanless design with embedded heat pipe, reducing fan-related failures in industrial environments
- Wide-range 9~36V DC input, with delayed on/off control and ignition power control for vehicular applications
- Meets IEC 60068-2-64 vibration and IEC 60068-2-27 shock standards, operating at -20~65°C with an optional external cooling fan

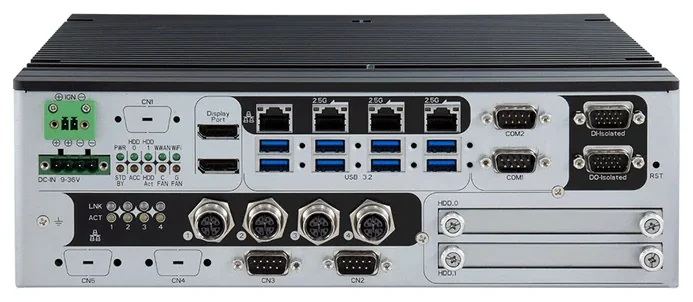

- 4x Gigabit PoE ports per 802.3af standard via M12 X-coded connectors, suitable for outdoor AI camera connections
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 50 °C (ambient w/ air flow; extends to -20~65°C when using External SMART FAN kit; A2000 GPU 100% loading without throttling) |
|---|---|
| Power input | 9~36V |
| Power connector | 4-pin DC input terminal block (V+,V+,V-,V-) |
| Mounting | Wall-mount |
| Dimensions (mm) | 285 x 230 x 90mm (Fanless) / 285 x 230 x 110mm (w/ FAN) |
| Weight (kg) | 5.83 |
| Vibration resistance | 5~500Hz 3G rms X,Y,Z axis w/SSD — IEC 60068-2-64 |
| Certifications | CE, FCC Class A, E mark |
Computing
| RAM | DDR5 SO-DIMM 4800MHz · 2 slots · up to 64GB |
|---|---|
| Storage | 2× 2.5” outside accessible drive bay · M.2 B key (2242/2280), PCIe x2+USB+SATA, for storage or LTE (choose one) · M.2 M key 2280 (PCIe x4 & SATA, supports boot up) |
| PCI/PCIe expansion slots | 0 |

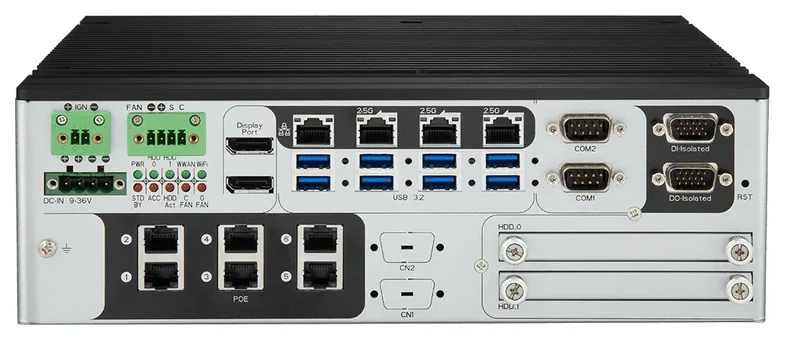

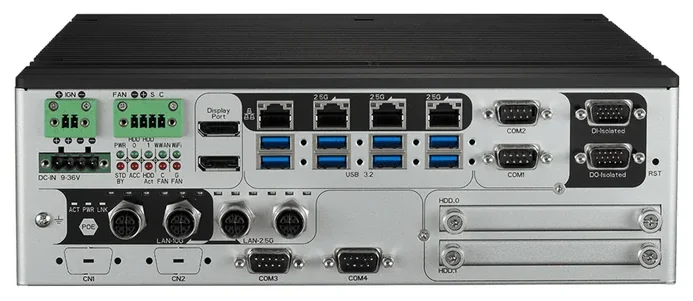

Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9, default RS232) · 2× RS-232 (DB-9) |
|---|---|
| LAN | 4× GbE Intel® I226 2.5G / I210 · 4× 2.5GbE PoE (M12 X-coded) Intel® I210 (1GbE) + 2 x I225 (2.5GbE) PoE |
| USB | 8× USB USB 3.2 (10Gbps)/2.0 |
| DIO | 8 in / 8 out (optically isolated) |
| Display outputs | 2× DP 1.4a · 1× HDMI 2.0b · 1× DVI-I |
| Expansion | 1× MXM 3.1 Type A/B GPU Slot · 2× mPCIe · 1× M.2 B key · 1× M.2 E key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (9 items)
| WMK-5210 | Wall-mount kit for FPC-521x Series |
|---|---|
| PAC-280W6C-MW | 280W AC/DC adapter kit w/ 2-pin/3-pin/4-pin block |
| MM-5C-8G/16G/32G | DDR5-4800 8GB/16GB/32G SDRAM DIMM module |
| MXM-A2000-8G | MXM 3.1 Type A NVIDIA® Quadro® Embedded A2000 8GB (GDDR6 60W TGP) |
| MXM-2000A-8G | MXM 3.1 Type A NVIDIA® Quadro® Embedded 2000Ada 8GB (GDDR6 60W TGP) |
| WIFI-IN2550 | Intel® AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires |
| ANT-H11 | 1 x 2dBi HSUPA antenna |
| ANT-D11 | 1 x WiFi dual-band 2.4G/5G antenna |
| EXFAN-8015 | External SMART Fan kit (80 x 80 x 15mm, 4 pin Terminal Block Plug, Mounting Bracket, support Smart Fan Function) |
Other configurations in the FPC-5200 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
