CV-221C-R10

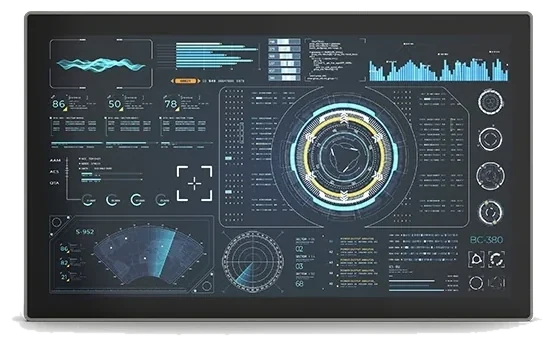

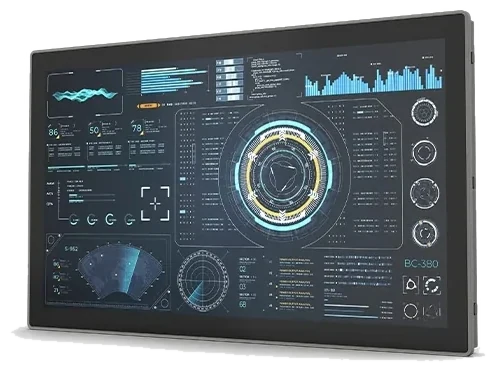

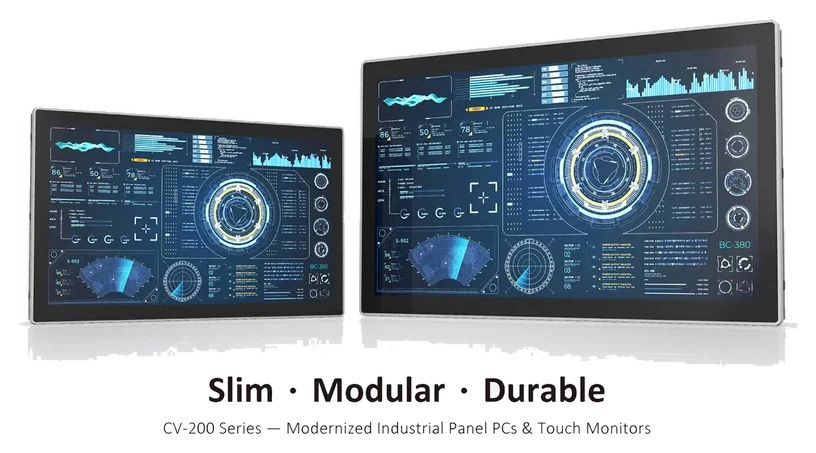

21.5-inch Full HD industrial display module with ultra-thin ≤3mm bezel, one-piece die-cast flat surface design, IP66-rated front panel protection, supports anti-glare P-Cap touch and flexible CDS conversion technology.
- IP66-rated waterproof/dustproof front panel, complies with industrial EMC standards EN 61000-6-4 / EN 61000-6-2 and railway standard EN 50155
- Ultra-thin ≤3mm bezel design, one-piece die-cast flat surface mechanical structure

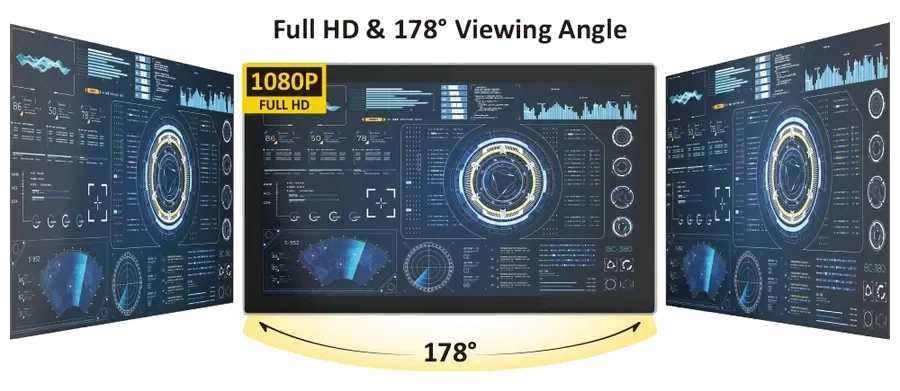

- 21.5-inch Full HD (1920x1080) display, 178°/178° wide viewing angle, LED backlight lifespan up to 50,000 hours
- P-Cap capacitive touch integrated with Anti-Glare coating and Wet Touch Tracking technology
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (With Industrial Grade peripherals; Ambient with air flow) |
|---|---|
| Mounting | Panel Mount |
| Dimensions (mm) | 522.4 x 318.3 x 63.4 |
| Weight (kg) | 5.28 |
| IP protection rating | IP66 (Front Panel) |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN 50121-3-2 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN 61000-3-3, FCC 47 CFR Part 15B Class A, EN/BS/IEC 61000-6-4: 2019 Class A, EN/BS/IEC 61000-6-2: 2019, EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only), EN 50121-1: 2017 |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 21.5" |
|---|---|
| Resolution | 1920x1080 |
| Brightness (nit) | 300 |
| Touch | Projected Capacitive |
| Frame type | 16:9 |
| Front IP rating | IP66 |
