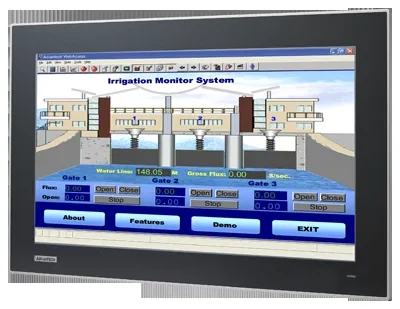

FPM-7211W-P3AE
21.5 inch Full HD industrial display built for durability with a magnesium alloy front panel rated IP66, operating temperature range 0 ~ 55°C, 1 Grms vibration resistance, PCAP multi-touch capacitive touch, and VGA, DVI-D signal inputs.
- Die-cast magnesium alloy front panel rated IP66 for water and dust protection, sturdy SECC steel rear housing
- 1 Grms vibration resistance (5 ~ 500 Hz) suited to harsh industrial environments
- Diverse mounting options: Panel, Wall, Desktop, and VESA arm (100 x 100 mm)
- 24 VDC power using a sturdy locking Phoenix jack connector
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 55 °C |
|---|---|
| Power input | 24 VDC |
| Power connector | Phoenix Jack |
| Mounting | Panel, Wall, Desktop, VESA (MIS,100,C) |
| Dimensions (mm) | 558.4 x 349.8 x 47.7 |
| Weight (kg) | 8 |
| Vibration resistance | 1 Grms — 5 ~ 500 Hz (Operating, Random) |
| IP protection rating | IP66 (front panel) |
| Certifications | BSMI, CCC, CE, FCC Class A, UL |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| Display outputs | 1× VGA · 1× DVI-D |
|---|
Display
| Screen size | 21.5" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 300 |
| Touch | Projected capacitive (PCAP) 10-point touch |
| Frame type | 16:9 |
| Front IP rating | IP66 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (9 items)
| 1702002600 | Power Cable US Plug 1.8 M |
|---|---|
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801-11 | Power Cable UK Plug 1.8 M |
| 1700000596-11 | Power Cable China/Australia Plug 1.8 M |
| PWR-247-DE | Adapter 100-240V 60W 24V 2.5A |
| FPM-1000T-SMKE | Desktop Mounting kit for FPM series |
| PPC-174T-WL-MTE | Wall mount kit A800B |
| PPC-ARM-A03 | ARM VESA Standard (A-CLEVER) |
| PPC-STAND-A1E | Stand mounting kit |
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
