ASLAN-W919C-6300G4

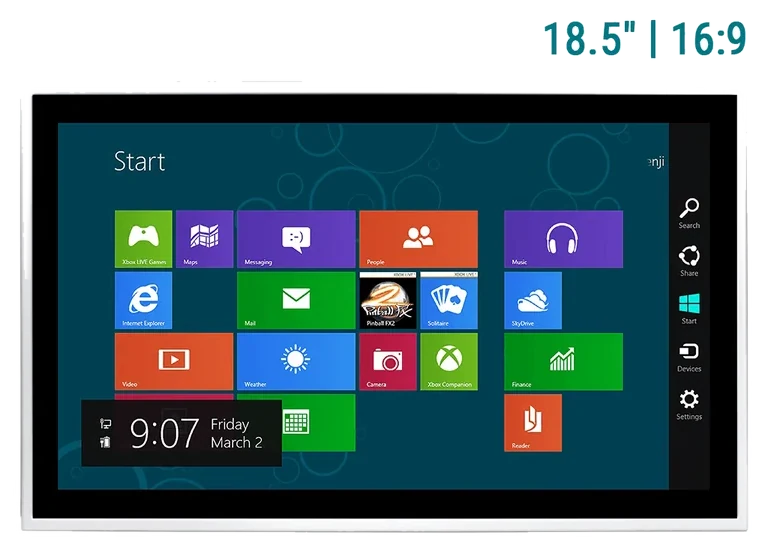

18.5-inch wide-screen industrial panel PC, fanless, front panel IP65 dust/water resistant, 7H scratch-resistant surface, stable operation -20~55°C with wide-range 9~36V DC power. Uses a high-performance Intel Core i5-6300U CPU, DDR4 RAM up to 16GB.
- Capacitive touch front panel, rated IP65
- Scratch-resistant surface, 7H hardness
- Fanless, cable-less design, low power consumption
- Easy HDD/SSD maintenance
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 55 °C |
|---|---|
| Power input | 9~36V |

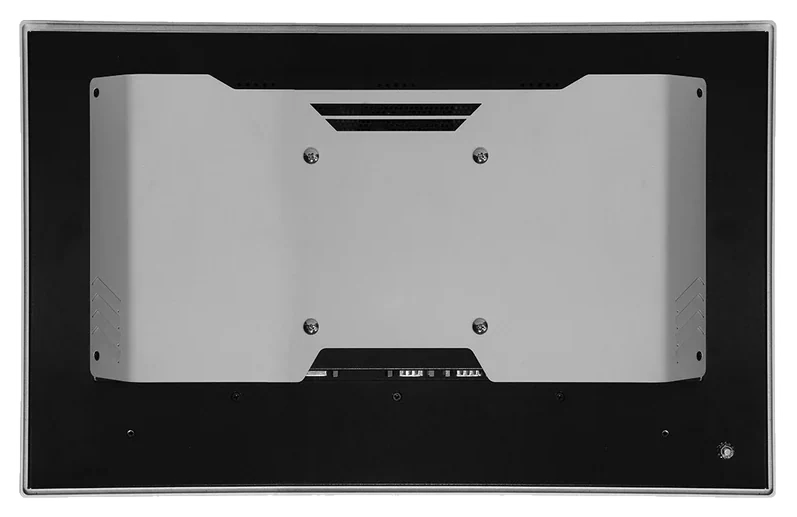

| Mounting | Panel Mounting, VESA-100 Mounting |
| Dimensions (mm) | 470 x 295 x 56.2 |
| Weight (kg) | 5.68 |
| Vibration resistance | 5~500Hz, 1Grms Random (w/ SSD) |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Core i5-6300U Processor 2.4GHz |
|---|---|
| RAM | DDR4 SO-DIMM 2133MHz (4GB pre-installed) · 1 slots · up to 16GB |
| Storage | 2× 2.5" drive bay (default) · mSATA |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 4× RS-232/422/485 |
|---|---|
| LAN | 1× GbE Intel i219LM (w/ iAMT) · 1× GbE Intel i210IT |
| USB | 4× USB USB 3.0/2.0 |
| DIO | 4 in / 4 out |
| Display outputs | 1× VGA · 1× HDMI |
| Expansion | 1× mSATA (SATA, Full Size) · 1× mPCIe (PCIe x1 + USB2.0, Full Size) · 1× mPCIe (PCIe x1 + USB2.0, Half Size) |
Display
| Screen size | 18.5" |
|---|---|
| Resolution | 1366 x 768 WXGA |
| Brightness (nit) | 300 |
| Touch | Projected capacitive touch panel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (5 items)
| PAC-60W6A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| SCK-722C | Assembly kit for SiP-41B/42B |
