ASLAN-W812C-2930G2
11.6-inch fanless industrial panel PC, front panel IP65 dust/water resistant, 7H scratch-resistant surface, slim compact design, stable operation -10~55°C with 12V DC power via jack. Uses a power-efficient Intel N2930 Quad-Core CPU, DDR3L RAM up to 8GB.
- Capacitive touch front panel, rated IP65
- Scratch-resistant surface, 7H hardness
- Slim, fanless, cable-less design
- Low power consumption, up to 14.5W
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 55 °C |
|---|---|
| Power input | 12V |
| Power connector | DC jack |

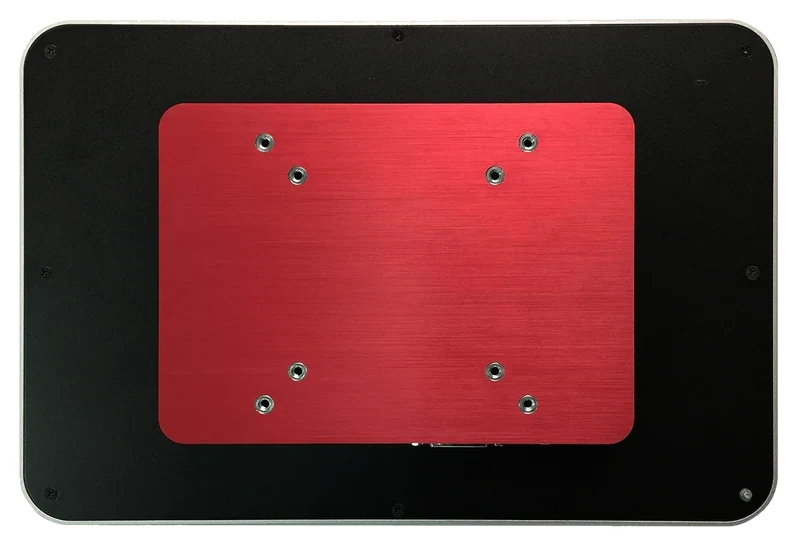

| Mounting | VESA-75/100 Mounting with Bracket |
| Dimensions (mm) | 306.00 x 206.00 x 39.50 |
| Weight (kg) | 2.1 |
| Vibration resistance | 5~500Hz, 1Grms Random (with CFast/SSD) |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel N2930 Quad-Core Processor 1.83GHz (Bay Trail SoC) |
|---|---|
| RAM | DDR3L SO-DIMM 1600MHz (2GB pre-installed) · 1 slots · up to 8GB |
| Storage | mSATA (SATA interface SSD, max transfer speed 300MB/s) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O

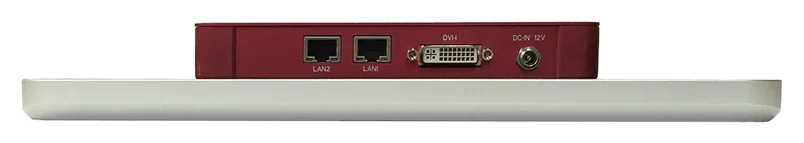

| LAN | 2× GbE Intel I210AT |
|---|---|

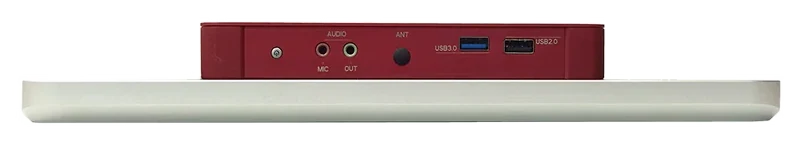

| USB | 1× USB USB 3.0 · 1× USB USB 2.0 |
| Display outputs | 1× DVI-I |
| Expansion | 1× mPCIe Full-Size (PCIe x1 + USB2.0) · 1× mPCIe Half-Size (PCIe x1 lane only) |
Display

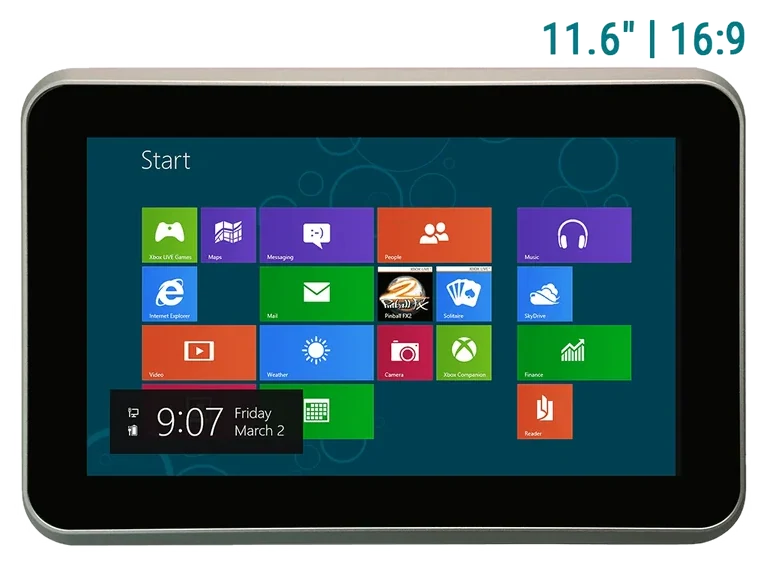

| Screen size | 11.6" |
|---|---|
| Resolution | 1920 x 1080 FHD |
| Brightness (nit) | 300 |
| Touch | Projected capacitive touch panel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| PAC-60W1A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| WiFi-AT4550 | Atheros QCNFA324 WiFi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| MM-3C-2G/4G/8G | Industrial DDR3L-1600 2GB/4GB/8GB SDRAM |
| 32GB SSD | mSATA MLC 32GB |
| 64GB SSD | mSATA MLC 64GB |
| PMB-812C | Panel Mount Kit for W812C |
| SCK-810C | Assembly kit for SiP-41B/42B |
