- -20~55°COperating temp
- IP65Ingress rating
- FanlessCooling
- 9–36 VDCPower input
- 4COM ports
- 2LAN ports

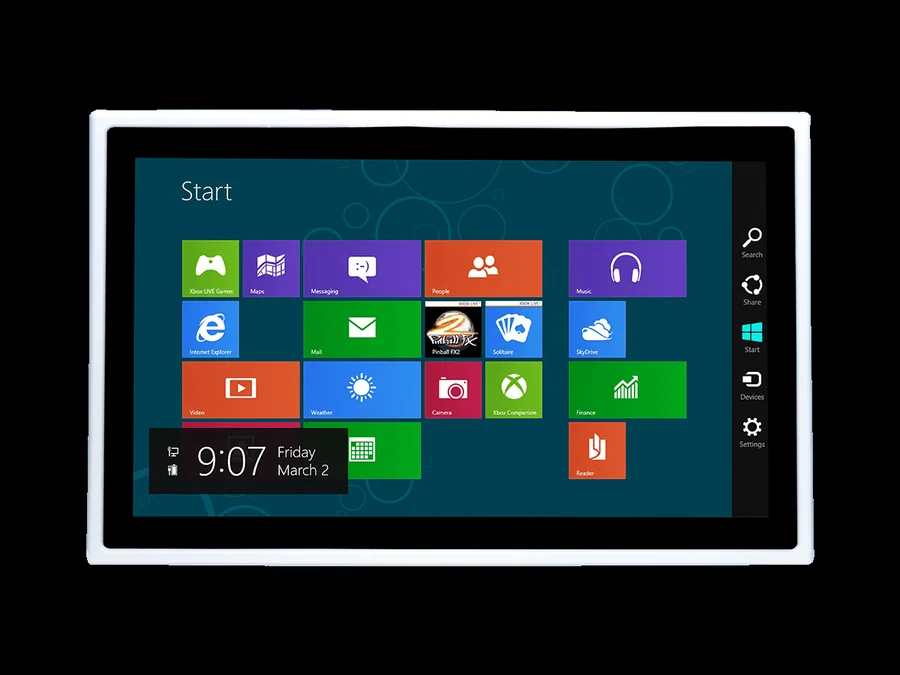

ASLAN-W915C-6300G4
15.6-inch industrial panel PC, fanless, front panel rated IP65, 7H scratch-resistant surface, -20~55°C operating temperature range, wide-range 9~36V DC input, low power consumption. Equipped with an Intel Core i5-6300U 2.4GHz CPU, DDR4 RAM up to 16GB, cable-less design, easy HDD/SSD maintenance.
- 15.6" LED backlit display
- Projected capacitive (PCAP) touch panel
- Front panel rated IP65
- Scratch-resistant surface, 7H hardness
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 55 °C |
|---|---|
| Power input | 9~36V |
| Mounting | Panel mounting, VESA-100 |
| Dimensions (mm) | 404 x 255 x 56.3 |
| Weight (kg) | 4.46 |
| Vibration resistance | 5~500Hz, 1Grms Random |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Core i5-6300U |
|---|---|
| Socket | Soldered |
| RAM | DDR4 · 1 x 260-pin SO-DIMM, 2133MHz slots · up to 16GB |
| Storage | 2× 2.5" drive bay (default) · mSATA |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 4× RS-232/422/485 |
|---|---|
| LAN | 2× GbE Intel i219LM PCIe w/ iAMT (1); Intel i210IT PCIe (1) |
| USB | 4× USB USB-A 3.0/2.0 |
| DIO | 4 in / 4 out |
| Display outputs | 1× VGA · 1× HDMI |
| Expansion | 1× mSATA · 1× mPCIe · 1× mPCIe |
Display
| Screen size | 15.6" |
|---|---|
| Resolution | 1366 x 768 WXGA |
| Brightness (nit) | 300 |
| Touch | Projected capacitive touch panel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (5 items)
| PAC-60W6A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| SCK-722C | Assembly kit for SiP-41B/42B |
