ASLAN-W810C-2930G2
10.1-inch industrial panel PC, fanless, -10~60°C operating temperature range, 12V DC power, front panel rated IP65 for dust/moisture resistance in production environments. Uses an Intel N2930 Quad-Core CPU, DDR3L RAM up to 8GB, suited for compact monitoring/HMI applications.
- High-resolution LCD display, LED backlight
- Capacitive touch panel, front panel rated IP65
- 7H scratch-resistant surface
- Slim, compact design
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 60 °C |
|---|---|
| Power input | 12V |
| Power connector | DC jack |

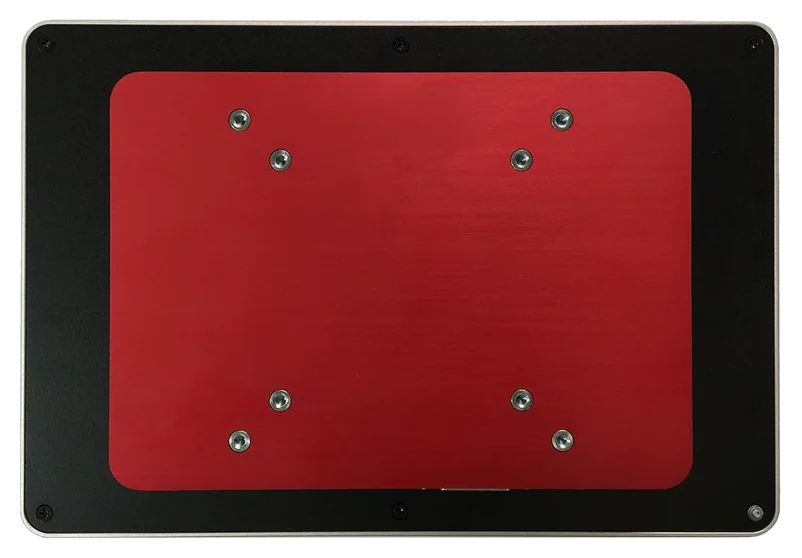

| Mounting | VESA-75, VESA-100 (with bracket) |
| Dimensions (mm) | 255.00 x 175.00 x 39.50 |
| Weight (kg) | 1.7 |
| Vibration resistance | 5~500Hz, 1Grms Random (with CFast/SSD) |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel N2930 Quad-Core Processor 1.83GHz |
|---|---|
| RAM | DDR3L SO-DIMM · 1 slots · up to 8GB |
| Storage | mSATA (SATA interface SSD, up to 300MB/s) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O

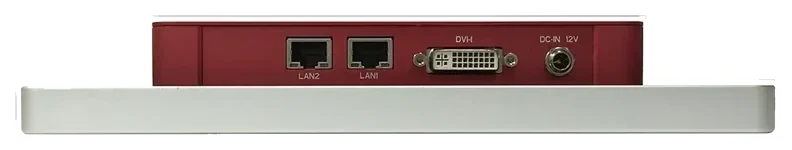

| LAN | 2× GbE Intel I210AT |
|---|---|

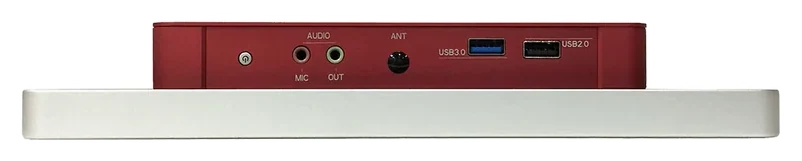

| USB | 1× USB USB 3.0 Type-A · 1× USB USB 2.0 Type-A |
| Display outputs | 1× DVI-I |
| Expansion | 1× mPCIe Full-Size · 1× mPCIe Half-Size |
Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280x800 WXGA |
| Brightness (nit) | 350 |
| Touch | Projected capacitive touch panel |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| PAC-60W1A-FSP-ES | 12V/5A 60W AC/DC power adapter kit |
|---|---|
| WiFi-AT4550 | Atheros QCNFA324 WiFi module w/ 2x30cm internal wiring |
| ANT-D11 | 1x Wi-Fi Dual-band 2.4G/5G antenna |
| MM-3C-2G/4G/8G | Industrial DDR3L-1600 2GB/4GB/8GB SDRAM |
| 32GB SSD | mSATA MLC 32GB |
| 64GB SSD | mSATA MLC 64GB |
| PMB-810C | Panel Mount Kit for W810C |
| SCK-810C | Assembly kit for SiP-41B/42B |
