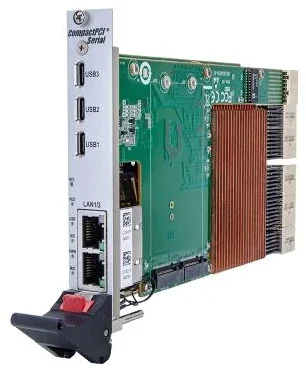

MIC-330V2-A1S1
Bo mạch máy tính công nghiệp chuẩn 3U CompactPCI Serial kích thước 4HP, đáp ứng tiêu chuẩn ngành đường sắt EN50155, hoạt động bền bỉ trong môi trường va đập rung lắc mạnh. Thiết bị được trang bị vi xử lý Intel Xeon W-11865MLE, bộ nhớ RAM 32 GB onboard có ECC và hỗ trợ kết nối mạng tốc độ cao.
- Tuân thủ tiêu chuẩn PICMG CompactPCI Serial (CPCI-S.0 R2.0) và tiêu chuẩn đường sắt EN50121-4, EN50121-3-2, EN50155
- Khả năng chống rung 2 Grms và chống sốc 10 G chuyên dụng cho môi trường công nghiệp khắc nghiệt
- Trang bị vi xử lý Intel Xeon W-11865MLE 8 nhân 16 luồng, TDP 25W
- Tích hợp sẵn 32 GB RAM DDR4 ECC onboard, khả năng mở rộng qua khe SODIMM lên đến 64 GB
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -25 ~ 70 °C (Commercial product support) |
|---|---|
| Power connector | Đầu nối CPCI-S (P1-P5) |
| Mounting | Lắp vào khung cắm 3U CompactPCI Serial Chassis |
| Dimensions (mm) | 160.00 x 100.00 (Kích thước mặt trước 4HP) |
| Vibration resistance | 2 Grms (5 Hz ~ 500 Hz) — Random |
| Certifications | EN50121-4, EN50121-3-2, EN50155, PICMG CompactPCI Serial, FCC Class A, CE, UKCA, RoHS |
Computing
| CPU | Intel Xeon W-11865MLE |
|---|---|
| Chipset | Intel RM590E |
| RAM | DDR4 3200 MHz · 1 slots · up to 64GB |
| Storage | 2× M.2 2280 M-Key (SATA III) |
| GPU | Intel UHD Graphics for 11th Gen Intel processors |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 2× 2.5 Gbps Intel i226 · 2× 1 Gbps |
|---|---|
| USB | 3× USB USB Type-C 10 Gbps · 4× USB USB 3.2 5 Gbps (qua backplane) · 8× USB USB 2.0 480 Mbps (qua backplane) |
| Display outputs | 2× DisplayPort (qua USB Type-C Alt Mode) |
| Expansion | 8× CompactPCI Serial Backplane |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (14 items)
| MIC-3954D Series | 3U CPCI-Serial quad Mini-PCIe carrier board |
|---|---|
| MIC-3954E Series | 3U CPCI-Serial quad M.2 (1x E-Key, 3 x B-Key) carrier board for Wi-Fi/LTE/GPS module |
| MIC-3954F | 3U CPCI-S 4 x USB typeA, 2 x M.2 E key carrier board |
| MIC-3810 Series | 3U CPCI-Serial PCIe x8/x16 carrier board |
| MIC-3820 Series | 3U CPCI-Serial 2.5'' SATA SSD carrier board |
| MIC-3811 Series | 3U CPCI-Serial dual mini PCIe carrier to carrier i-Door module like DIO/AIO/CAN/COM/Wi-Fi, etc |
| MIC-3860 Series | 3U CPCI-Serial quad RJ45 or 4 M12 2.5 Gbps LAN board, with PoE support option |
| MIC-3861 Series | 3U CPCI-Serial 10 Gigabit Ethernet Board |
| MIC-3840-A1S1 | 3U CPCI-Serial 8-port DB62 COM Board |
| MIC-3812 Series | 3U CPCI-Serial MXM carrier board for type A/B/B+ module |
| MIC-3821 Series | 3U CPCI-Serial quad M.2 M-Key NvME carrier board |
| MIC-300A Series | 3U CPCI-Serial 84HP/44HP width, 3U/4U height chassis, with 8 slots backplane & mini fan |
| MIC-3890DC | 3U CPCI-Serial DC-DC power module, 110V in / 12V out, 300W |
| MIC-3890AC | 3U CPCI-Serial AC-DC power module, 12 V & 5 V output, 300 W |
