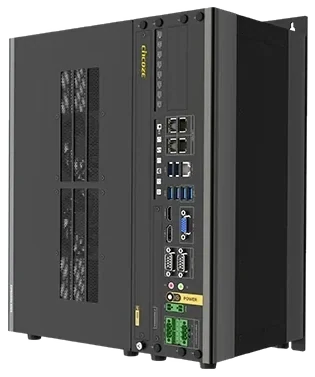

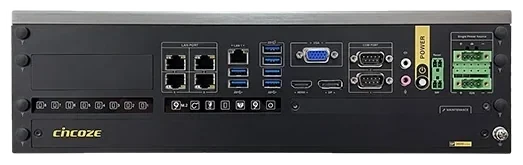

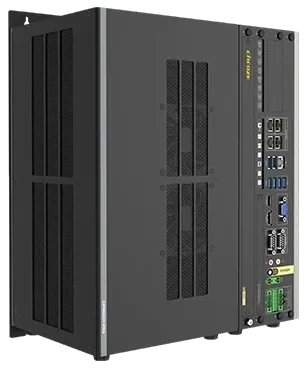

GP-3000-R10
High-performance embedded industrial computer supporting 8th/9th Gen Intel Xeon/Core processors, operating across a wide -40°C to 70°C temperature range, 9~48VDC power, MIL-STD-810G military shock/vibration resistance, and dual GPU card expansion via a GEB expansion box.
- Wide -40°C to 70°C operating temperature range
- Wide 9-48 VDC power input with over-voltage, over-current, and reverse-polarity protection
- Meets MIL-STD-810G military shock/vibration standards, EN 50121-3-2 railway certification, and E-mark certification
- Supports Intel® Xeon® / Core™ 8th/9th Gen processors (up to 80W TDP)
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model GP-3000-R10 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (35W TDP CPU, No GPU) |
|---|---|
| Power input | 9 - 48V |
| Power connector | 2x 3-pin Terminal Block |
| Mounting | Tower Stand, Desktop Mount, 19" Rack Mount, Flat Mount, Wall Mount |
| Dimensions (mm) | 105 x 195 x 370 |
| Weight (kg) | 8 |
| Vibration resistance | MIL-STD-810G — MIL-STD-810G |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, EN 50155 (EN 50121-3-2 Only), E-mark, EN 45545-2, EN 62368-1 |
Computing
| CPU | Intel Xeon / Core / Pentium / Celeron 8th/9th Gen |
|---|---|
| Chipset | Intel C246 |
| RAM | DDR4 SO-DIMM · 2 slots · up to 64GB |
| Storage | 4× 2.5" Front Accessible SATA HDD/SSD Bay (HotSwap, Max Height 15mm) · M.2 Key M 2280 Socket (PCIe x4 NVMe SSD / SATA SSD) |
| GPU | Integrated Intel UHD Graphics 630 / 610 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 1× 1 Gbps Intel I219-LM · 4× 1 Gbps Intel I210 |
| USB | 2× USB USB 3.2 Gen2 · 4× USB USB 3.2 Gen1 |
| Display outputs | 1× VGA · 1× HDMI · 1× DisplayPort |
| Expansion | 2× Mini-PCIe · 1× M.2 Key E · 1× M.2 Key M · 2× CMI Interface · 2× CFM Interface · 2× SIM Socket |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (20 items)
| GEB-3301-R10 | GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots |
|---|---|
| GEB-3601-R10 | GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots |
| CMI-LAN01-R12/UB1412 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port |
| CMI-M12LAN01-R12/UB1410 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN |
| CMI-XM12LAN01-R10/UB1410 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-2P5GLAN02-R10/UB1412 | CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port |
| CMI-10GLAN02-R10/UB1428 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-10GXM12LAN02-R10/UB1437-R10 | CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector |
| CMI-CAN01-R10/UB1438-R10 | CMI Module with 2x CAN FD Ports |
| CMI-COM04-R10/UB1403 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) |
| CMI-DIO04-R11/UB1418 | CMI Module with 16DIO (8in 8out) |
| MEC-USB-M102-30/UB1414 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports |
| CFM-PoE07-R10 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-PoE01 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN03-R11 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| RM01-R10 | 19" Rack Mount Kit for GP-3000 |
| RM02-R10 | 19" Rack Mount Kit for GP-3000/GEB-33 Series |
| RM03-R10 | 19" Rack Mount Kit for GP-3000/GEB-36 Series |
| SDR-480-24 | DIN Rail Power Supply 480W 24V |
| HEP-1000-24 | Power Supply 1000W 24V |
