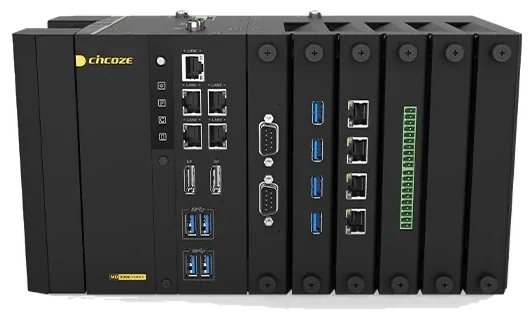

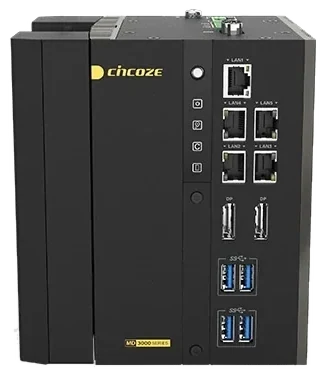

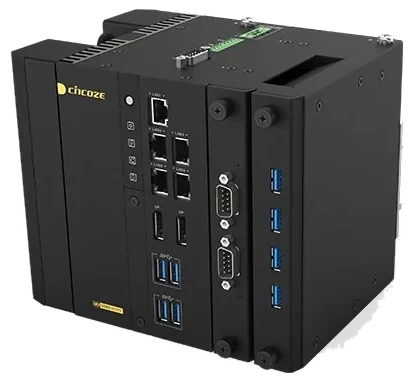

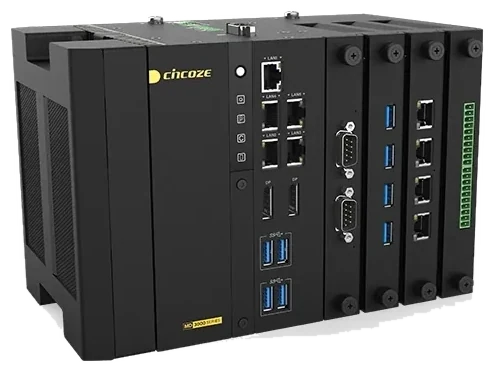

MD-3000-R11

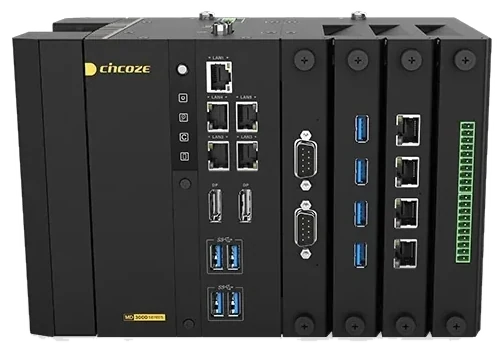

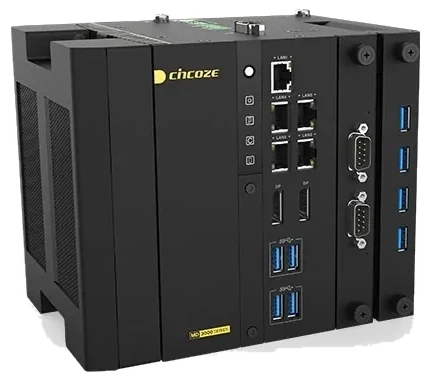

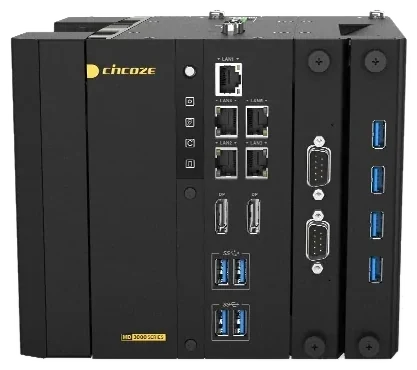

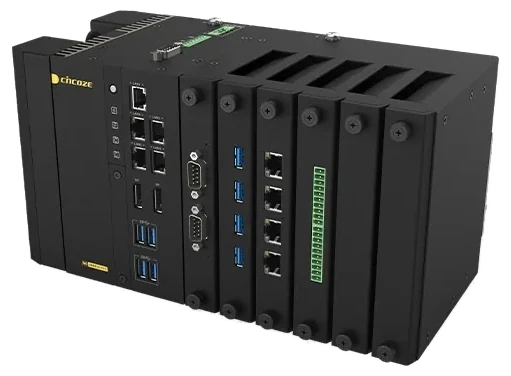

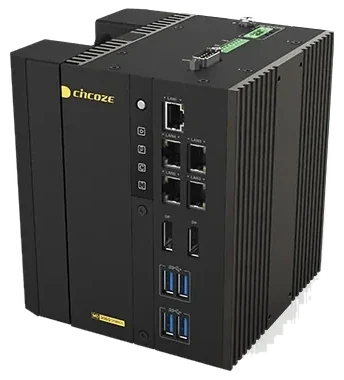

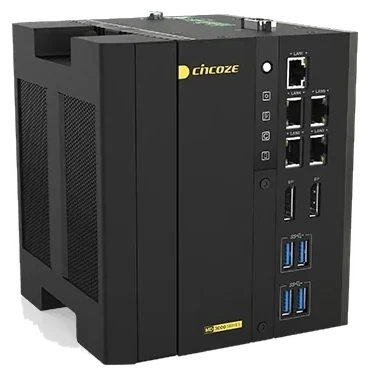

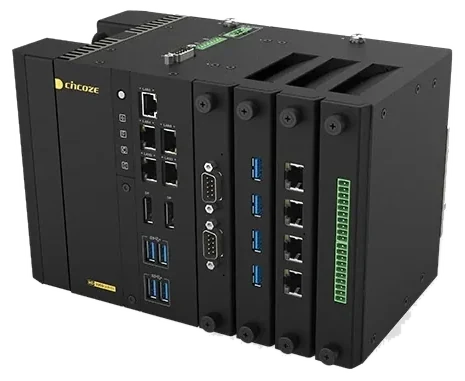

High-performance DIN-Rail mount industrial computer, a compact design just 150 mm tall. The system delivers outstanding reliability in harsh environments with a -40°C to 65°C operating temperature range, 9-48 VDC power, industrial-grade shock/vibration resistance, and expansion up to 6 Scalable Expansion Deck (SED) slots.
- Compact DIN-Rail design (150 mm tall), with all operating interfaces on the front panel
- Wide -40°C to 65°C operating temperature range with Dynamic Thermal Mechanism and Smart OTP cooling technology
- Wide 9 - 48 VDC power input, supporting over-voltage, over-current, and reverse-polarity protection modes
- Meets industrial shock, vibration, and EMC compatibility standards (EN 61000-6-2/4, EN 62368-1)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model MD-3000-R11 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 65 °C (-40°C to 65°C with 35W TDP CPU; -40°C to 55°C with 45W TDP CPU; -40°C to 45°C with 65W TDP CPU) |
|---|---|
| Power input | 9 - 48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Wall Mount, DIN-RAIL Mount |
| Dimensions (mm) | 135.5 x 132 x 152.2 |
| Weight (kg) | 3.03 |
| Vibration resistance | 3 Grms — Random Vibration: Operating, 3 Grms, 5-500 Hz (IEC60068-2-64); Sinusoidal: 1 Grms, 10-500 Hz (IEC60068-2-6) |
| Certifications | EN 61000-6-2, EN 61000-6-4, CE, UKCA, FCC, ICES-003 Class A, UL, cUL, CB, IEC, EN 62368-1 |
Computing
| Chipset | Intel R680E |
|---|---|
| RAM | DDR5 SO-DIMM · 2 slots · up to 96GB |
| Storage | M.2 Key M Type 2280 (PCIe Gen3 x4) · M.2 Key M Type 2280 (PCIe Gen3 x4 / SATA 3.0) |
| GPU | Integrated Intel UHD Graphics 770 / 730 / 710 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 1× RS-232/422/485 (Supports 5V/12V) |
|---|---|
| LAN | 1× 1 GbE Intel I219 · 4× 1 GbE Intel I210 |
| USB | 4× USB USB 3.2 Gen1x1 (5Gbps) |
| Display outputs | 2× DisplayPort |
| Expansion | 1× PCIe Interface |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (20 items)
| SED-201-R11 | 2-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules |
|---|---|
| SED-401-R11 | 4-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules |
| SED-402-R11 | 4-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules and 2 Storage Modules |
| SED-601-R11 | 6-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules and 2 Storage Modules |
| SEM-LAN101-R10 | Scalable Expansion Module with 4x 1GbE LAN Ports, RJ45 Connector, 1 Deck |
| SEM-MLAN101-R10 | Scalable Expansion Module with 4x 1GbE LAN Ports, M12 A-Coded Connector, 1 Deck |
| SEM-POE201-R10 | Scalable Expansion Module with 4x 1GbE PoE Ports, RJ45 Connector, 2 Decks |
| SEM-MPOE201-R10 | Scalable Expansion Module with 4x 1GbE PoE Ports, M12 A-Coded Connector, 2 Decks |
| SEM-10GLAN101-R10 | Scalable Expansion Module with 2x 10GbE LAN Ports, RJ45 Connector, 1 Deck |
| SEM-10GPOE201-R10 | Scalable Expansion Module with 2x 10GbE PoE Ports, RJ45 Connector, 2 Decks |
| SEM-USB101-R10 | Scalable Expansion Module with 4x USB3.2 Gen1 (5Gbps), Type A, 1 Deck |
| SEM-COM101-R10 | Scalable Expansion Module with 2x RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck |
| SEM-ICOM101-R10 | Scalable Expansion Module with 2x Isolated RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck |
| SEM-DIO101-R10 | Scalable Expansion Module with 16x Isolated DIO (8-in/8-out), 20-pin Terminal Block, 1 Deck |
| SEM-M2B101-R10 | Scalable Expansion Module with 1x M.2 Key B Socket Type 2242/3052/2260/2280, 1 Deck |
| SEM-M2E101-R10 | Scalable Expansion Module with 1x M.2 Key E Socket Type 2230, 1 Deck |
| SEM-SAT101-R10 | Scalable Expansion Module with 1x 2.5” HDD/SSD SATA Drive Bay, 1 Deck |
| SDR-480-24 | DIN Rail Power Supplies 480W 24V 20A PFC Function, SDR-480-24 |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
| WALL01-R10 | Wall Mount Kit for DA & MD Series |
