- -40~70°COperating temp
- Fan-cooledCooling
- 9–48 VDCPower input
- 2COM ports
- 5LAN ports

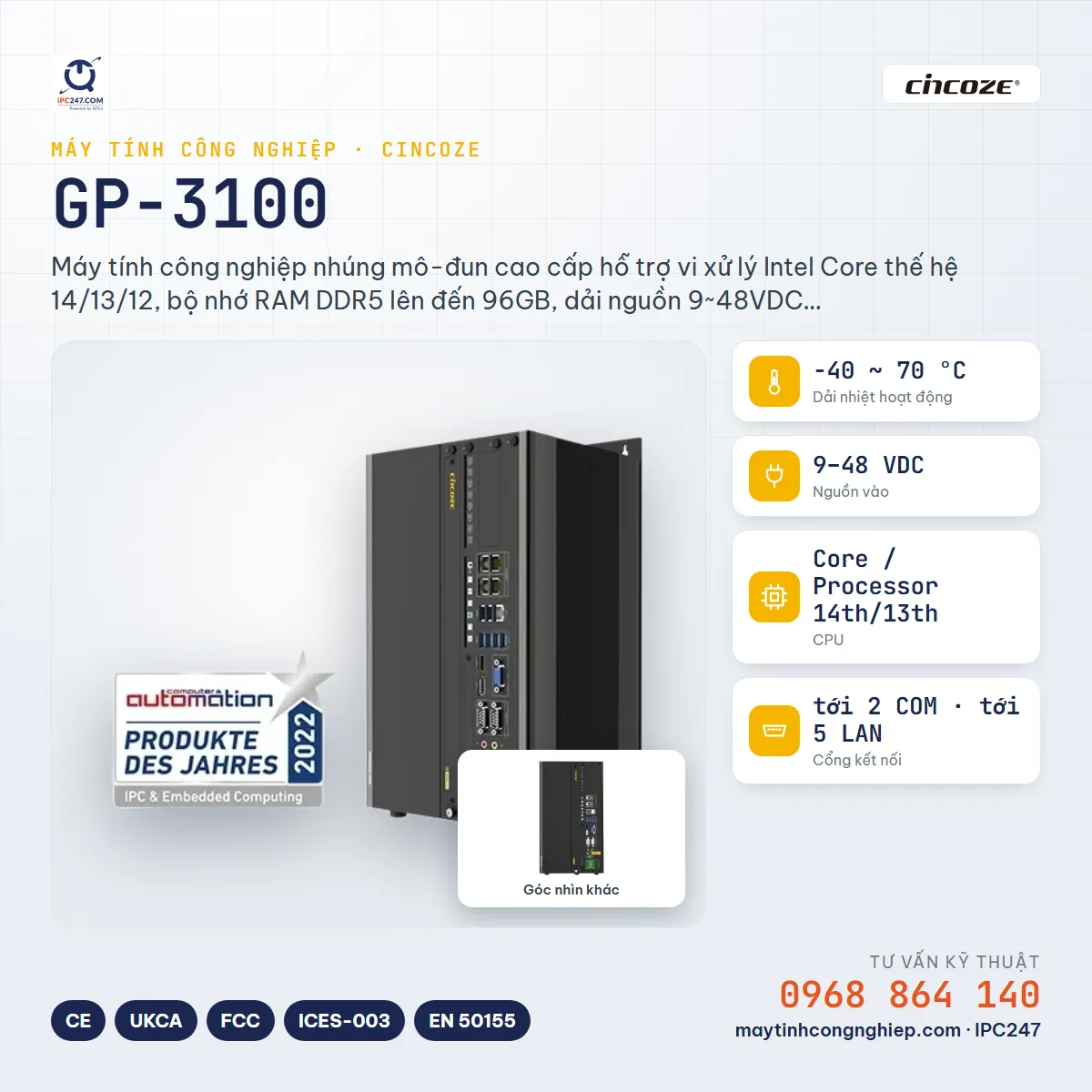

GP-3100-R10
Premium modular embedded industrial computer supporting 14th/13th/12th Gen Intel Core processors, up to 96GB of DDR5 RAM, a 9~48VDC power range, a -40°C to 70°C operating temperature range, MIL-STD-810H shock/vibration resistance, and dual GPU expansion via a GEB box.
- Wide -40°C to 70°C operating temperature range
- Wide 9-48VDC power input with over-voltage, over-current, and reverse-polarity protection
- Meets MIL-STD-810H military shock/vibration standards, EN 50121-3-2 (railway), and E-mark (automotive) certification
- Supports Intel® Core™ i9/i7/i5/i3 14th/13th/12th Gen processors (up to 65W TDP)
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model GP-3100-R10 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (CPU 35W TDP) |
|---|---|
| Power input | 9 - 48V |
| Power connector | 2x 3-pin Terminal Block |
| Mounting | Tower Stand, Desktop Mount, 19" Rack Mount, Flat Mount, Wall Mount |
| Dimensions (mm) | 105 x 195 x 370 |
| Weight (kg) | 7.7 |
| Vibration resistance | MIL-STD-810H — MIL-STD-810H |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, EN 50155 (EN 50121-3-2 Only), E-mark, EN 45545-2, UL, cUL, CB, IEC, EN 62368-1 |
Computing
| CPU | Intel Core / Processor 14th/13th/12th Gen |
|---|---|
| Chipset | Intel R680E |
| RAM | DDR5 SO-DIMM · 2 slots · up to 96GB |
| Storage | 4× 2.5" Front Accessible SATA HDD/SSD Bay (HotSwap, Max Height 15mm) · M.2 Key M Type 2280 Socket (PCIe Gen 4x4 / SATA) |
| GPU | Integrated Intel UHD Graphics 770 / 730 / 710 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 4× 2.5 Gbps Intel I225 · 1× 1 Gbps Intel I219 |
| USB | 6× USB USB 3.2 Gen1x1 (5Gbps) |
| Display outputs | 1× VGA · 1× HDMI · 1× DisplayPort |
| Expansion | 1× M.2 Key M · 1× M.2 Key E · 1× M.2 Key B · 1× M.2 Key B · 2× CMI Interface · 2× CFM Interface |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (32 items)
| GEB-3301-R10 | GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots |
|---|---|
| GEB-3601-R10 | GPU Expansion Box with 2x PCIex16 (PCIex8 Signal), 1x PCIe x4, and 1x PCIe x1 Slot |
| CMI-LAN01-R12 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port |
| CMI-M12LAN01-R12 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-2P5GLAN02-R10 | CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port |
| CMI-10GLAN02-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-10GXM12LAN02-R10 | CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector |
| CMI-CAN01-R10 | CMI Module with 2x CAN FD Ports |
| CMI-DIO04-R11 | CMI Module with 16DIO (8in 8out) |
| CMI-COM04-R10 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-PoE07-R10 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN03-R11 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| UB1812-R10 | Universal Bracket with 4x RJ45 Cutout |
| UB1828-R10 | Universal Bracket with 2x RJ45 Cutout |
| UB1810-R10 | Universal Bracket with 4x M12 Cutout |
| UB1830-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB1818-R10 | Universal Bracket with DIO Cutout |
| UB1803-R10 | Universal Bracket with 2x DB9 Cutout |
| UB1837-R10 | Universal Bracket with 2x M12 X-coded Cutout |
| UB1838-R10 | Universal Bracket with 2x DB9 and 1× Switch Cutout for CMI-CAN Expansion |
| RM01-R10 | 19" Rack Mount Kit for GP-3000 |
| RM02-R10 | 19" Rack Mount Kit for GP-3000/GEB-33 Series |
| RM03-R10 | 19" Rack Mount Kit for GP-3000/GEB-36 Series |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug |
| SDR-480-24 | DIN Rail Power Supply 480W 24V |
| HEP-1000-24 | Power Supply 1000W 24V |
| US Power Cord | 1.8M US Power Cord |
| EU Power Cord | 1.8M EU Power Cord |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug |
