- -40~70°COperating temp
- Fan-cooledCooling
- 9–48 VDCPower input
- 2COM ports
- 2LAN ports

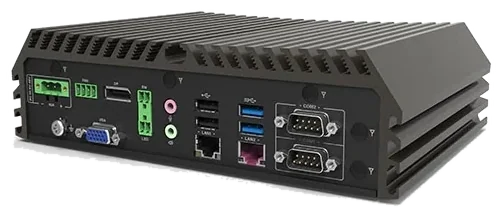

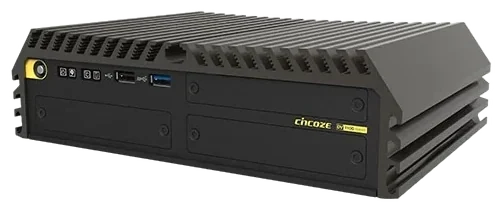

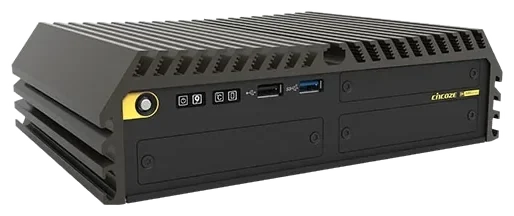

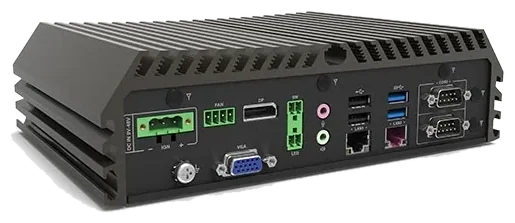

DV-1100-R10
Rugged embedded industrial computer, compact design, operating across a wide -40°C to 70°C temperature range, supporting 9-48V DC power, MIL-STD-810H shock/vibration resistance, equipped with 14th/13th/12th Gen Intel Core and Bartlett Lake-S processors.
- Wide -40°C to 70°C operating temperature range
- Wide 9 - 48 VDC power input with over-voltage, over-current, and reverse-polarity protection
- Fanless, cableless, jumper-free design with a rugged one-piece metal housing
- MIL-STD-810H military shock/vibration certified and EN 50121-3-2 railway certified
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model DV-1100-R10 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (35W TDP Processor (-40°C to 70°C); 45W TDP Processor (-40°C to 60°C with External Fan Kit); 65W TDP Processor (-40°C to 55°C with External Fan Kit)) |
|---|---|
| Power input | 9 - 48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Wall Mount, DIN-RAIL Mount, VESA Mount |
| Dimensions (mm) | 224.1 x 162 x 62 |
| Weight (kg) | 2.52 |
| Vibration resistance | MIL-STD-810H |
| Certifications | UL, cUL, CB, IEC 62368-1, EN 62368-1, CE, UKCA, FCC, ICES-003 Class A, EN IEC 61000-6-4, EN IEC 61000-6-2, EN 50155 (EN 50121-3-2 Only), E-mark |
Computing
| CPU | Intel Core / Processor Series (Bartlett Lake-S / Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S) |
|---|---|
| Chipset | Intel H610E |
| RAM | DDR5 SO-DIMM · 1 slots · up to 48GB |
| Storage | 2.5" SATA HDD/SSD Bay (SATA 3.0) · M.2 Key M Type 2280 Socket (PCIe Gen 4x4 / SATA) · M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / SATA) · M.2 Key B Type 3042 Socket (PCIe Gen 3x2 / USB2.0) |
| GPU | Intel UHD Graphics 770 / 730 / 710 |
| PCI/PCIe expansion slots | 0 |

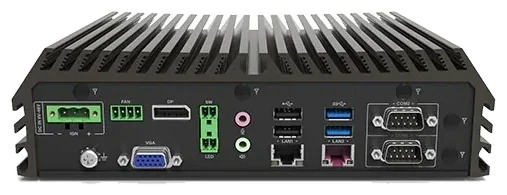

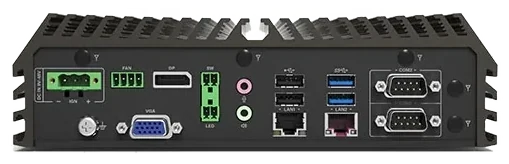

Connectivity & I/O
| COM | 2× RS-232/422/485 with Auto Flow Control (Supports 5V/12V) |
|---|---|
| LAN | 1× 2.5GbE Intel I226 · 1× 1GbE Intel I219 |
| USB | 1× USB 10Gbps USB 3.2 Gen 2x1 Type A · 2× USB 5Gbps USB 3.2 Gen 1x1 Type A · 3× USB 480Mbps USB 2.0 Type A |
| Display outputs | 1× DisplayPort · 1× VGA |
| Expansion | 1× M.2 Key B Socket · 1× M.2 Key B Socket · 1× M.2 Key E Socket · 1× M.2 Key M Socket · 1× SIM Socket · 3× CMI Interface · 1× CFM Interface |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (23 items)
| CMI-DP01-R10 | CMI Module with 1x DisplayPort |
|---|---|
| CMI-HD03-R10 | CMI Module with 1x HDMI Port |
| CMI-COM06-R10 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) |
| CMI-DIO06-R10 | CMI Module with 16DIO (8in 8out) |
| CFM-IGN04-R10 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| UB1603-R10 | Universal Bracket with 2x DB9 Cutout |
| UB1606-R10 | Universal Bracket with DP Cutout |
| UB1608-R10 | Universal Bracket with HDMI Cutout |
| UB1611-R10 | Universal Bracket with 2x RJ45 Cutout |
| UB1618-R20 | Universal Bracket with DIO Cutout |
| UB1633-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB (M.2 interface) Expansion |
| UB1634-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| FAN-EX104 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| MEC-LAN-2002i | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board, 2x RJ45 Connector |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board, 2x DB9 Connector |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board, 4x DB9 Connector |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board, 2x DB9 Connector |
| MEC-USB-2002C | M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0°C~+70°C), 2x USB Type C Connector, Cervoz |
| MEC-USB-2002-SP | M.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C), w/ IDE 20P 90° Cable, 2x USB Type A Connector, Cervoz |
