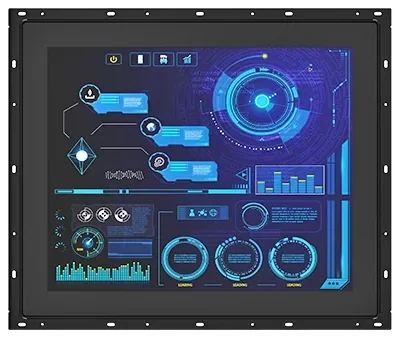

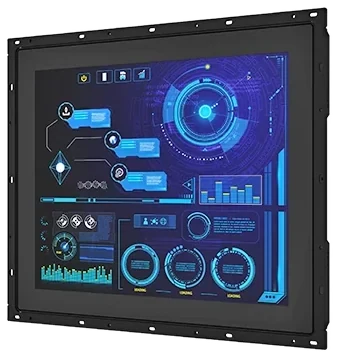

CO-119C-R10
19-inch industrial Open Frame touch monitor, flexible CDS technology design, supporting operating temperature range from 0°C to 50°C, IP65 dust and waterproof front panel along with versatile mounting methods.
- Front panel rated IP65 dust and water resistant according to IEC60529
- Supports operating temperature range from 0°C to 50°C in industrial environments
- Supports multiple mounting methods: Flat Mount, Standard Mount, VESA Mount, Rack Mount
- Pre-installed mounting frame supporting 11 adjustable thickness levels
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (with Industrial Grade peripherals; Ambient with air flow) |
|---|---|
| Mounting | Flat Mount, Standard Mount, VESA Mount, Rack Mount |
| Dimensions (mm) | 472.8 x 397.5 x 63 |
| Weight (kg) | 6.91 |
| IP protection rating | Front Panel IP65 Compliant |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, CISPR 32 Conducted & Radiated: Class A, EN/BS EN 55032 Conducted & Radiated: Class A, EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A, EN/BS EN61000-3-3 Voltage fluctuations & flicker, FCC 47 CFR Part 15B Class A |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Display
| Screen size | 19" |
|---|---|
| Resolution | 1280 x 1024 |
| Brightness (nit) | 350 |
| Touch | Projected Capacitive Touch |
| Frame type | 5:4 |
| Front IP rating | IP65 |
