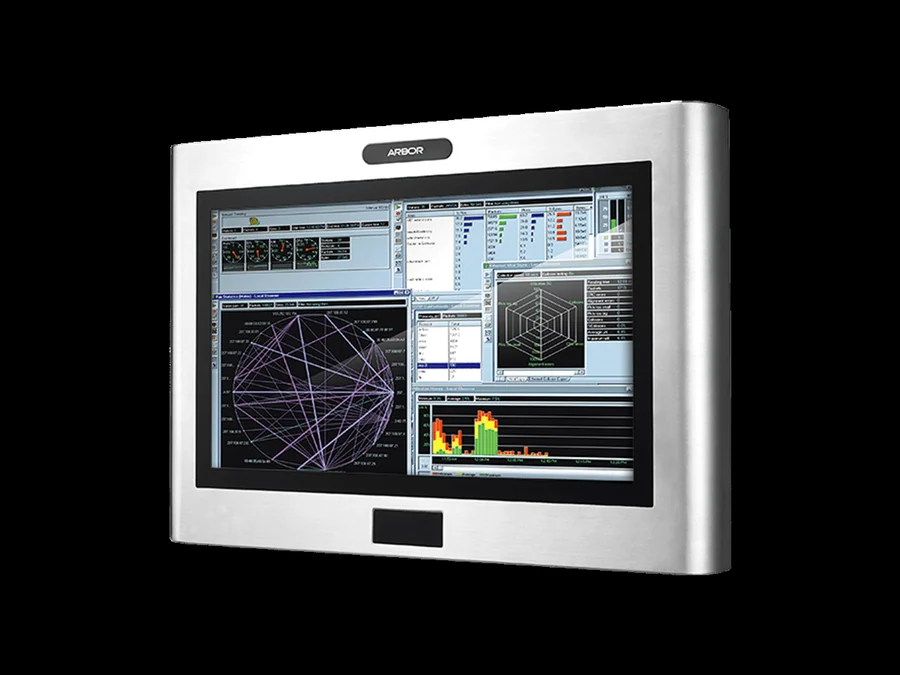

ASLAN-W922C-IP-6300G4
21.5" industrial panel PC with full stainless-steel body rated IP65 and waterproof connectors, -10~50°C operating temperature range, 10~36V DC input, fanless design. Intel Core i5-6300U 2.4GHz CPU, DDR4 4GB RAM (up to 16GB), Full HD 1920x1080 projected capacitive touchscreen.
- Full stainless-steel body rated IP65, waterproof connectors, suited for harsh/high-hygiene environments
- Fanless, -10~50°C operating temperature range, low power consumption (up to 38.1W excluding I/O cards)
- 21.5" FHD 1920x1080 display, capacitive touch, 250 cd/m² brightness
- Intel Core i5-6300U 2.4GHz CPU, DDR4 RAM up to 16GB, VESA-100 mount
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 50 °C |
|---|---|
| Power input | 10~36V |
| Mounting | VESA-100 |
| Dimensions (mm) | 620.3 x 423 x 62 |
| Weight (kg) | 11.56 |
| Vibration resistance | 5~500Hz, 1Grms Random (w/SSD) |
| IP protection rating | IP65 (full body, waterproof connectors) |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Core i5-6300U |
|---|---|
| RAM | DDR4-2133 SO-DIMM (4GB pre-installed) · 1 slots · up to 16GB |
| Storage | 2× 2.5" drive bay (default) · mSATA |
| GPU | Intel HD Graphics (integrated in i5-6300U) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 2× Gigabit (GbE, RJ-45) Intel i219LM (iAMT) + Intel i210IT |
| USB | 2× USB USB 2.0 |
| Expansion | 1× mSATA · 1× mPCIe · 1× mPCIe |
Display
| Screen size | 21.5" |
|---|---|
| Resolution | 1920 x 1080 (FHD) |
| Brightness (nit) | 250 |
| Touch | Projected capacitive touch panel |
| Frame type | Stainless steel chassis |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| PAC-60W1A-FSP-ES | 12V/5A 60W AC/DC Adapter Kit w/ Lock |
|---|---|
| 64/128/256GB SSD | 2.5" SSD MLC 64/128/256GB |
| WiFi-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
