- -20~60°COperating temp
- FanlessCooling
- 9–36 VDCPower input
- 8COM ports
- 4LAN ports
- 2PCIe slots

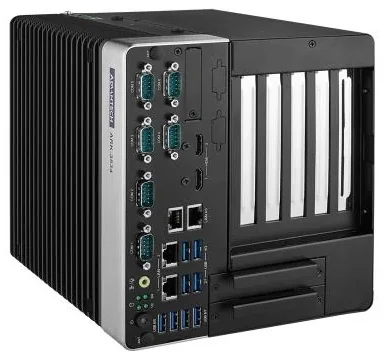

ARK-3534D-00A1
Advantech ARK-3534D fanless industrial embedded computer runs on a wide 9-36VDC power range, an extended -20 to 60°C temperature range, with 3 Grms vibration and 30 G shock resistance. It supports 12th/13th/14th Gen Intel Core LGA1700 processors, DDR5 memory up to 64GB, 3 independent displays, and a flexible expansion slot system (PCI, PCIe x4, PCIe x16).
- Supports 12th/13th/14th Gen Intel Core i3/i5/i7/i9 processors (LGA1700)
- Wide 9-36VDC power input
- DDR5 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 3 independent display outputs: 2x HDMI + 1x optional display module (DVI-D/DP/HDMI)
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (Up to 65W processor with extended temp peripherals with 0.7m/s air flow; with HDD: 0 ~ 40° C) |
|---|---|
| Power input | 9-36V |
| Mounting | Desk mounting, Wallmounting |
| Dimensions (mm) | 197.2 x 204 x 230 |
| Weight (kg) | 6.41 |
| Vibration resistance | 3 Grms — IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis (With SSD) |
| Certifications | CE, FCC Class B, CCC, BSMI, CB, UL, IEC 62443-4-2 |
Computing
| Chipset | Intel R680E |
|---|---|
| Socket | LGA1700 |
| RAM | DDR5 4800 MHz · 2 slots · up to 64GB |
| Storage | 2× 2.5" SATAIII HDD/SSD bay · M.2 2280 B key NVMe (PCIe x2) |
| GPU | Intel UHD Graphics 770 |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 4× RS-232/422/485 · 2× RS-232 · 2× RS-232 (optional via COM7/8 cable) |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 3× 10/100/1000/2500 Mbps Intel i225-LM |
| USB | 4× USB USB 3.2 Gen2 · 4× USB USB 3.2 Gen1 · 1× USB Internal USB 2.0 (Optional) |
| Display outputs | 2× HDMI · 1× Optional 3rd Display module (DVI-D / DP / HDMI) |
| Expansion | 1× M.2 E Key · 1× M.2 B Key · 2× PCI · 1× PCIe x4 · 1× PCIe x16 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (17 items)
| AMO-3509 | ARK-3534D fan kit |
|---|---|
| AMO-3509A | ARK-3534D fan kit for Nvidia A2 tensor |
| XARK-DPS-150AB-15 | Additional Power for add-on cards over 30Watts |
| 96PSA-A230W24P4-3 | AC to DC adapter, DC 24V 230W, -20 ~ 60 °C |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1700032693-11 | Power cable 3-pin 183cm, UK type |
| 1700000237 | Power cable, 3-Pin 183cm, PSE type |
| 1700031864-01 | 16bits DIO Cable(CN : GPIO01) |
| 1700026760-21 | Internal USB Cable(CN: USB9 need additional 2 pcs of 1930008655) |
| 1700029565-11 | COM7/8 cable (add screws 193A200001*2) |
| 1700030518-01 | 1 Port CANBus (add screws 193A200001*2) |
| 1700033651-01 | SATA cable for 3rd HDD/SSD (Screws 19310305C0*4pcs) |
| AMO-D001E | DVI-D module, support up to 1920x1080 @60Hz |
| AMO-D002E | DP module, support up to 4096x2160 @60Hz |
| AMO-D003E | HDMI module, support up to 1920x1080 @60Hz |
| AMO-I029A | TPM 2.0 Infineon SLB9670V2.0 |
