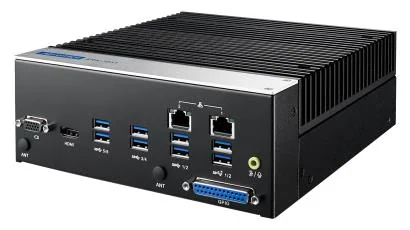

ARK-3531-00A1
Advantech ARK-3531-00A1 fanless industrial embedded computer supports 9th Gen Intel Core processors (LGA1151, 35W TDP). Built for durability with a -20°C to 60°C operating temperature range, wide 9-36V DC power input, 3 Grms vibration and 30G shock resistance, meeting the demands of 24/7 industrial operation.
- Fanless aluminum chassis rated IP40, operating reliably from -20°C to 60°C
- Wide 9-36V DC power input range with AT/ATX switching mode
- Withstands harsh environments: 3 Grms vibration and 30G shock resistance
- Desk mounting or wall mounting installation options
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (35W Processor with extended temp peripherals, with 0.7m/s air flow) |
|---|---|
| Power input | 9-36V |
| Mounting | Desk mounting, Wall mount |
| Dimensions (mm) | 200 x 75 x 215 |
| Weight (kg) | 3.2 |
| Vibration resistance | 3 Grms — IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis (With SSD) |
| IP protection rating | IP40 |
| Certifications | CE/FCC Class B, CCC, BSMI, CB(62368), UL(62368), RoHS |
Computing
| Chipset | H370 |
|---|---|
| Socket | LGA1151 |
| RAM | DDR4 2666 MHz · 2 slots · up to 64GB |
| Storage | 2× 2.5" SATAIII HDD Bay · mSATA |
| GPU | Intel UHD Graphics 630 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 4× RS-232 · 4× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 1× 10/100/1000 Mbps Intel I210 |
| USB | 2× USB USB 3.1 Gen2 · 6× USB USB 3.0 |
| Display outputs | 1× VGA · 1× HDMI |
| Expansion | 1× Mini PCIe · 1× M.2 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| 96PSA-A150W19P4-4 | AC-to-DC Adapter, DC19V 150W, 0 ~ 40° C |
|---|---|
| 96PSA-A230W24P4-3 | AC to DC adapter, DC 24V 230W, -20 ~ 60° C |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1700032693-11 | Power Cord BSI 3P 10A 250V 183cm |
| AMO-I026A | Expansion M.2 B key 2280 kit for USB module |
| AMO-I026B | Expansion M.2 B Key 2280 kit for PCIe/SATA module |
| AMO-I026C | Expansion M.2 M Key 2280 kit for PCIe/SATA module |
