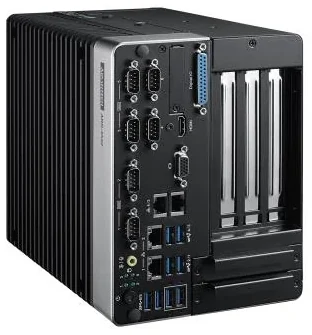

ARK-3532B-00A1
Advantech ARK-3532B-00A1 fanless industrial embedded computer supports a wide 12-36V DC power range, -20 to 60°C operating temperature, and industrial-grade impact and vibration resistance. It features an LGA1200 socket for 10th Gen Intel Xeon W/Core i processors, 2 PCIe expansion slots (x4 and x16), 4 GbE LAN ports, 8 USB ports, 6 COM ports, and an audio port.
- Wide 12-36VDC power input range
- Extended -20°C to 60°C operating temperature range, with 3 Grms vibration and 30G shock resistant design
- Flexible expansion with 1x PCIe x4 slot and 1x PCIe x16 slot (supporting cards up to 120W)
- Supports 10th Gen Intel Xeon W and Core i3/i5/i7/i9 processors on LGA1200 socket
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (Using CPU up to 65W with extended-temperature components and 0.7m/s airflow; 0 ~ 40°C when using HDD) |
|---|---|
| Power input | 12-36V |
| Mounting | Desk mounting, Wallmount |
| Dimensions (mm) | 156 x 204 x 230 |
| Weight (kg) | 5.705 |
| Vibration resistance | 3 Grms — IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis (when using SSD) |
| Certifications | CE, FCC Class B, CCC, BSMI, CB, UL, RoHS |
Computing
| Chipset | W480E |
|---|---|
| Socket | LGA1200 |
| RAM | DDR4 2933 MHz · 2 slots · up to 64GB |
| Storage | 2× 2.5" SATAIII HDD/SSD bay · mSATA |
| GPU | Intel UHD Graphics 630 |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 4× RS-232/422/485 · 2× RS-232 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 3× 10/100/1000 Mbps Intel I210 |
| USB | 4× USB USB 3.2 (10Gbps) · 2× USB USB 3.0 · 2× USB Independent USB 3.0 |
| DIO | 8 in / 8 out |
| Display outputs | 1× VGA · 1× HDMI · 1× Optional 3rd display (DVI-D / DP / HDMI) |
| Expansion | 1× Mini PCIe · 1× M.2 · 1× PCIe x4 · 1× PCIe x16 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (12 items)
| 96PSA-A230W24P4-3 | AC to DC power adapter, DC 24V 230W, -20 ~ 60°C |
|---|---|
| 1702002600 | 3-pin power cord 183cm, USA standard |
| 1702002605 | 3-pin power cord 183cm, EU standard |
| 1700032693-11 | 3-pin power cord 183cm, UK standard |
| 1700000237 | 3-pin power cord 183cm, PSE standard |
| AMK-A0035 | Internal expansion kit for 2 x 2.5-inch HDD/SSD bays (max height 15mm) |
| AMO-D001E | DVI-D display output module |
| AMO-D002E | DisplayPort display output module |
| AMO-D003E | HDMI display output module |
| AMO-I029A | Modun TPM 2.0 Infineon SLB9670V2.0 |
| AMO-3508 | Cooling fan kit for ARK-3532B/C |
| XARK-DPS-150AB-15 | A/D power adapter 100-240V 150W 12V C14 LOCKABLE DC JACK |
