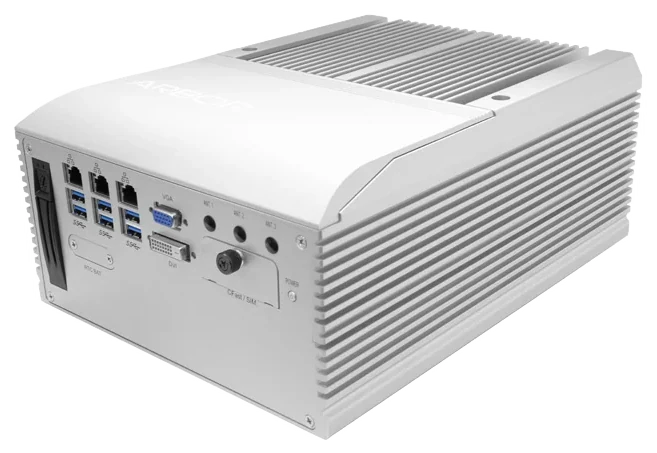

MaytinhcongnghiepFPC-9002-L2U4
Fanless industrial box PC rated for -20~55°C operating temperature (with airflow, for 35W~65W TDP CPUs), wide-range DC 9~36V power input with ignition control and delayed power on/off, aluminum vibration/shock-resistant frame, wall-mount. Equipped with an Intel Xeon E3 or 6th/7th Gen Core i7/i5/i3 CPU, up to 32GB DDR4, rich I/O with 10 USB ports, 5 GbE LAN ports, 4 COM ports.
- Fanless design
- Wide-range DC 9~36V power input
- Versatile display output: DisplayPort + HDMI + VGA + DVI, supporting 3 independent displays
- Rich I/O: 10 USB, 5 GbE LAN, 4 COM
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 55 °C (ambient with air flow, CPU TDP 35W~65W, fanless) |
|---|---|
| Power input | 9~36V |
| Power connector | 4-pin DC input terminal block |
| Mounting | Wall mount (wall-mount) |
| Dimensions (mm) | 225 x 292 x 120 |
| Weight (kg) | 7 |
| Vibration resistance | 3 Grms/5~500Hz/random, operating |
| Certifications | CE, FCC Class A |
Computing
| RAM | DDR4 · 2 x 260-pin SO-DIMM slots · up to 32GB |
|---|---|
| Storage | 2× 2.5" drive bay · CFast socket (externally accessible) |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9) · 2× RS-232 (DB-9) |
|---|---|
| LAN | 2× GbE Intel WGI211AT · 1× GbE Intel WGI219LM w/ iAMT 11.0 · 2× GbE Intel WG82583V |
| USB | 6× USB USB 3.0/2.0 · 4× USB USB 3.0/2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 1× DisplayPort · 1× HDMI · 1× VGA (DB-15) · 1× DVI-D |
| Expansion | 2× Mini-card · 1× SIM socket |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (14 items)
| WMK-7000 | Wall-mount kit for FPC-7XXX Series |
|---|---|
| PAC-120W6B-FSP | 120W AC/DC adapter kit w/ 2-pin/3-pin/4-pin block |
| PAC-180W6C-FSP | 180W AC/DC adapter kit w/ 2-pin/3-pin/4-pin block |
| 240GB SSD | Intel 2.5" 240GB SATA III SSD kit |
| WIFI-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2x30cm internal wires |
| ANT-H11 | 1 x 2dBi HSUPA antenna |
| ANT-D11 | 1 x WiFi dual-band 2.4G/5G antenna |
| Core i7-7700 | Intel 7th Gen Core i7-7700 processor, L2/8M, 3.6G |
| Core i7-7700T | Intel 7th Gen Core i7-7700T processor, L2/8M, 2.9G |
| Core i5-7500 | Intel 7th Gen Core i5-7500 processor, L2/6M, 3.4G |
| Core i5-7500T | Intel 7th Gen Core i5-7500T processor, L2/6M, 2.7G |
| Core i3-7101TE | Intel 7th Gen Core i3-7101TE processor, L2/3M, 3.4G |
| Xeon E3-1268L-V5 | Intel 6th Gen Xeon E3-1268L processor, L2/8M, 2.4G |
| MK-4C-4G/8G/16G | DDR4-2133 4GB/8GB/16GB SDRAM DIMM kit |
