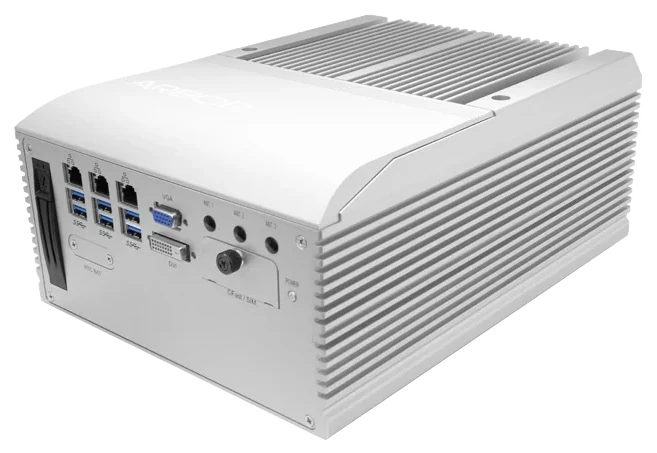

MaytinhcongnghiepFPC-9001-L2U4
Fanless industrial box PC rated for -20~55°C operating temperature, wide-range DC 9~36V power supporting Ignition control and delayed on/off, rich I/O (10 USB, 5 GbE LAN, 4 COM), supports 2 SATA SSDs with RAID 0/1; uses an Intel Xeon E3 or 6th/7th Gen Core i7/i5/i3 CPU on an LGA1151 socket.
- Fanless design
- Wide-range DC power (9~36V)
- Simultaneous 3 independent displays via DisplayPort, HDMI, VGA, DVI
- Rich I/O: 10 x USB, 5 x GbE LAN, 4 x COM
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 55 °C (ambient w/ air flow, w/ CPU TDP 35W~65W, fanless) |
|---|---|
| Power input | 9~36V |
| Power connector | 4-pin DC input terminal block, combined with remote power on/off switch |
| Mounting | Wall-mount |
| Dimensions (mm) | 225 x 292 x 120 |
| Weight (kg) | 7 |
| Vibration resistance | 3 Grms/5~500Hz/random operation w/ SSD |
| Certifications | CE, FCC Class A |
Computing
| CPU | Xeon E3 / 6th & 7th Gen Core i7/i5/i3 (LGA1151) |
|---|---|
| Chipset | Intel C236 |
| Socket | LGA1151 |
| RAM | DDR4 · 2 slots · up to 32GB |
| Storage | 2× SATA 2.5" drive bay · CFast (external access) |
| GPU | Integrated Intel HD Graphics |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9) · 2× RS-232 (DB-9) |
|---|---|
| LAN | 5× GbE 2x Intel WGI211AT, 1x WGI219LM (iAMT 11.0), 2x WG82583V |
| USB | 6× USB USB 3.0/2.0 · 4× USB USB 3.0/2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 1× DisplayPort · 1× HDMI · 1× VGA (DB-15) · 1× DVI-D |
| Expansion | 2× Mini-card · 1× PCIe x16 · 1× PCI |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (14 items)
| WMK-7000 | Wall-mount kit for FPC-7XXX Series |
|---|---|
| PAC-120W6B-FSP | 120W AC/DC adapter kit w/ 2-pin/3-pin/4-pin block |
| PAC-180W6C-FSP | 180W AC/DC adapter kit w/ 2-pin/3-pin/4-pin block |
| 240GB SSD | Intel 2.5" 240GB SATAIII SSD kit |
| WIFI-AT4550 | Atheros QCNFA324 Wi-Fi module w/ 2x30cm internal wires |
| ANT-H11 | 2dBi HSUPA antenna |
| ANT-D11 | WiFi dual-band 2.4G/5G antenna |
| Core i7-7700 | Intel 7th Gen Core i7-7700 processor, L2/8M, 3.6G |
| Core i7-7700T | Intel 7th Gen Core i7-7700T processor, L2/8M, 2.9G |
| Core i5-7500 | Intel 7th Gen Core i5-7500 processor, L2/6M, 3.4G |
| Core i5-7500T | Intel 7th Gen Core i5-7500T processor, L2/6M, 2.7G |
| Core i3-7101TE | Intel 7th Gen Core i3-7101TE processor, L2/3M, 3.4G |
| Xeon E3-1268L-V5 | Intel 6th Gen Xeon E3-1268L processor, L2/8M, 2.4G |
| MK-4C-4G/8G/16G | DDR4-2133 4GB/8GB/16GB SDRAM DIMM kit |
