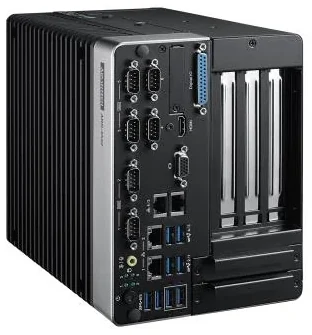

ARK-3532C-00A1
Máy tính nhúng công nghiệp không quạt hỗ trợ dải nhiệt độ hoạt động rộng -20 đến 60°C, nguồn vào DC 12-36V, thiết kế khung nhôm chắc chắn lắp đặt bàn. Hỗ trợ vi xử lý Intel 10th Gen Xeon W / Core i3/i5/i7/i9 (LGA1200) và RAM DDR4 tối đa 64GB.
- Thiết kế công nghiệp không quạt, vỏ nhôm tản nhiệt hiệu quả
- Dải nguồn vào DC rộng 12 - 36V
- Dải nhiệt độ hoạt động rộng từ -20°C đến 60°C
- Hỗ trợ bộ xử lý Intel 10th Gen Xeon W và Core i3/i5/i7/i9 (Socket LGA1200)
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (Up to 65W processor with extended temp peripherals with 0.7m/s air flow (0 ~ 40°C with HDD)) |
|---|---|
| Power input | 12-36V |
| Mounting | Desk mounting |
| Dimensions (mm) | 156 x 204 x 230 |
| Weight (kg) | 5.705 |
| Vibration resistance | 3 Grms — IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis (With SSD) |
| Certifications | CE, FCC Class B, CCC, BSMI, CB, UL, RoHS |
Computing
| Chipset | Intel W480E |
|---|---|
| Socket | LGA1200 |
| RAM | DDR4 2933 MHz · 2 slots · up to 64GB |
| Storage | 2× 2.5" SATAIII HDD/SSD · 1× mSATA |
| GPU | Intel UHD Graphics 630 |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 6× 4 x RS-232/422/485, 2 x RS-232 |
|---|---|
| LAN | 4× 10/100/1000 Mbps 1 x Intel I219-LM, 3 x Intel I210 |
| USB | 8× USB 4 x USB 3.2 (10Gbps), 2 x USB 3.0, 2 x Independent USB 3.0 |
| Display outputs | 1× VGA · 1× HDMI · 1× Optional 3rd Display (DVI-D / DP / HDMI) |
| Expansion | 1× PCIe x4 · 2× PCI · 1× Full-size Mini PCIe · 1× M.2 Key E 2230 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (17 items)
| 96PSA-A230W24P4-3 | AC to DC adapter, DC 24V 230W, -20 ~ 60 °C |
|---|---|
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1700032693-11 | Power cable 3-pin 183cm, UK type |
| 1700000237 | Power cable, 3-Pin 183cm, PSE type |
| AMK-A0035 | 2 x internal HDD bays kit (Max Height 15mm) |
| AMO-D001E | DVI-D module |
| AMO-D002E | DP module |
| AMO-D003E | HDMI module |
| AMO-I029A | TPM 2.0 Infineon SLB9670V2.0 |
| 20706WX9HS0125 | Windows 10 IoT Enterprise 2019 LTSC 64bit for Xeon/Core i9/Core i7 |
| 20706WX9VS0129 | Windows 10 IoT Enterprise 2019 LTSC 64bit for Celeron/Core i5/Core i3 |
| 20706WX1HS0102 | img W10 21HL ARK-3532 64b 21H2 ENU for Xeon/Core i7/Core i9 |
| 20706WX1VS0102 | img W10 21VL ARK-3532 64b 21H2 ENU for Core i3/Core i5 |
| 20706WX1ES0102 | img W10 21EL ARK-3532 64b 21H2 ENU for Celeron |
| 20706WLH1S0016 | Windows 11 IoT Enterprise 2024 LTSC 64bit for Xeon/Core i9/Core i7 |
| 20706WLV1S0016 | Windows 11 IoT Enterprise 2024 LTSC 64bit for Celeron/Core i5/Core i3 |
