MXM-A4500-R10

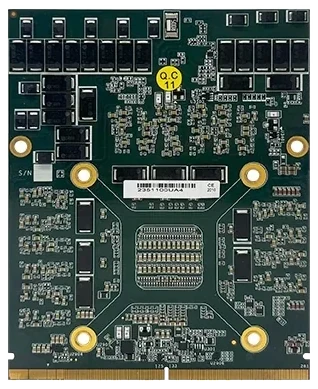

Industrial embedded MXM 3.1 Type B graphics card kit, 80W power consumption, with included heatsink and thermal pad. Equipped with an NVIDIA RTX A4500 GPU with 16GB GDDR6 VRAM, supports a PCIe Gen4 x16 interface, optimized for intensive graphics processing and AI computing in industrial environments with a 5-year supply lifecycle.
- Compact MXM 3.1 Type B embedded form factor, 82 x 105 mm
- Long-term 5-year supply lifecycle commitment
- Equipped with an NVIDIA RTX A4500 GA104-955 GPU with 5888 CUDA cores, 184 Tensor cores and 46 RT cores
- 16GB GDDR6 256-bit VRAM with 512 GB/s bandwidth
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Dimensions (mm) | 82 x 105 x 4.8 |
|---|
Computing
| GPU | NVIDIA RTX A4500 GA104-955 |
|---|---|
| CUDA cores | 5888 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| Display outputs | 4× DisplayPort 1.4 |
|---|---|
| Expansion | 1× MXM 3.1 Type B |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (1 items)
| MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
|---|
