MXM-A1000-R10

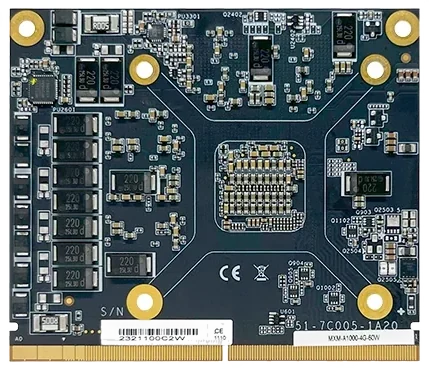

Industrial MXM 3.1 Type A graphics module, 60W power consumption, equipped with an NVIDIA RTX A1000 4GB GDDR6 GPU, with a dedicated Heatsink and Thermal Pad cooling solution for industrial embedded computer systems.
- Ultra-compact MXM 3.1 Type A form factor (82 x 70 mm)
- Industrial cooling solution with an included Heatsink and Thermal Pad kit
- Long-term 5-year product lifecycle availability
- Equipped with 2048 NVIDIA CUDA cores, 64 Tensor Cores and 16 RT Cores
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Dimensions (mm) | 82 x 70 x 4.8 |
|---|
Computing
| GPU | NVIDIA RTX A1000 GA107-950 |
|---|---|
| CUDA cores | 2048 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| Display outputs | 4× DisplayPort |
|---|---|
| Expansion | 1× MXM |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (1 items)
| MXM-HSKA-02 | MXM Type A Heatsink Kit for MXM-A1000, MXM-A2000, and MXM-AD2000 |
|---|
