- -10~60°COperating temp
- Fan-cooledCooling
- 9–36 VDCPower input
- 2COM ports
- 5LAN ports
- 1PCIe slots

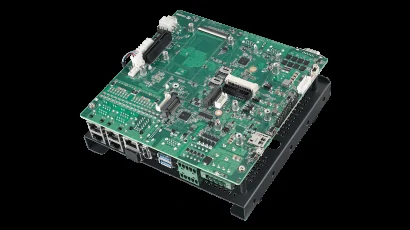

MIC-713S-OX3B2
Open-frame AI solution kit built for reliable operation, -10 to 60°C operating temperature (-10~50°C in MAXN_SUPER mode), wide 9-36 VDC power input, 3 Grms vibration and 10G shock resistance. Equipped with an NVIDIA Jetson Orin NX 8GB, Super mode support with Jetpack 6.2, 5 GbE ports, 6 USB 3.2 Gen 2 ports and Allxon 24/7 remote monitoring.
- Operating temperature range from -10 to 60°C (-10~50°C when running MAXN_SUPER)
- Wide 9 ~ 36 VDC power input
- 3 Grms vibration and 10G shock resistance
- Open-frame solution kit design
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -10 ~ 60 °C (with 0.7 m/s airflow (-10~50°C with MAXN_SUPER)) |
|---|---|
| Power input | 9 ~ 36 VDC |
| Power connector | Terminal Block |
| Mounting | Desktop, DIN rail (optional) |
| Dimensions (mm) | 181.4 x 180 x 81.71 |
| Weight (kg) | 0.75 |
| Vibration resistance | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Certifications | CE, FCC |
Computing
| CPU | NVIDIA Arm Cortex A78AE v8.2 64-bit CPU |
|---|---|
| RAM | LPDDR5 · up to 8GB |
| Storage | NVMe M.2 SSD · Micro SD |
| GPU | NVIDIA Ampere GPU |
| CUDA cores | 1024 |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 5× 10/100/1000 Mbps |
| USB | 6× USB USB 3.2 Gen 2 · 1× USB Micro USB (OTG) |
| DIO | 4 in / 4 out |
| Display outputs | 1× HDMI |
| Expansion | 1× PCIe x4 slot · 1× mPCIe · 1× M.2 3052 · 1× MIPI connector |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (22 items)
| 96PSA-A150W19P4-4 | Power Adapter 100-240V 150W 19V C14 |
|---|---|
| 1702002600 | Power Cord UL 3P 15A 125V C13 183 cm (US) |
| 1702002605 | Power Cord EU 3P 10A 250V C13 183cm (EU) |
| 1702031801 | Power Cord BSI 3P 10A 250V C13 183cm (UK) |
| 1700020098 | Power Cord SAA 3P 10A 250V C13 183cm (AU) |
| 1700029019-01 | Power Cord (PSE/BSMI), 3-pin, 7A, 125V, 1.8 M |
| 1700000596-11 | Power Cord CCC 3P 10A 250V C13 183cm (China) |
| PCA-TPMSPI-00A1 | PCA-TPMSPI-00A1 |
| 1700019968 | COM port cable (2 ports) |
| 1700027920-01 | Audio port cable (1 x Line-In + 1 x Mic) |
| MIC-FG-4G2C1 | 4ch GMSL Video Capture Card |
| 1751000805-01 | RF Cable FAKRA-Z/F FAKRA-Z/F KS302 BLK L15M |
| EWM-W173H01E | Wi-Fi 6+BT 5.0 Module 2.4/5GHz Mini PCIe |
| 1751000626-01 | RF Cable SMA/F-R MHF1/113 BLK L250mm |
| 1751000460-01 | Dipole Ant. WiFi 6E SMA/M-R BLK L111.7mm IP54 (Wi-Fi) |
| AIW-356-DQ | 5G Sub6+GNSS M.2 3052 Key B (by region) |
| 1751000624-01 | Cable Ant. SMA/F MHF4L/113 BLK L250mm (5G) |
| 1750009372-01 | Ant.SMA/M 90/180 5G BLK 167mm RG178 (5G) |
| 1960065854N021 | Bracket for idoor PCM series add-on module |
| 98R27130000 | MIC-713 DIN rail kit |
| 98RV710AL00 | Allxon OOB module (By optional chassis) |
| 98917330010 | MIC-733 PoE Board with package 96917330010 |
