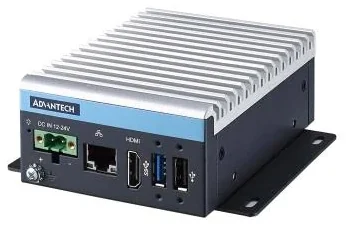

MIC-710AILX-00B2
Hệ thống AI Inference công nghiệp siêu nhỏ gọn, thiết kế không quạt, dải nhiệt hoạt động từ -10°C đến 60°C, hỗ trợ nguồn 12~24 VDC và chịu rung xóc tốt. Thiết bị trang bị NVIDIA Jetson Xavier NX cho hiệu năng tính toán AI lên đến 21 TOPS, bộ nhớ eMMC 16GB (không bao gồm khe Micro SD).
- Thiết kế không quạt (fanless) và siêu nhỏ gọn (85 x 118 x 45 mm)
- Khả năng chịu đựng môi trường khắc nghiệt: nhiệt độ -10 ~ 60 °C, chống rung 3 Grms, chống sốc 10G
- Nguồn điện công nghiệp 12 ~ 24 VDC kết nối qua Terminal block 2-pin
- Lắp đặt linh hoạt: Desktop, Wall mount, DIN-rail
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -10 ~ 60 °C (with 0.7 m/s air flow) |
|---|---|
| Power input | 12 ~ 24 VDC |
| Power connector | Terminal block, 2-pin |
| Mounting | Desktop, Wall mount, DIN-rail |
| Dimensions (mm) | 85 x 118 x 45 |
| Weight (kg) | 1.2 |
| Vibration resistance | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Certifications | CB, UL, CE, FCC, BSMI, CCC |
Computing
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU |
|---|---|
| RAM | LPDDR4 · up to 8GB |
| Storage | 1× eMMC · 1× M.2 2280 M-Key (NVMe, PCIe x4) |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CUDA cores | 384 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× 10/100/1000 Mbps |
|---|---|
| USB | 1× USB USB 3.2 Gen 1 · 1× USB USB 2.0 (External) · 1× USB USB 2.0 (Internal by pin header) · 1× USB Micro USB (OTG) |
| Display outputs | 1× HDMI |
| Expansion | 1× mPCIe · 1× Nano SIM |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (12 items)
| 96PSA-A65W19P2-1 | Power Adapter 100-240V 65W 19V |
|---|---|
| 1700001524 | Power Cord UL 3P 10A 125V 183cm (US) |
| 170203183C | Power Cord EU 3P 2.5A 250V 183cm (EU) |
| 170203180A | Power Cord BSI 3P 2.5A 250V 183cm (UK) |
| 1702031836 | Power Cord SAA 3P 10A 250V 183cm (AU) |
| 1700008921 | Power Cord PSE 3P 7A 125V 183cm (Japan) |
| 1700019146 | Power Cord CCC 3P 2.5A 250V 183cm (China) |
| 98R1750020E | DIN-rail bracket |
| 1960099299N100 | Mini PCIe HEATSPREADER FOR MIC-710AIL |
| 1990021546N000 | Thermal-Pad for Mini PCIe |
| 1960099300N100 | M.2 HEATSPREADER FOR MIC-710AIL |
| 1990019659S000 | Thermal Pad for M.2 |
