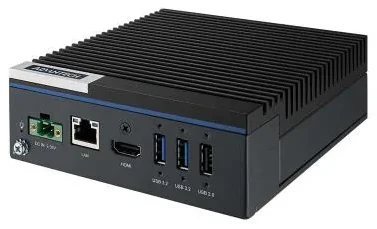

MIC-711-OX4A1
Fanless, ultra-compact industrial AI inference system operating at -10 to 60°C, 9~36 VDC input voltage, equipped with an NVIDIA Jetson Orin NX 16GB RAM module and a built-in 128GB NVMe SSD.
- Fanless, ultra-compact industrial design
- Wide -10 to 60°C operating temperature range
- Wide 9 to 36 VDC DC power input
- 3 Grms vibration and 10G shock resistance
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -10 ~ 60 °C (0.7 m/s air flow) |
|---|---|
| Power input | 9 ~ 36 VDC |
| Power connector | Terminal block, 2-pin |
| Mounting | Desktop, Wall mount |
| Dimensions (mm) | 130 x 130 x 46 |
| Weight (kg) | 1.2 |
| Vibration resistance | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Certifications | CB, UL, CE, FCC, BSMI, CCC |
Computing
| CPU | NVIDIA Arm Cortex A78AE v8.2 (8-core) |
|---|---|
| RAM | LPDDR5 · up to 16GB |
| Storage | NVMe M.2 2280 (M-Key, PCIe x4) · Micro SD |
| GPU | NVIDIA Ampere GPU (1024-core with 32 Tensor Cores) |
| CUDA cores | 1024 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× 10/100/1000 Mbps |
|---|---|
| USB | 2× USB USB 3.2 Gen 1 · 1× USB USB 2.0 · 1× USB USB 2.0 (internal pin header) · 1× USB Micro USB OTG |
| Display outputs | 1× HDMI |
| Expansion | 1× mPCIe · 1× M.2 3052 B-Key · 2× Nano SIM |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (12 items)
| 96PSA-A65W19P2-1 | Power Adapter 100-240V 65W 19V |
|---|---|
| 1700001524 | Power Cord UL 3P 10A 125V 183 cm (US) |
| 170203183C | Power Cord EU 3P 2.5A 250V 183 cm (EU) |
| 170203180A | Power Cord BSI 3P 2.5A 250V 183 cm (UK) |
| 1702031836 | Power Cord SAA 3P 10A 250V 183 cm (AU) |
| 1700008921 | Power Cord PSE 3P 7A 125V 183 cm (Japan) |
| 1700019146 | Power Cord CCC 3P 2.5A 250V 183 cm (China) |
| 98RV710AL00 | Allxon OOB module (By adding Expansion kit) |
| 98R2711AL00 | Allxon Bolt OOB module (By adding Expansion kit) |
| 98RVC711002 | Expansion kit_4ch GMSL_iDoor |
| 98RVC711010 | MIC-711 DIN rail kit |
| MIC-FG-4G2C1 | 4ch GMSL SW video card (By adding Expansion kit) |
