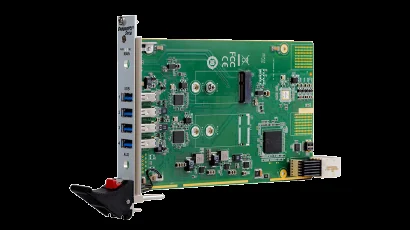

3U CPCI-S 4 x USB typeA, 2 x M.2 E key carrier board
  • -40~70°COperating temp
  • Fan-cooledCooling
Download datasheet →
Module & expansion Advantech MIC-3000 · CompactPCI blade

MIC-3954F-A1S1

The MIC-3954F-A1S1 is a 3U CompactPCI Serial expansion board operating in a harsh -40°C to 70°C temperature range, meeting the EN50155, EN50121-3-2, EN50121-4 railway standards and industrial vibration/shock resistance. It is equipped with 4 front-panel USB 3.0 Type A ports and supports up to 2 M.2 E key slots for WiFi/storage connectivity.

  • Complies with EN50155, EN50121-3-2, EN50121-4 industrial and railway standards
  • Operates across a wide -40°C to 70°C temperature range, withstands 2 Grms vibration and 10 G shock
  • CompactPCI Serial interface (CPCI-S.0 R 2.0), 3U 4HP form factor
  • 4 front-panel USB 3.0 Type A ports

Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.

Or leave your phone number — an engineer will quote model MIC-3954F-A1S1 within 4 working hours.

Industrial factors

Operating temperature range-40 ~ 70 °C (depends on M.2 module)
Power connectorPCIe Gen 2 x4 from backplane P1
MountingCompactPCI Serial peripheral slot
Dimensions (mm)160 x 100
Vibration resistance2 Grms, random (5 Hz ~ 500 Hz)
CertificationsEN50155, EN50121-3-2, EN50121-4, PICMG CompactPCI Serial (CPCI-S.0 R 2.0), RoHS

Computing

PCI/PCIe expansion slots0

Connectivity & I/O

USB4× USB USB 3.0
Expansion2× M.2 E key

Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.

We only use this number to answer your request.

Optional accessories & modules (5 items)

MIC-330 Series3U CPCI-Serial Intel 9th Gen. Processor board
MIC-330V2 Series3U CPCI-Serial Intel 11th Gen. Processor board
MIC-300A series3U CPCI-Serial 84HP/44HP width, 3U/4U height chassis, with 8 slots backplane & mini fan
MIC-38903U CPCI-Serial DC-DC power module, 110V in/12V&5V output, 250W
XMIC330-HAC300S3U CPCI-Serial AC-DC power module, 12V&5V output, 300W
