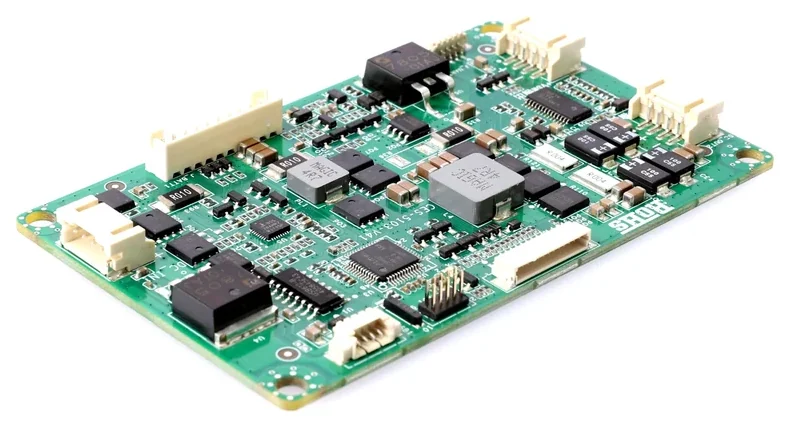

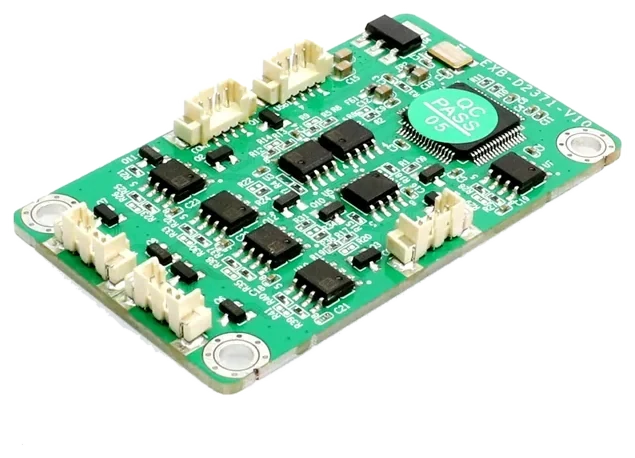

EXB-D2371-V10
Expansion board in CESIPC's LEGO Mode family, adding 4 high-speed switchable RS485/422 COM ports and 1 USB port, screw-mounted onto the L200 frame, -10°C to +60°C operating range.
- LEGO Mode modular assembly technology
- 4 high-speed switchable RS485/422 COM ports
- Adds 1 more USB port
- Compact 60x35mm size, screw-mounted
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 60 °C |
|---|---|
| Power input | 5V DC |
| Power connector | from motherboard pin |
| Mounting | Screw Holes |

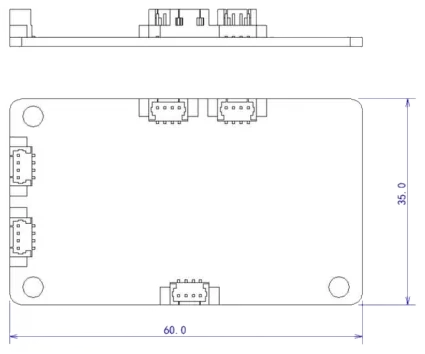

| Dimensions (mm) | 60x35 |
Connectivity & I/O
| COM | 4× RS485/RS422 switchable, high speed |
|---|---|
| USB | 1× USB |
| Expansion | Serial+USB expansion |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Other configurations in the LEGO-EXB · LEGO-series board series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
See the whole LEGO-EXB · LEGO-series board series and compare configurations →
