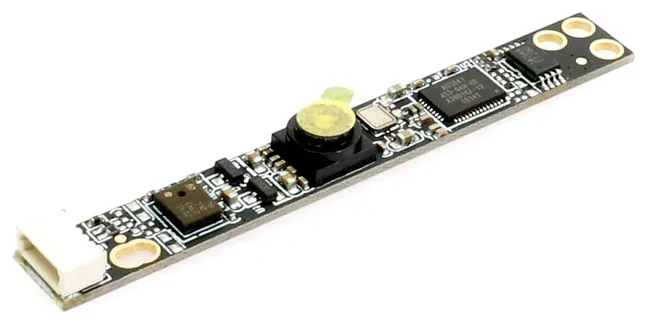

EXB-CA01
Camera module in the LEGO family, withstands -10~60°C operating range, powered by 5V DC from the mainboard, adhesive-mounted so no drilling is required during installation. Supports 2-megapixel (720P) resolution, a standard ~65° field of view or a wide-angle version up to 110°, YUV/RGB (YUY2) output.
- 2-megapixel (720P) resolution, standard ~65° field of view or 110° wide-angle
- 15/30fps frame rate at VGA resolution, up to 1600x1200 output
- 24-pin ribbon cable output, 0.65mm pitch, YUV/RGB YUY2 standard
- Operating range -10~60°C, adhesive mounting
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 60 °C |
|---|---|
| Power connector | Motherboard Pin |
Connectivity & I/O
| Expansion | 1× Camera |
|---|
