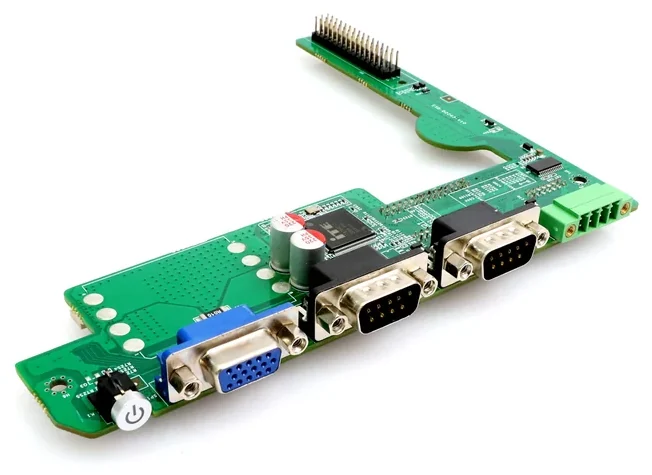

EXB-D2243-V10
Expansion board in CESIPC's LEGO Mode family, integrating 2 serial ports, 1 VGA port, a power button and a pull-out switch interface, compatible with the CES-3802 mainboard, -10°C to +60°C operating range.
- LEGO Mode modular assembly technology
- 2 serial ports, 1 VGA port
- Integrated power button and pull-out switch
- Compatible with the CES-3802 mainboard
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 60 °C |
|---|---|
| Power input | 5V DC |
| Power connector | from motherboard pin |
| Mounting | Screw Holes |
| Dimensions (mm) | 164x140.5 |
Connectivity & I/O
| COM | 2× Serial |
|---|---|
| Display outputs | 1× VGA |
| Expansion | Serial+VGA+Switch |
