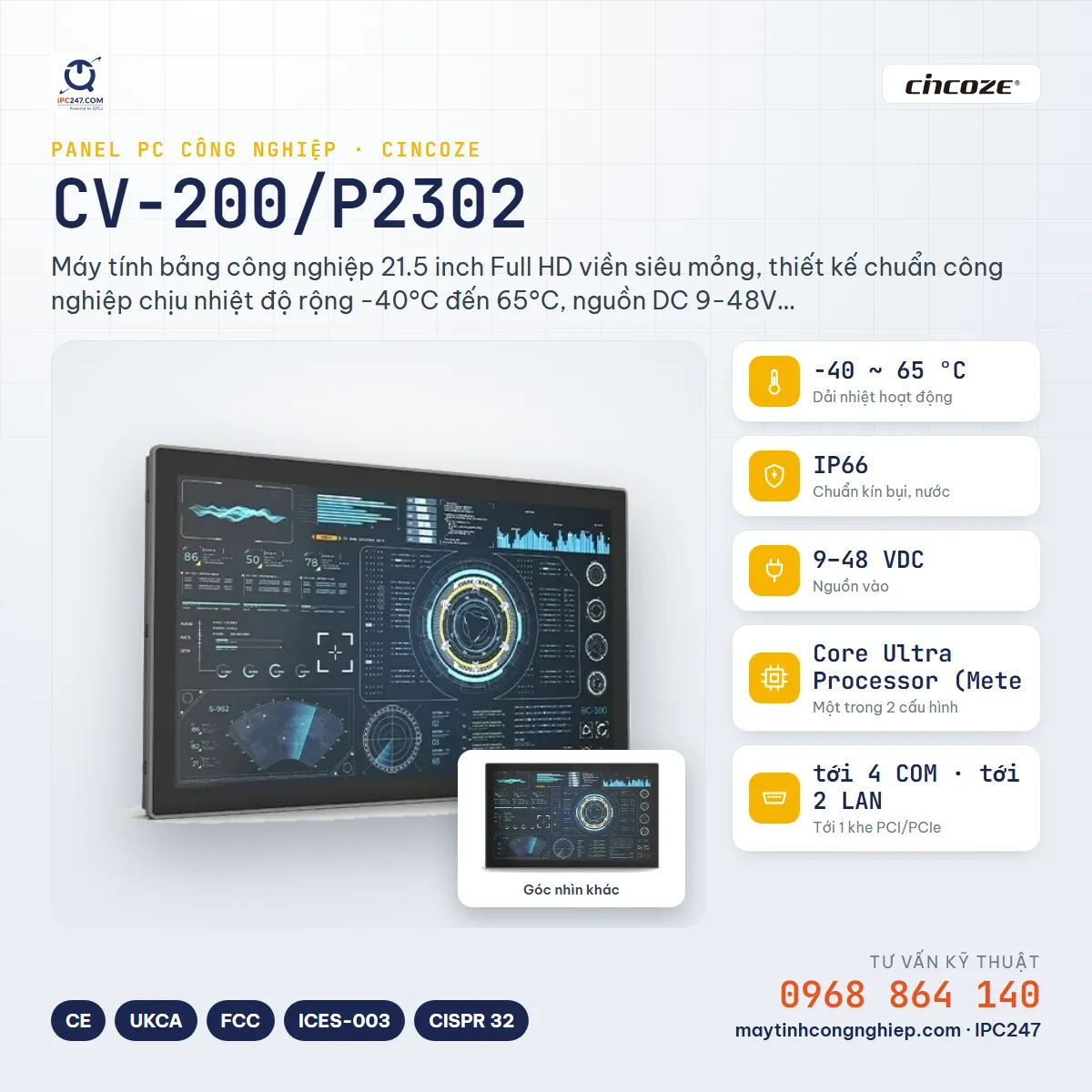

MaytinhcongnghiepCV-200/P2302
One series, 2 configurations.

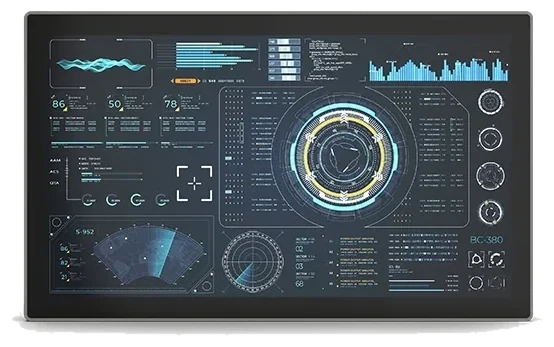

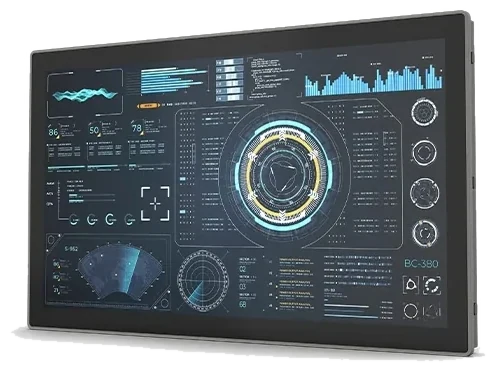

Display and computer in one unit, mounted straight onto the cabinet face.
Sealed frame with bezel, fastened from behind the cabinet face. The most common mounting for HMIs on electrical cabinets.
True for every configuration in the series
The items below stay the same whichever configuration you pick — no need to re-check after choosing.
- Operating temperature range
- -40 ~ 65 °C
- DC power input
- 9–48 VDC
- IP protection rating
- IP66 (MẶT TRƯỚC)
- Resolution
- 1920x1080
- Display brightness
- 300 nit
- COM ports
- 4 ports
- LAN ports
- 2 ports
- Power over Ethernet
- No PoE
- Digital I/O (DIO)
- Yes
- Cooling
- Fan-cooled
- Touch screen
- Capacitive
Choose a configuration
Filter quickly, then click a model number for the full specs. Not sure which one, send us your installation conditions and our engineers will pick for you.
| Select for comparison | Model number | Screen size | Resolution | Brightness | Touch | CPU | Temp. range | IP rating | Cooling | DC input | Ports | PoE · DIO | Reference price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV-221C-R10/P2302-R10 | 21.5″ | 1920x1080 | 300 nit | Capacitive | Core Ultra Processor (Meteor Lake-PS) | -40~65°C | IP66 (MẶT TRƯỚC) | Fan-cooled | 9–48 VDC | 4 COM · 2 LAN | DIO | ||
| CV-221C-R10/P2302E-R10 | 21.5″ | 1920x1080 | 300 nit | Capacitive | Core Ultra Processor (Meteor Lake-PS) | -40~65°C | IP66 (MẶT TRƯỚC) | Fan-cooled | 9–48 VDC | 4 COM · 2 LAN · 1 PCIe | DIO |
No configuration matches these filters. Remove a condition, or ask an engineer — the version you need may be orderable even if it is not on the site.
Tick 2–3 configurations in the first column to put them side by side — the comparison page highlights exactly the cells that differ, so you don’t have to scan every row.
Not sure which configuration fits?
Describe the installation site — temperature, vibration, power supply, devices to connect — and IPC247 engineers will build a complete configuration for those conditions.
