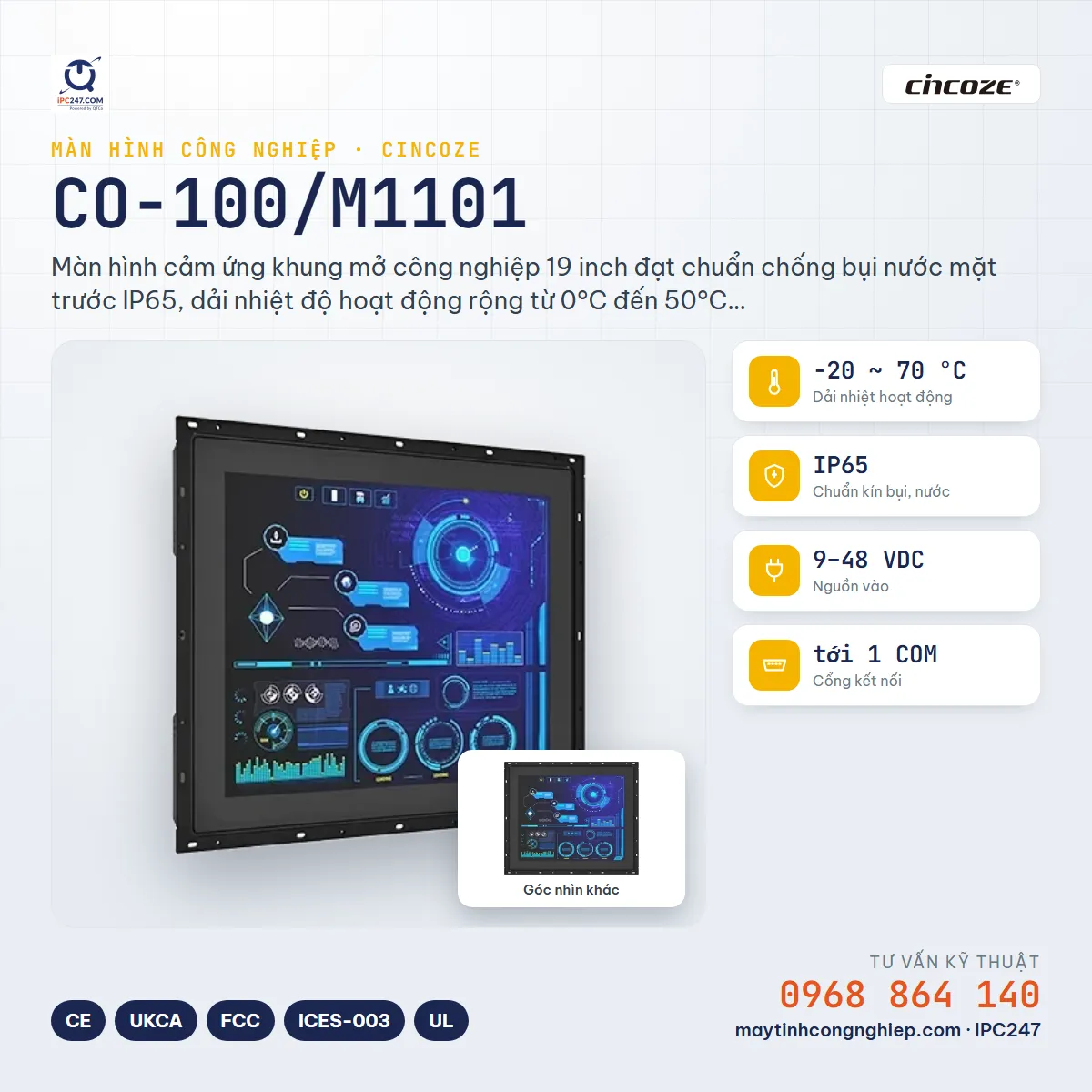

MaytinhcongnghiepCO-100/M1101
One series, 3 configurations. The configurations differ in 3 screen sizes — everything else is identical.
Display only — no computer inside; the video signal must come from another machine.

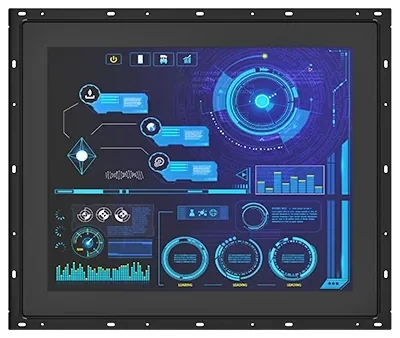

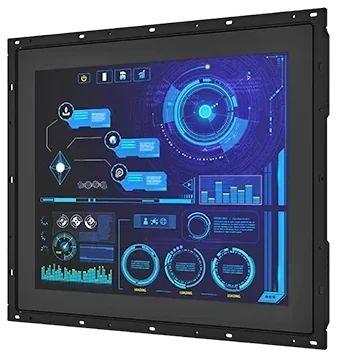

Open frame, no finished bezel. For embedding into another device’s enclosure where you make the outer face yourself.
- -20~70°COperating temp
- IP65Ingress rating
- 9–48 VDCPower input
- up to 1COM ports
True for every configuration in the series
The items below stay the same whichever configuration you pick — no need to re-check after choosing.
- DC power input
- 9–48 VDC
- COM ports
- 1 ports
- Power over Ethernet
- No PoE
- Digital I/O (DIO)
- No
- Cooling
- Fan-cooled
- Touch screen
- Capacitive
Choose a configuration
Filter quickly, then click a model number for the full specs. Not sure which one, send us your installation conditions and our engineers will pick for you.
Showing 3 / 3 configurations
| Select for comparison | Model number | Display | CPU | Environment | Ports · I/O | Reference price |
|---|---|---|---|---|---|---|
| CO-119C-R10/ | 19″ · 1280 x 1024 350 nit · Capacitive | — | 0~50°C · FRONT PANEL IP65 Fan-cooled · 9–48 VDC | 1 COM — | ||
| CO-W121C-R10/ | 21.5″ · 1920 x 1080 300 nit · Capacitive | — | 0~60°C · IP65 FRONT PANEL Fan-cooled · 9–48 VDC | 1 COM — | ||
| CO-W124C-R10/ | 24″ · 1920 x 1080 300 nit · Capacitive | — | -20~70°C · IP65 FRONT PANEL Fan-cooled · 9–48 VDC | 1 COM — |
No configuration matches these filters. Remove a condition, or ask an engineer — the version you need may be orderable even if it is not on the site.
Tick 2–3 configurations in the first column to put them side by side — the comparison page highlights exactly the cells that differ, so you don’t have to scan every row.
Not sure which configuration fits?
Describe the installation site — temperature, vibration, power supply, devices to connect — and IPC247 engineers will build a complete configuration for those conditions.
